Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

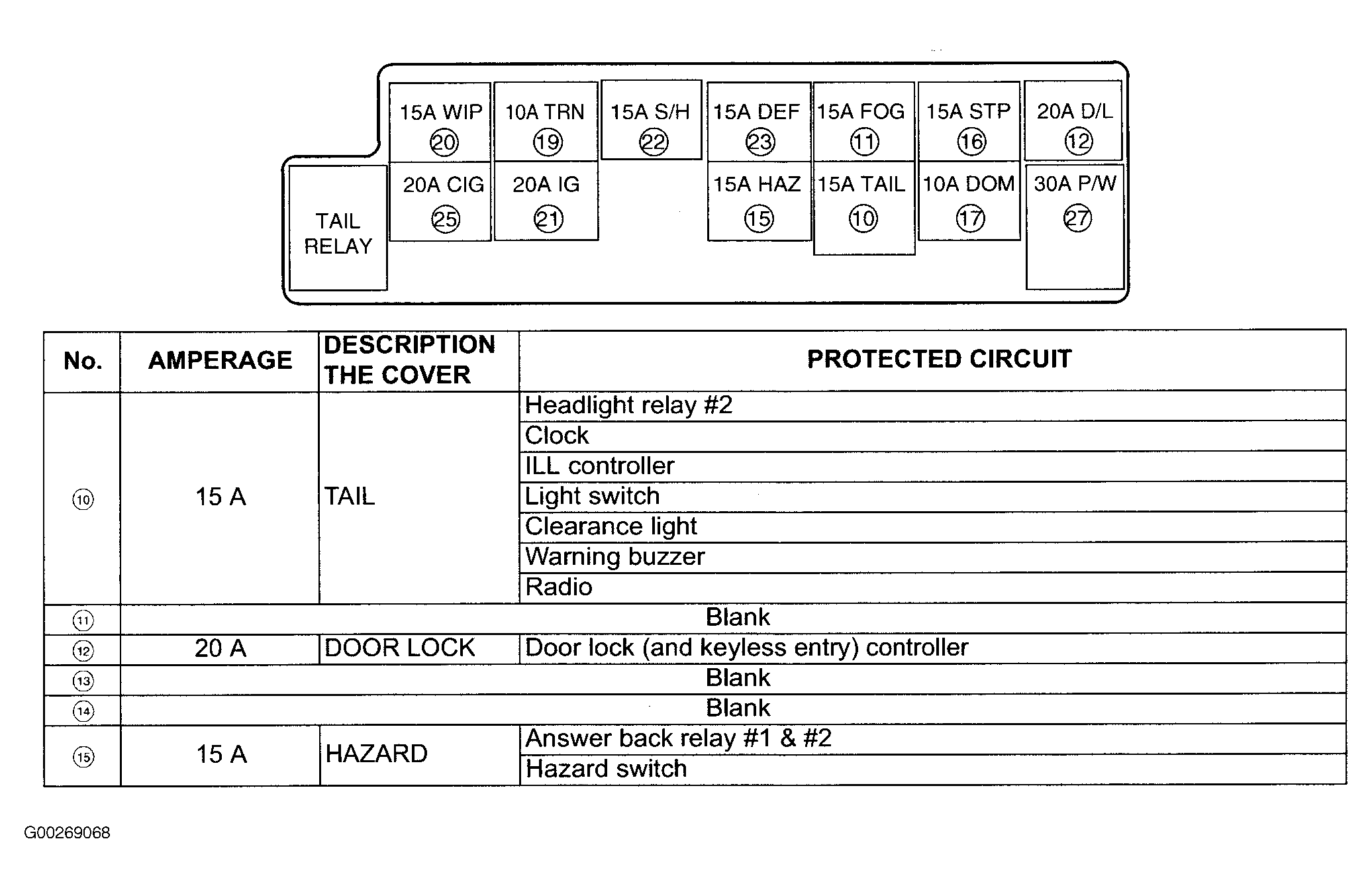

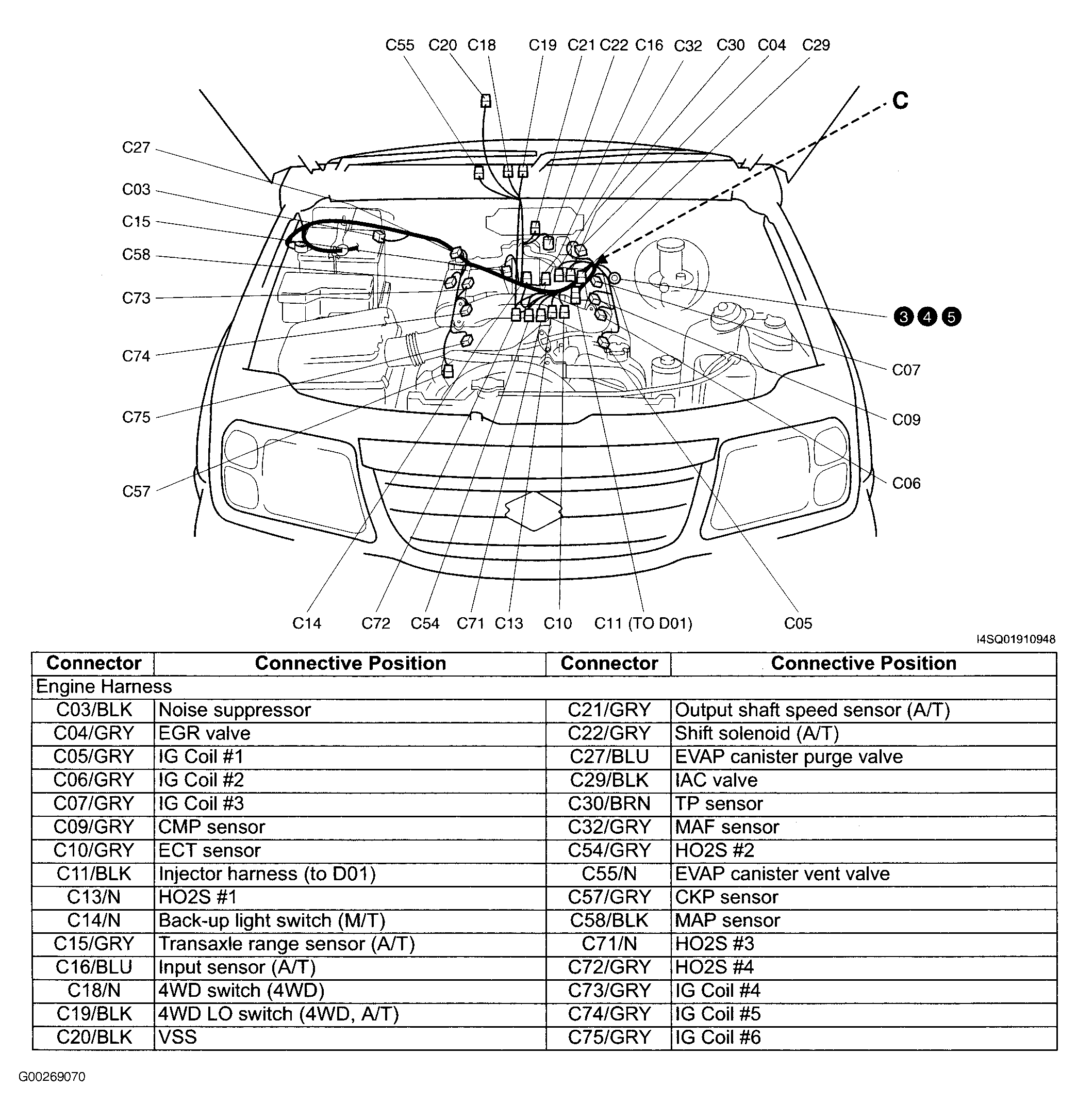

Fig 1: Individual Circuit Fuse Box

Courtesy of SUZUKI OF AMERICA CORP.

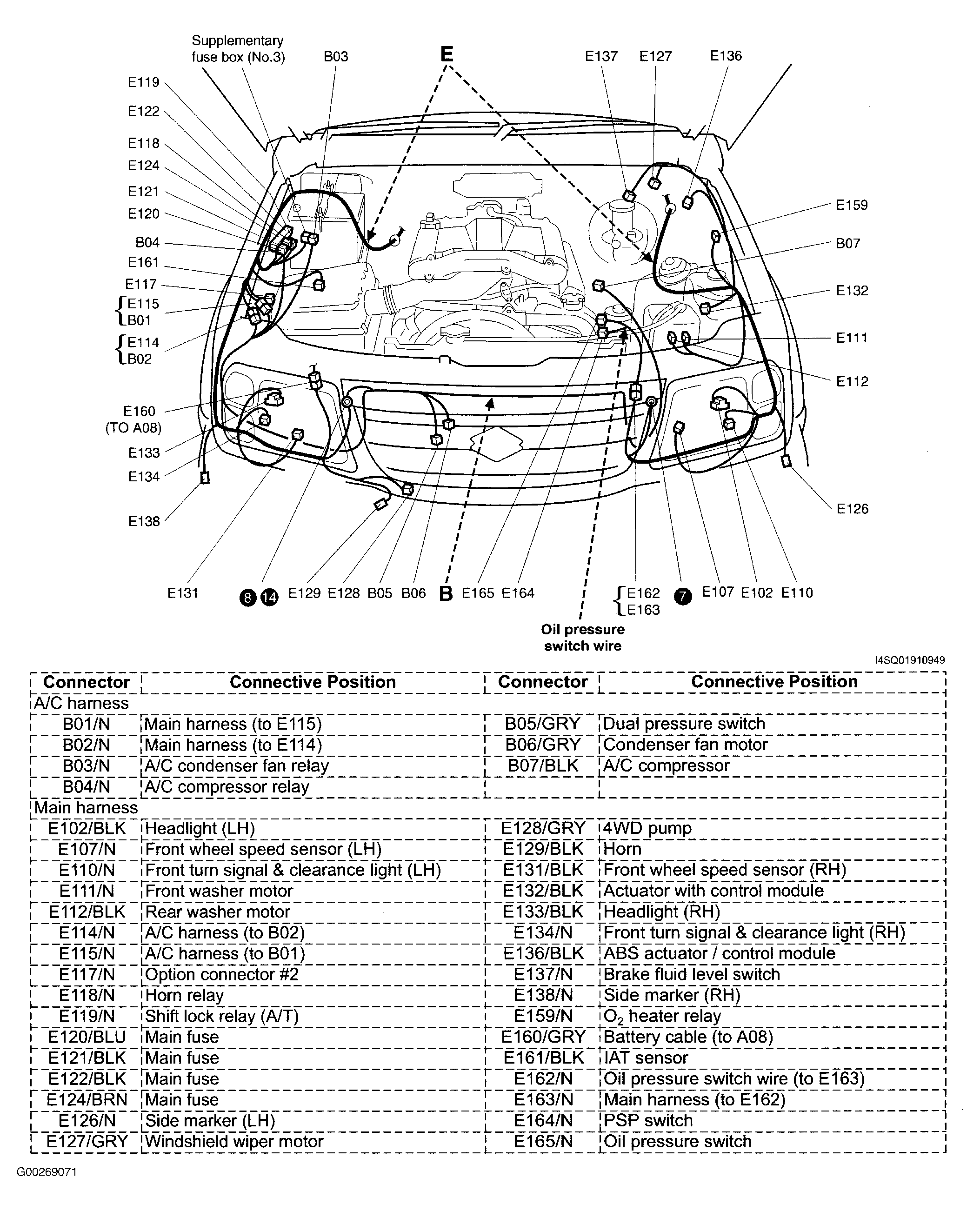

Fig 2: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

Fig 4: Engine Compartment

Courtesy of SUZUKI OF AMERICA CORP.

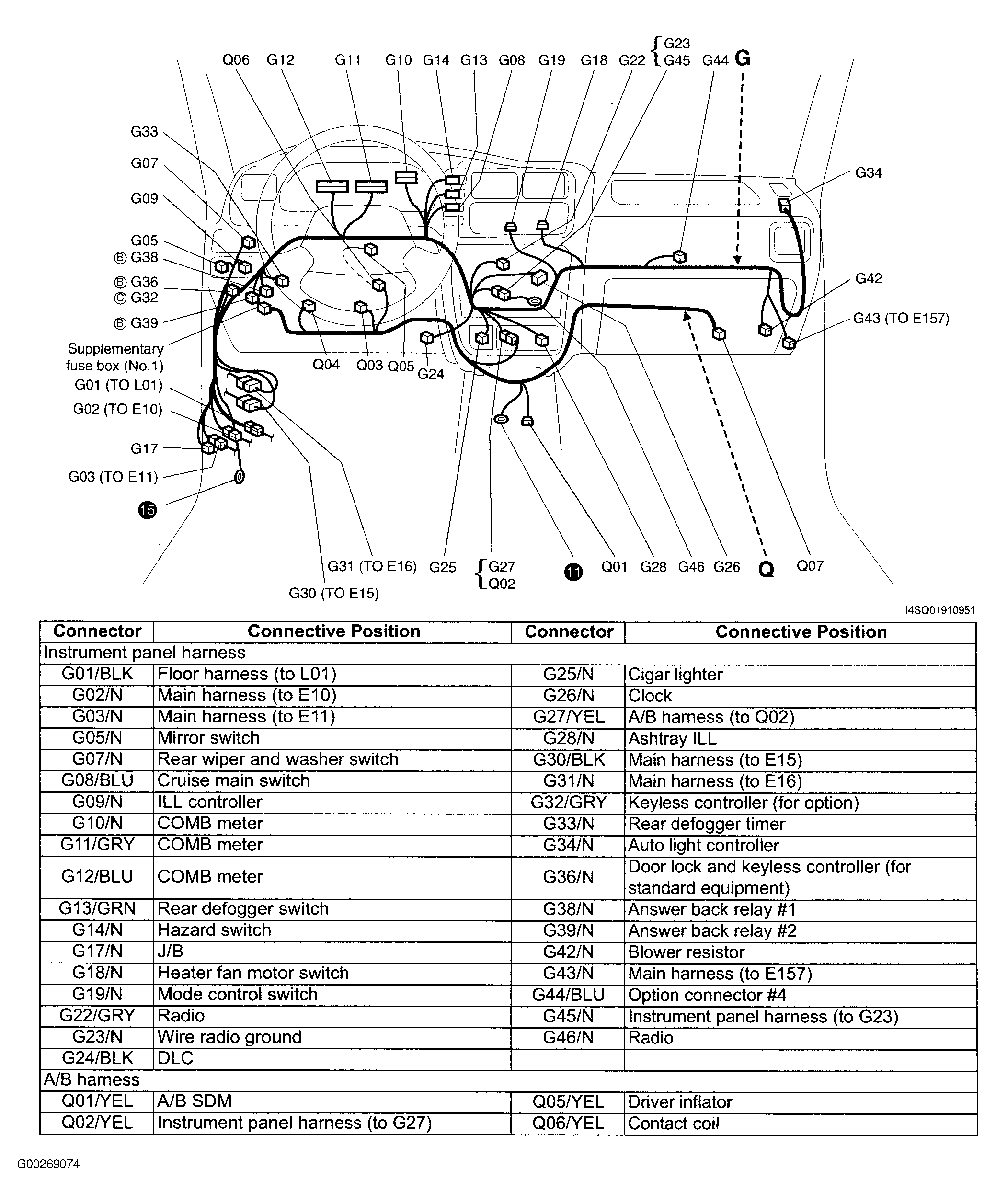

Fig 5: Dash

Courtesy of SUZUKI OF AMERICA CORP.

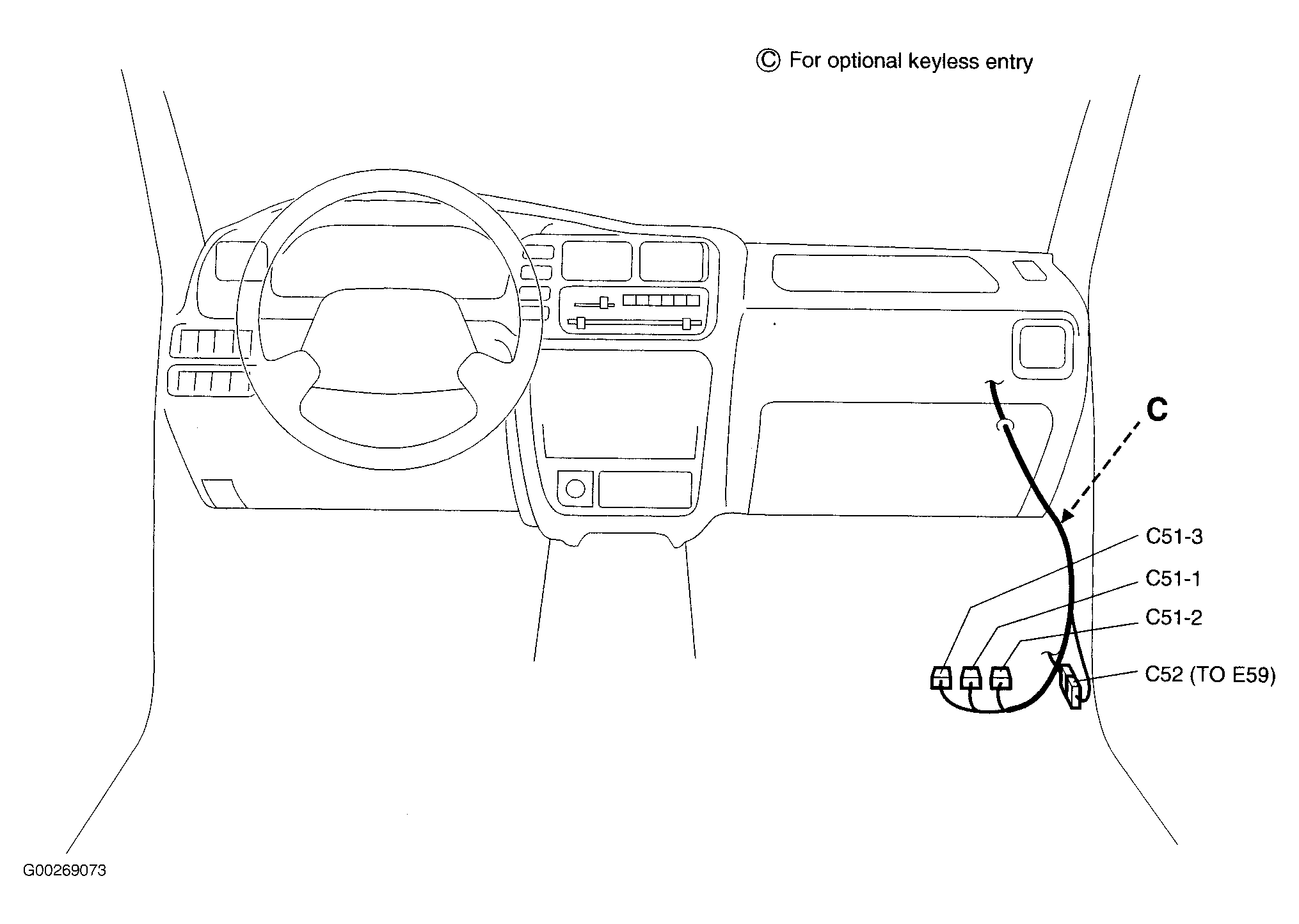

Fig 6: Dash

Courtesy of SUZUKI OF AMERICA CORP.

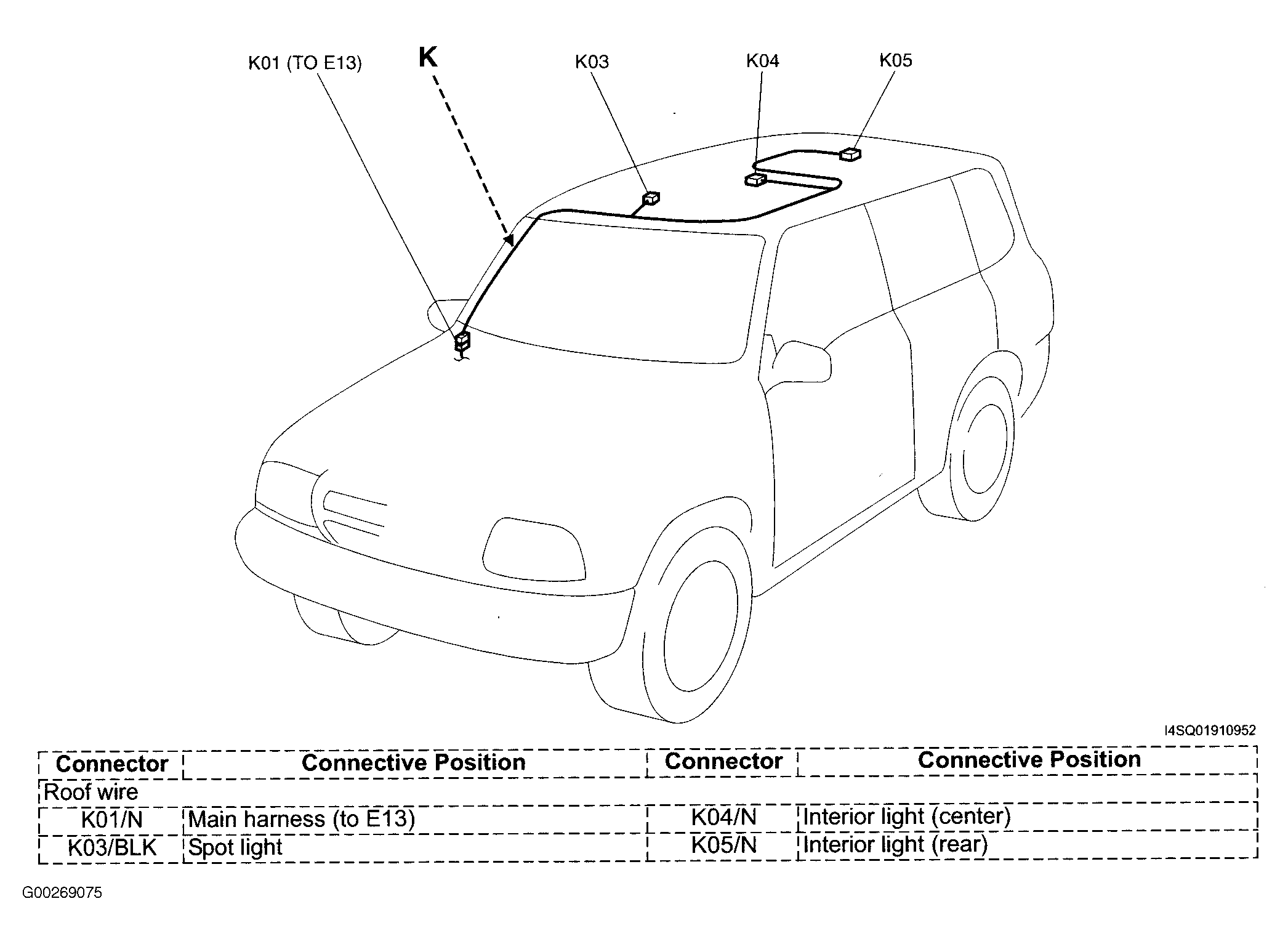

Fig 7: Roof

Courtesy of SUZUKI OF AMERICA CORP.

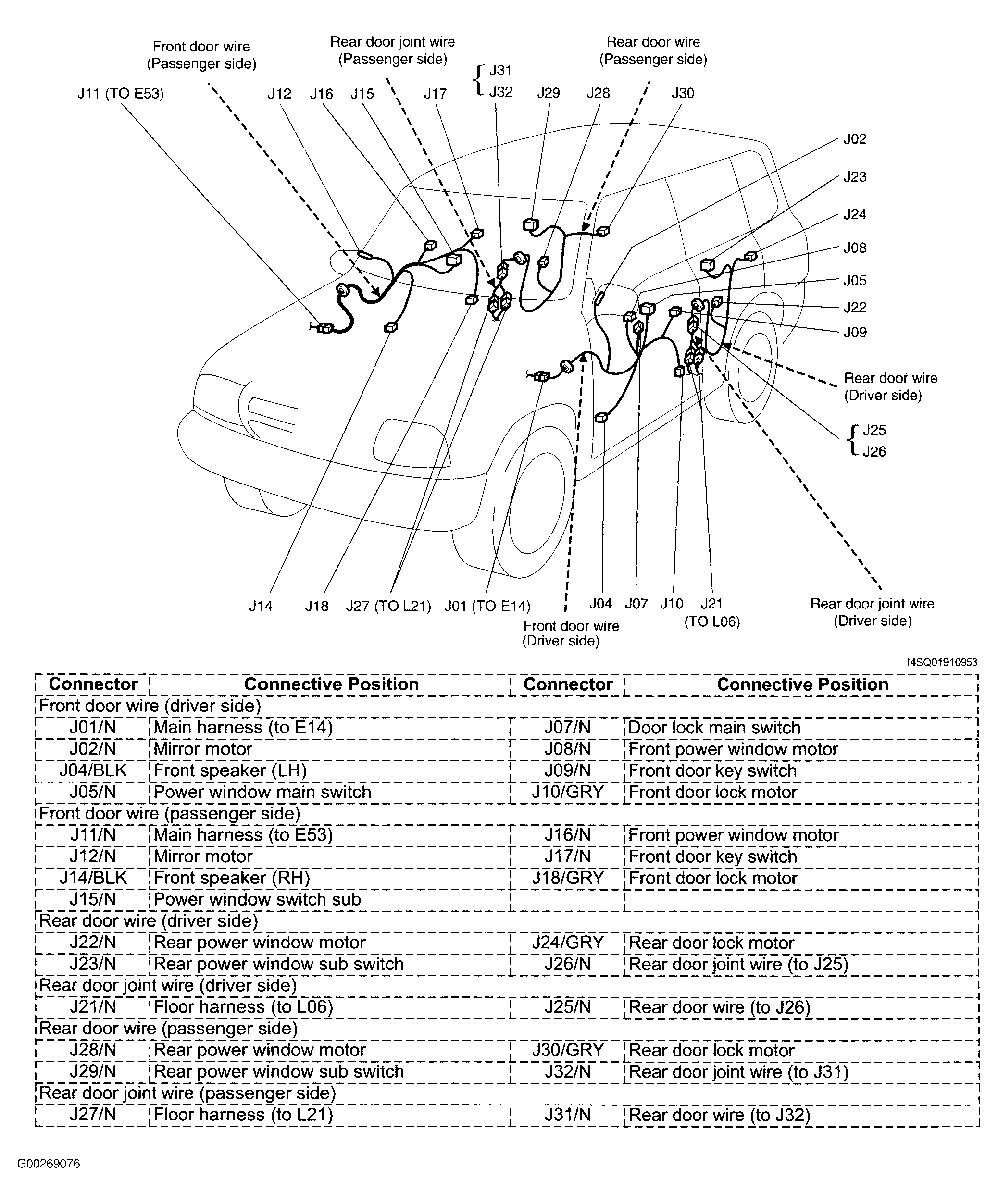

Fig 8: Doors

Courtesy of SUZUKI OF AMERICA CORP.

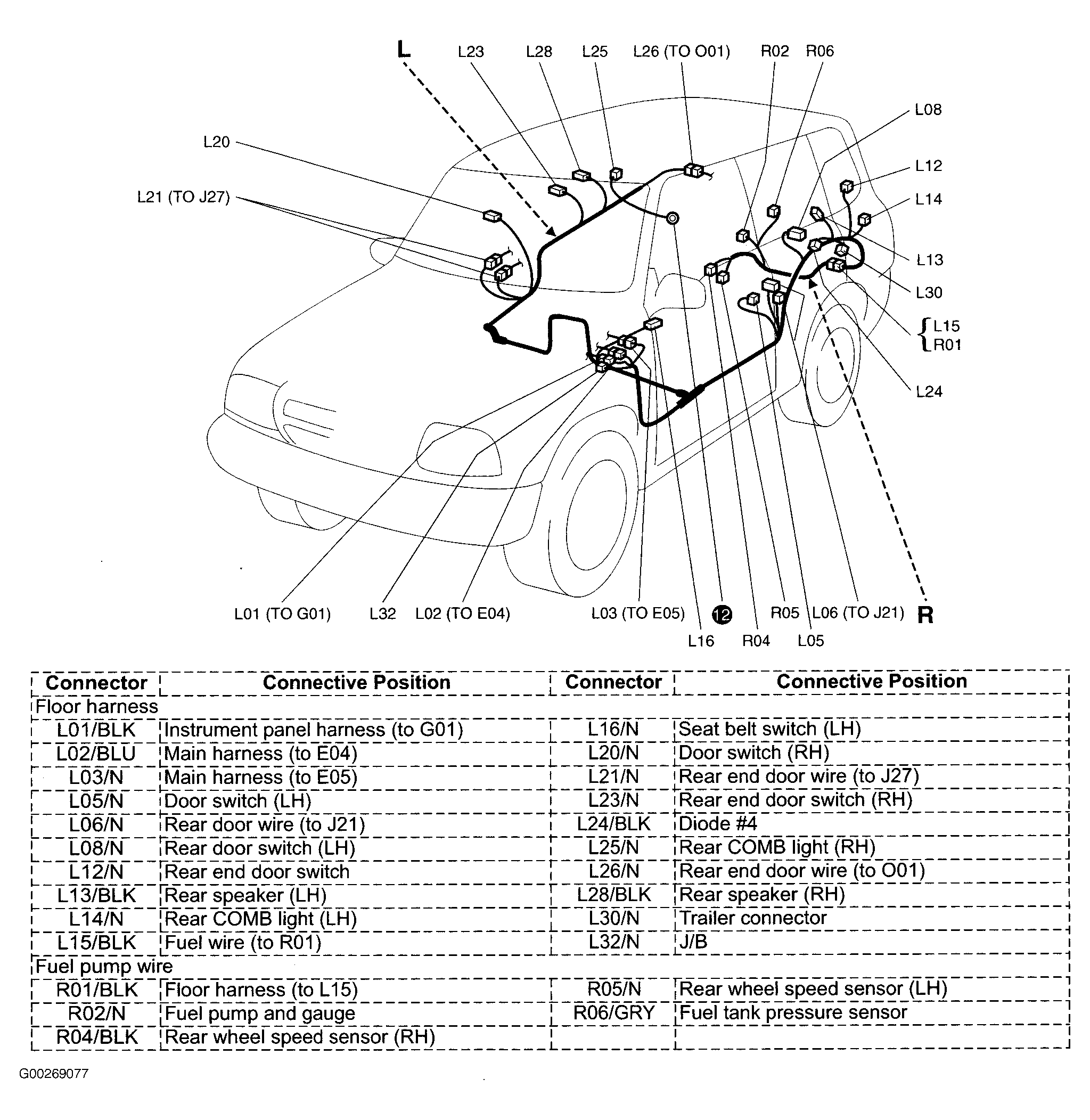

Fig 9: Body

Courtesy of SUZUKI OF AMERICA CORP.

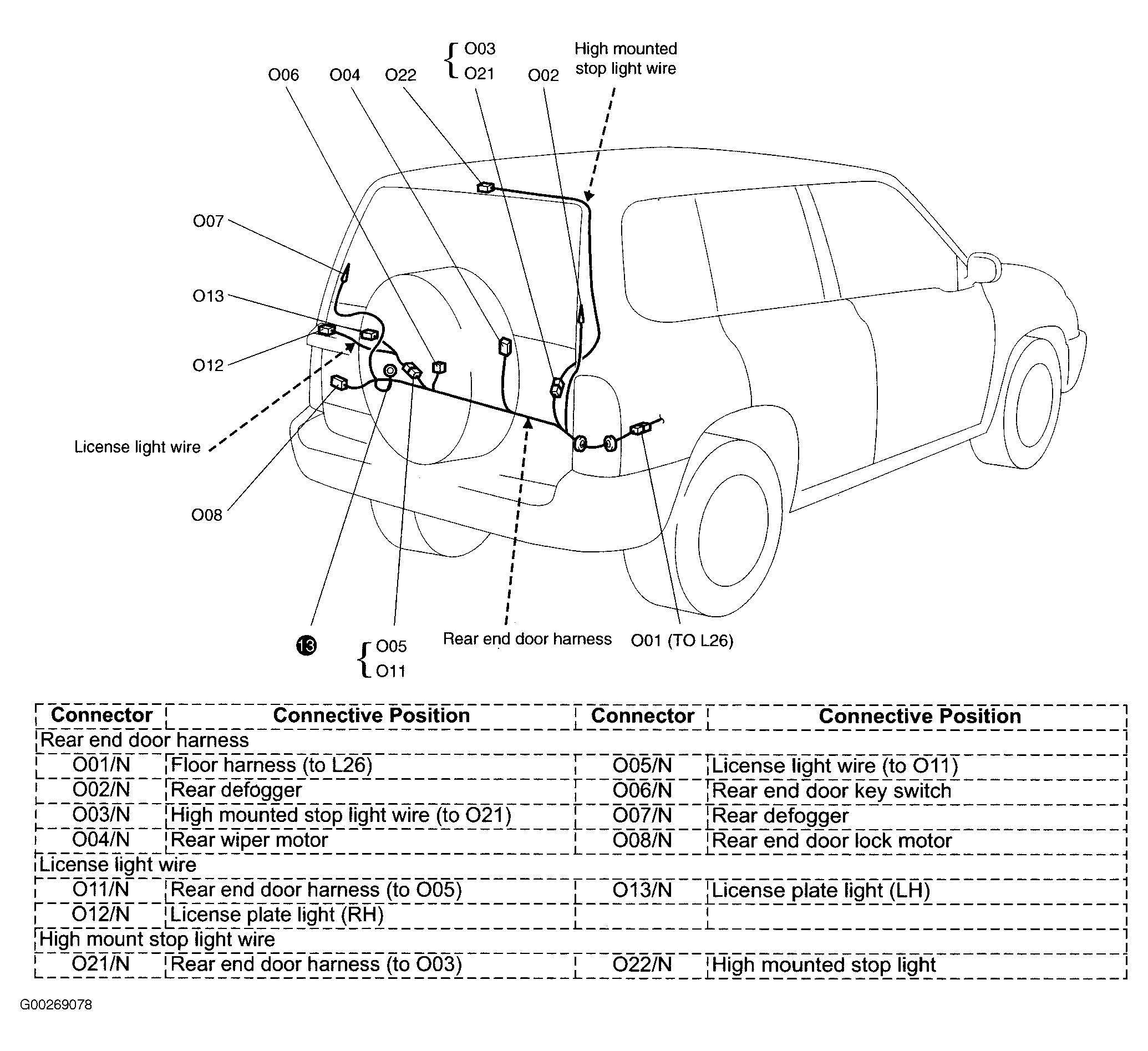

Fig 10: Rear

Courtesy of SUZUKI OF AMERICA CORP.

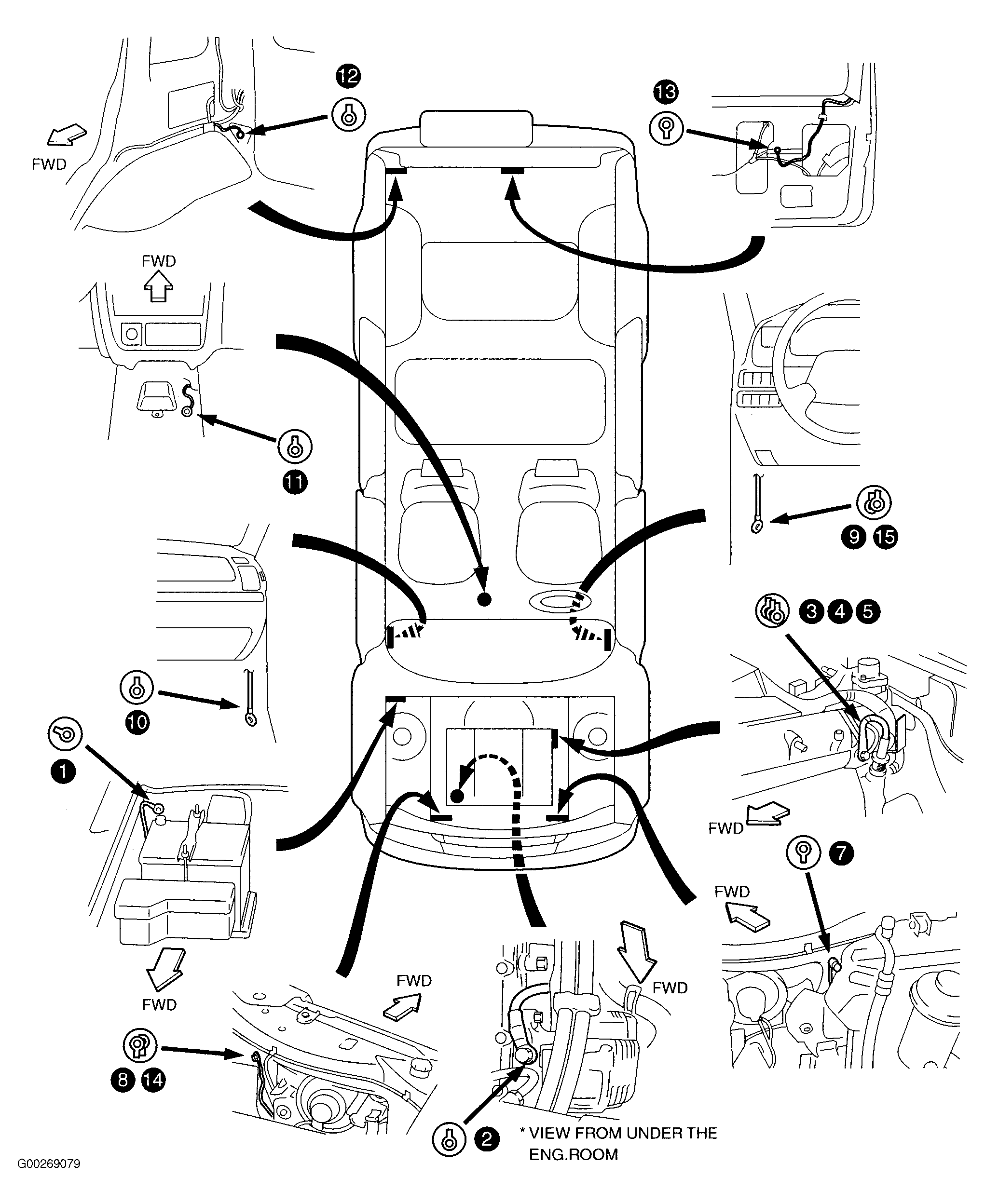

Fig 11: Grounds

Courtesy of SUZUKI OF AMERICA CORP.

Fig 12: Right Side Of Dash

Courtesy of SUZUKI OF AMERICA CORP.
