Home >> Suzuki >> 2004 >> Vitara RWD, Automatic >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System >> Specifications >> Tightening Torque Specifications >> Notes

Tightening Torque Specifications: Notes

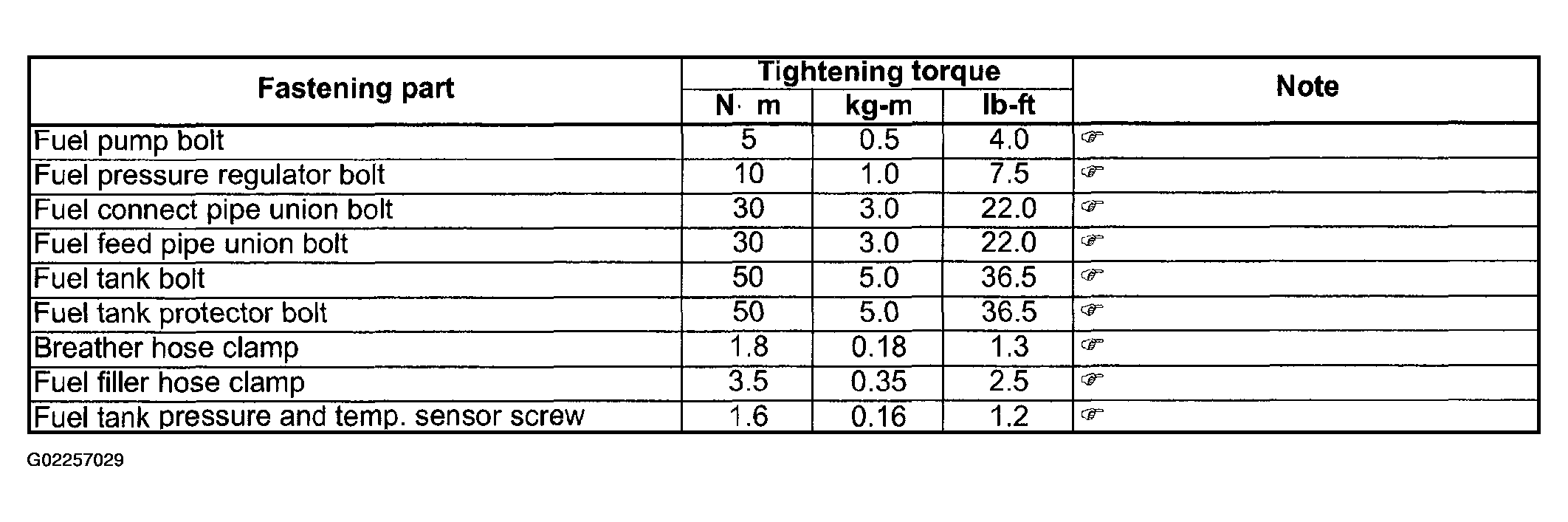

Fig 1: Tightening Torque Specifications Chart
G02257029Courtesy of SUZUKI OF AMERICA CORP.
NOTE: The specified tightening torque is also described in the following. "Fuel System Components: "
