Ignition Timing Control at Engine Start (Initial Ignition Timing)

To obtain better starting performance of the engine at the engine start (when the engine speed is lower than 500 r/min.), ignition control system sets the ignition timing to the initial ignition timing (5°BTDC.)

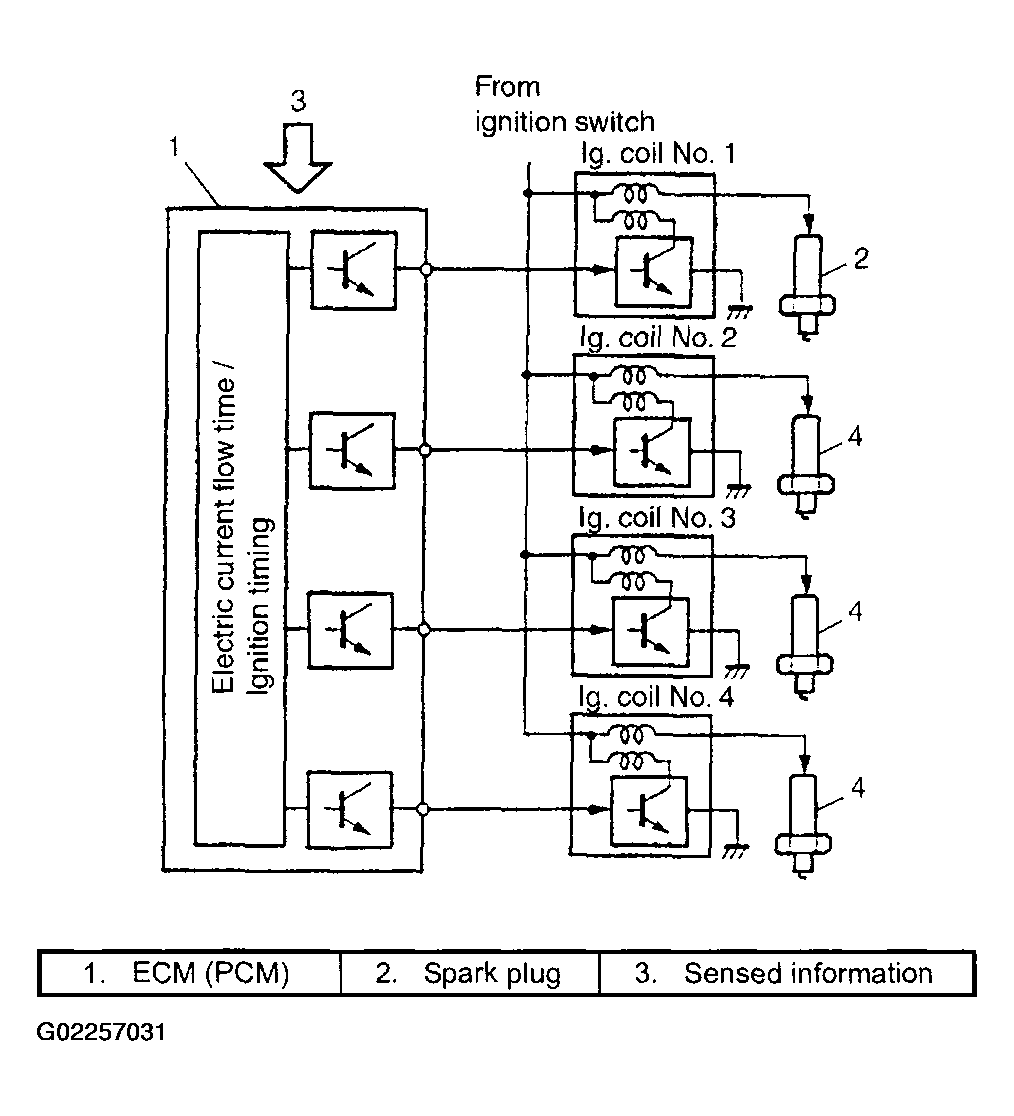

Fig 1: Identifying Ignition Control System Circuit Diagram

Courtesy of SUZUKI OF AMERICA CORP.
