Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

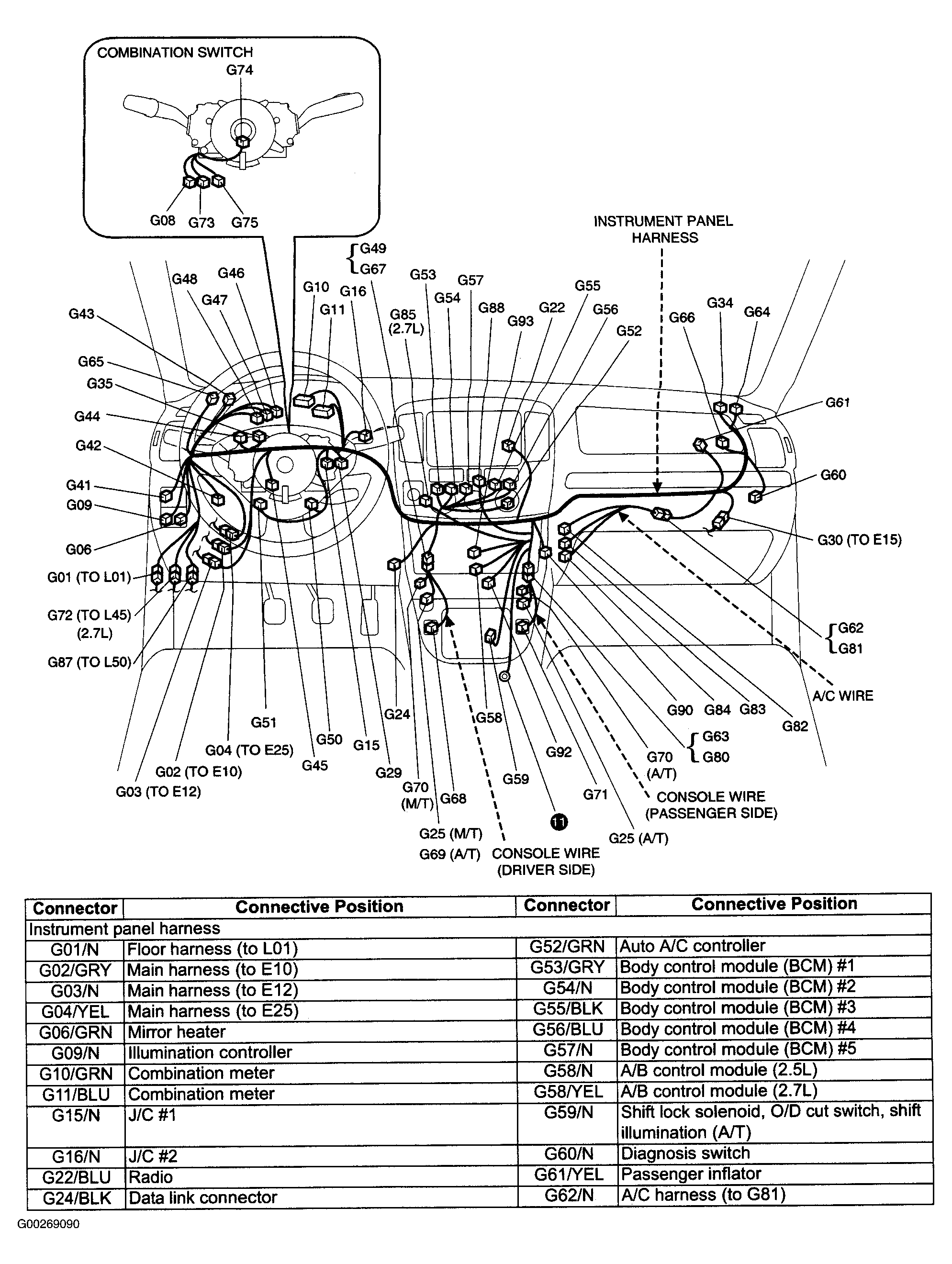

| AB Control Module (2.5L) | Behind lower center of dash. See Figure . |
| AB Control Module (2.7L) | Behind lower center of dash. See Figure . |

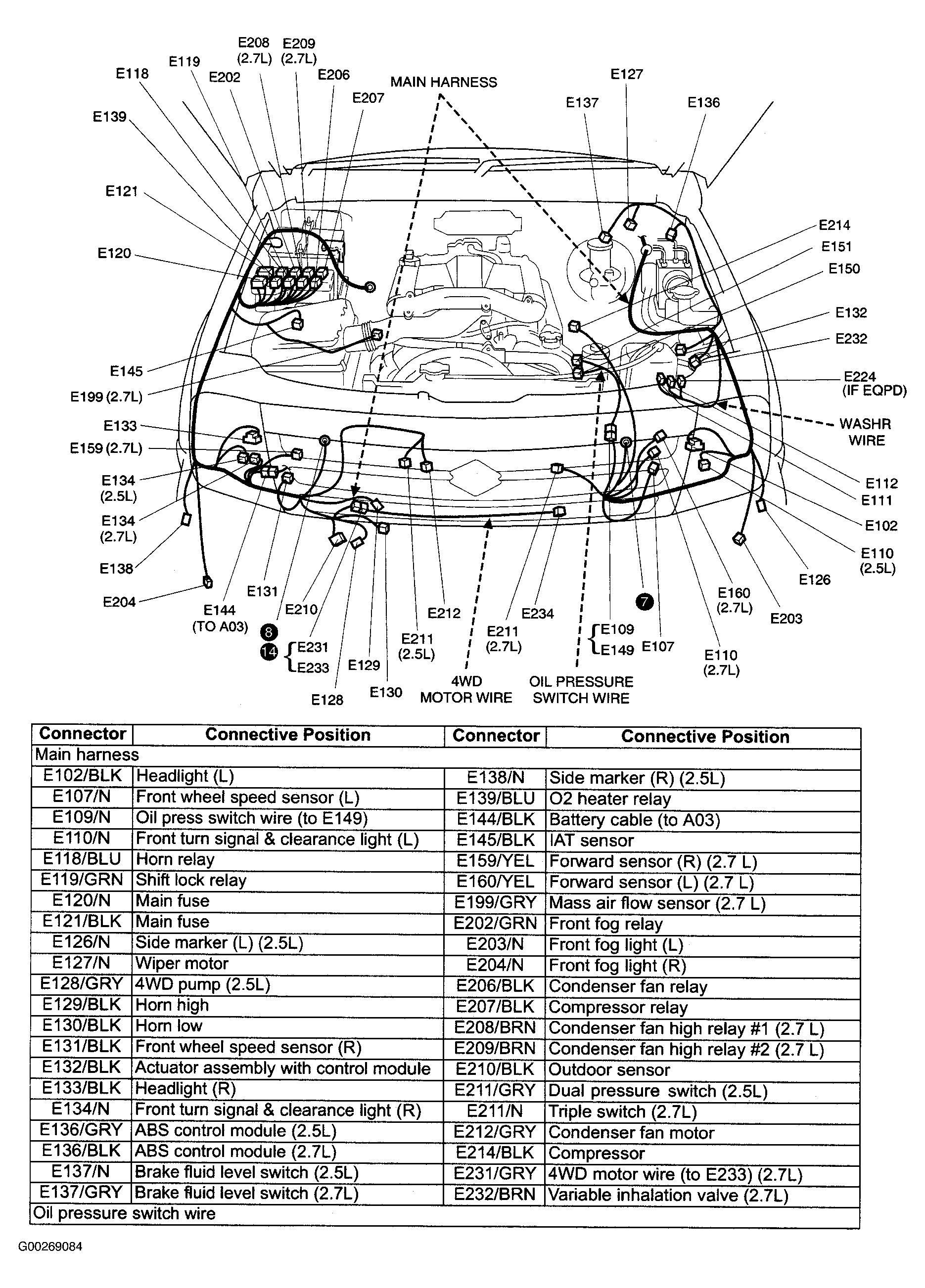

| ABS Control Module (2.5L) (G92) | At left rear corner of engine compartment. See Figure . |
| ABS Control Module (2.7L) (G93) | At left rear corner of engine compartment. See Figure . |
| Actuator Assembly W/Control Module | Left front of engine compartment. See Figure . |
| Auto A/C Controller | Center of dash. See Figure . |
| Auto Light Controller (G34) | On top right side of dash. See Figure . |
| Body Control Module | Behind center of dash. See Figure . |

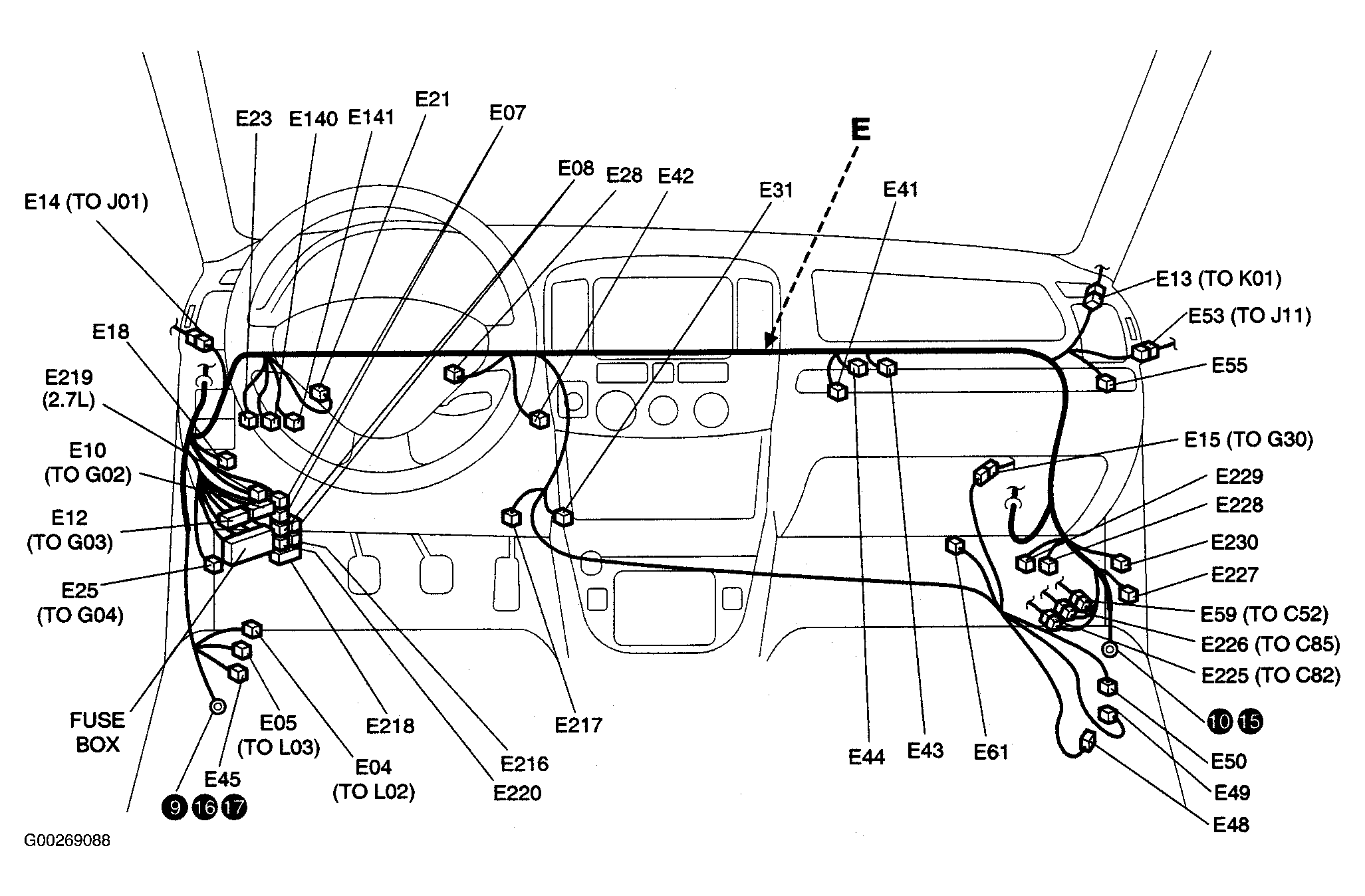

| ECM/PCM (E61) | Behind glove box. See Figure . |
| ECM/TCM (C51) | Behind glove box. See Figure . |
| Illumination Controller | Behind left side of dash. See Figure . |
| Keyless Controller (G45) | At lower left side of dash. See Figure . |
| TCM (2.7L) (E228) | Right side of dash. See Figure . |
| 4WD Controller (2.7L) (E23) | Left side of dash. See Figure . |
