Fuel System Components

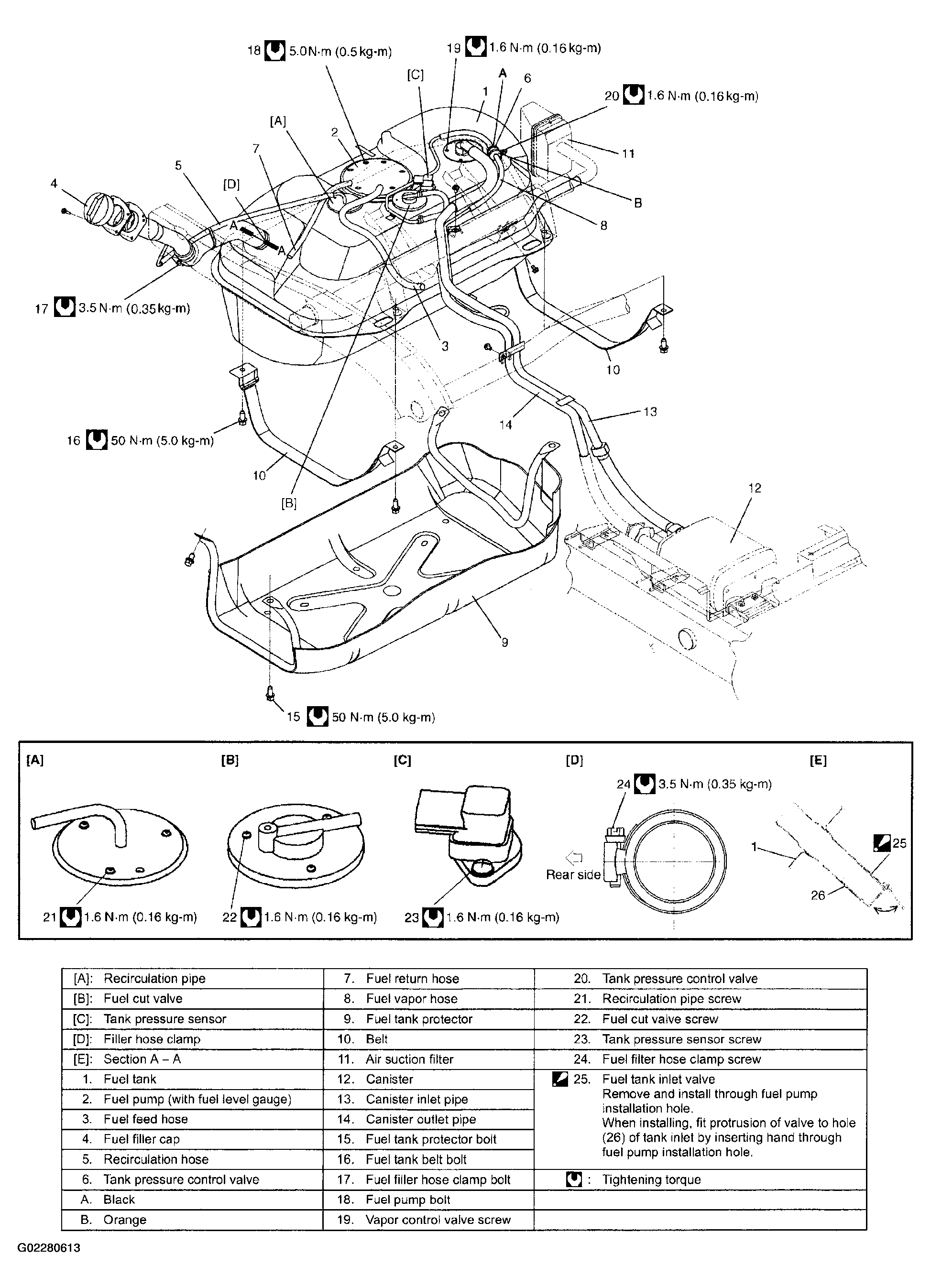

Fig 1: Identifying Fuel System Components (Rear)
Courtesy of SUZUKI OF AMERICA CORP.

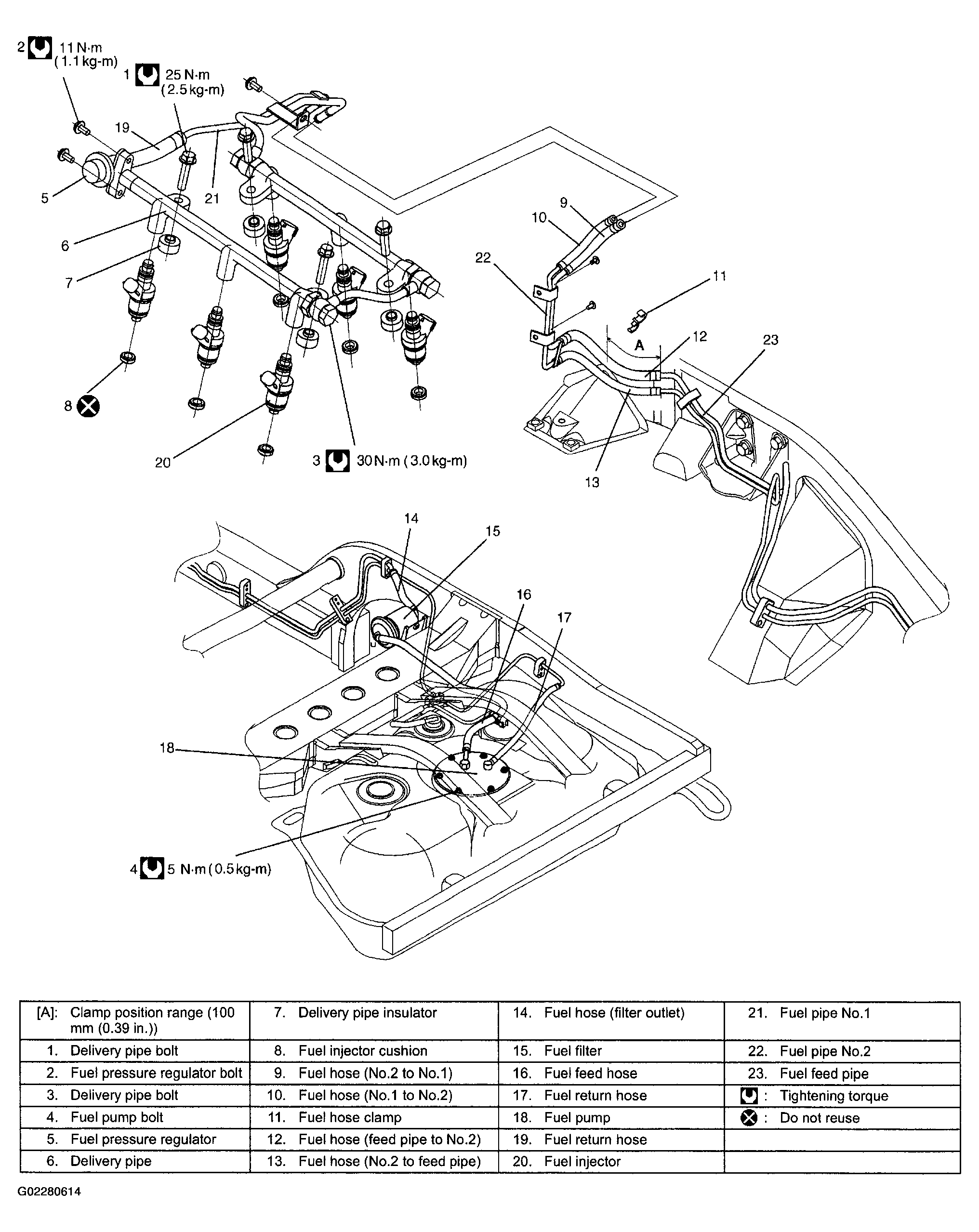

Fig 2: Identifying Fuel System Components (Front)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
