Main Relay Inspection

  1. Disconnect negative (-) cable at battery.
  2. Remove main relay (1) from its connector.

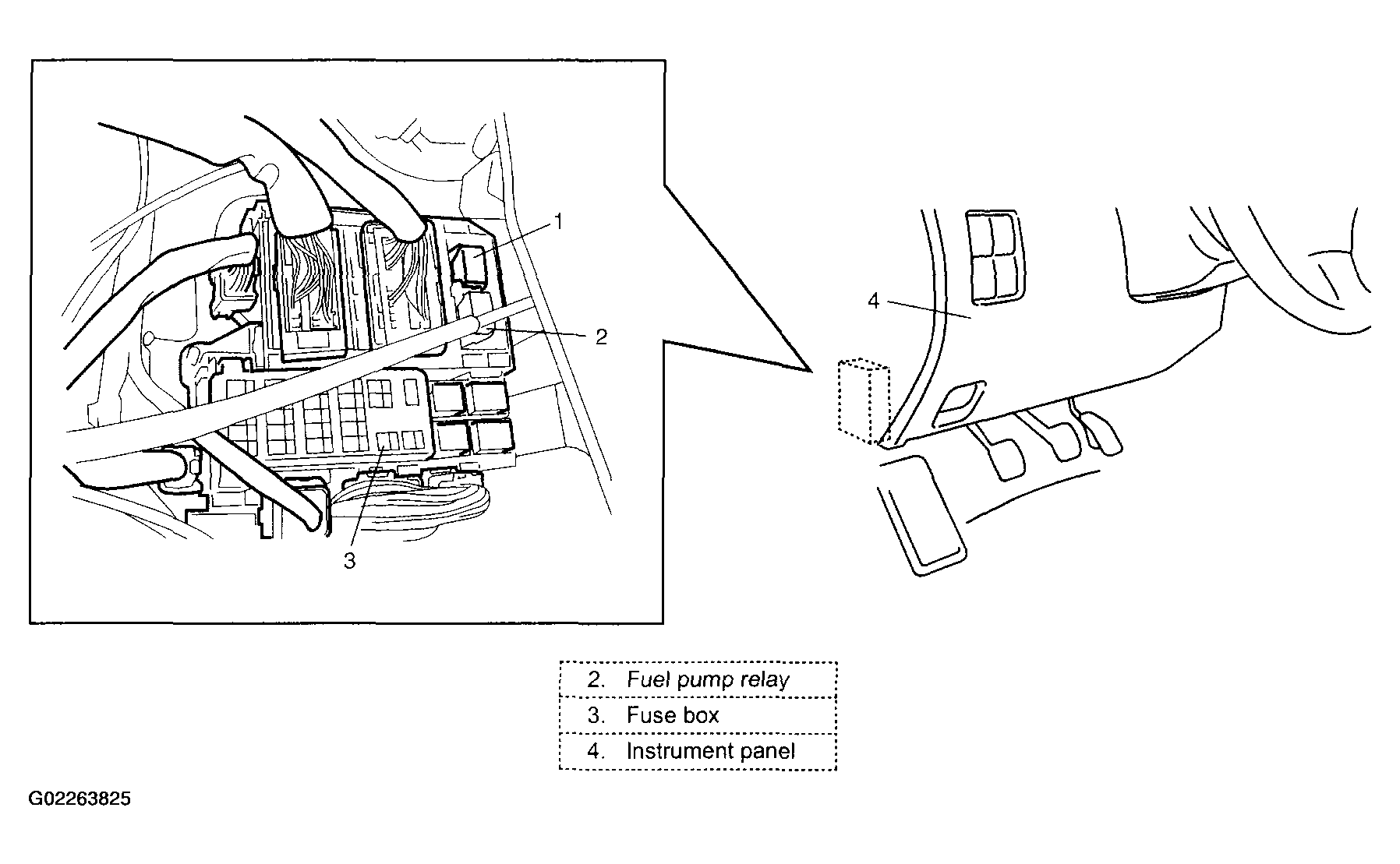

    Fig 1: Removing Main Relay
    G02263825Courtesy of SUZUKI OF AMERICA CORP.
  3. Check resistance between each two terminals.

    If check results are as specified, proceed to next operation check. If not, replace main relay.

    Main relay resistance

    Between terminals "A" and "B":  Infinity

    Between terminals "C" and "D":  160 - 240 ohm at 20°C (68°F)

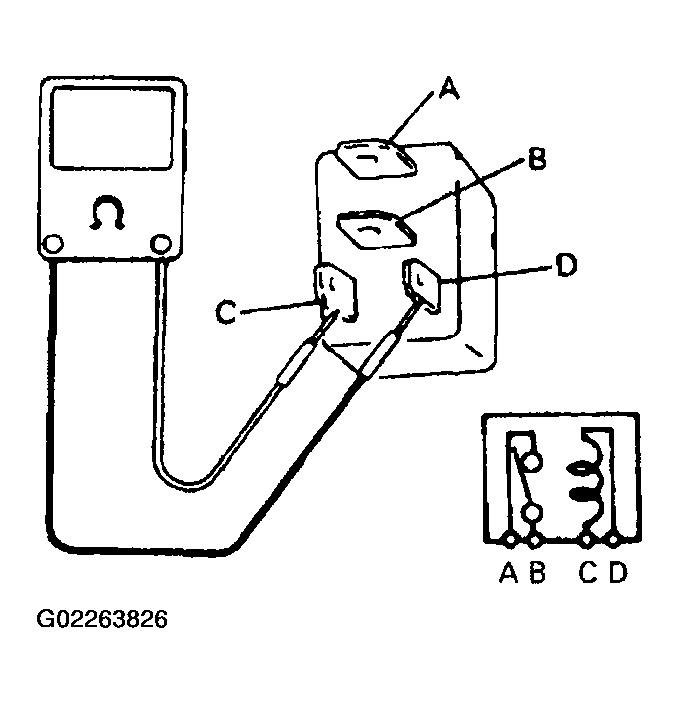

    Fig 2: Checking Main Relay (Voltage Not Applied)
    G02263826Courtesy of SUZUKI OF AMERICA CORP.
  4. Check that there is continuity between terminals "A" and "B" when battery is connected to terminals "C" and "D". If malfunction is found, replace main relay.

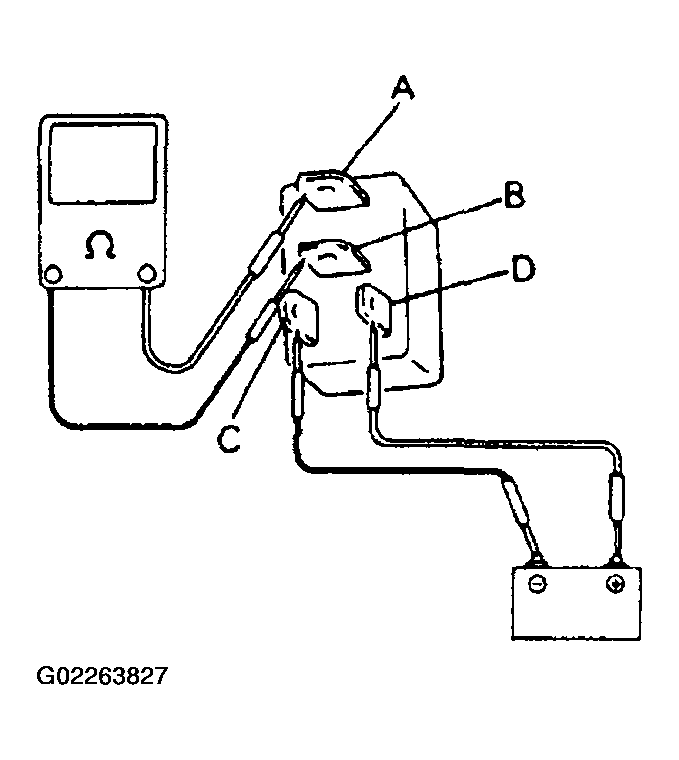

    Fig 3: Checking Main Relay (Voltage Applied)
    G02263827Courtesy of SUZUKI OF AMERICA CORP.
