Generator Inspection: Rectifier

  1. Using an ohmmeter, connect one tester probe to the "B" terminal (1) and the other to each rectifier terminal (2).

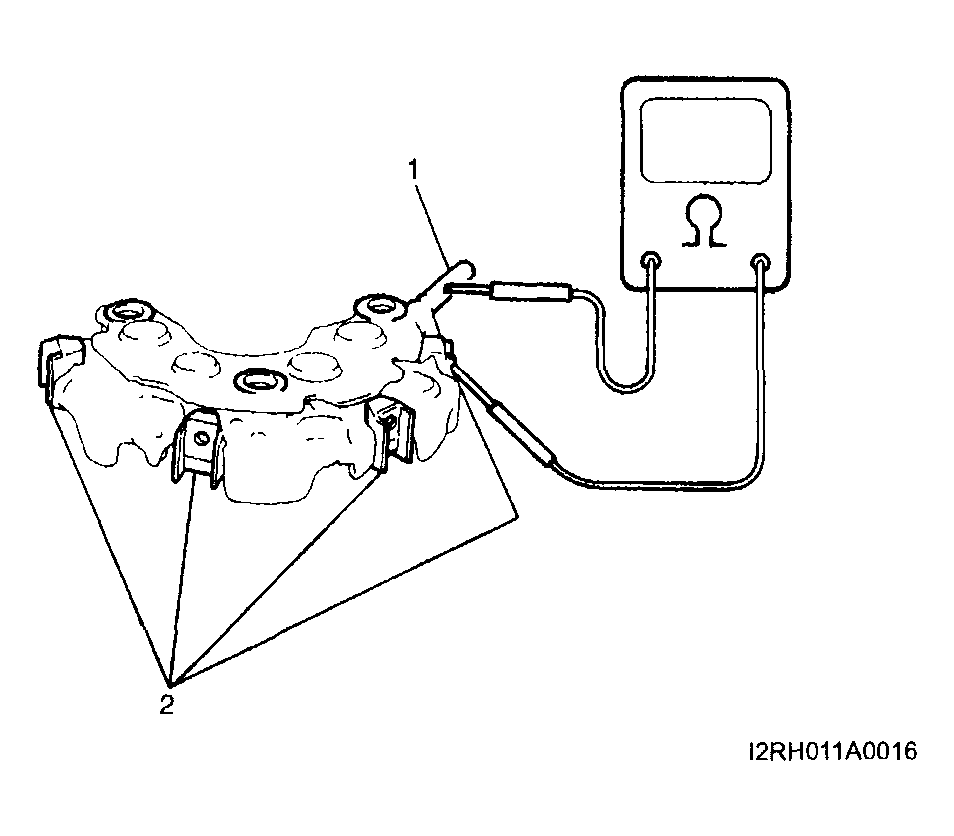

    Fig 1: Connecting One Tester Probe To "B" Terminal And Other To Each Rectifier Terminal
    G04014337Courtesy of SUZUKI OF AMERICA CORP.
  2. Reverse the polarity of the tester probes and repeat step 1).
  3. Check that one shows continuity and the other shows no continuity.

    If there is continuity, replace the rectifier.

  4. Using an ohmmeter, connect one tester probe to each negative terminal (1) and the other to each rectifier terminal (2).

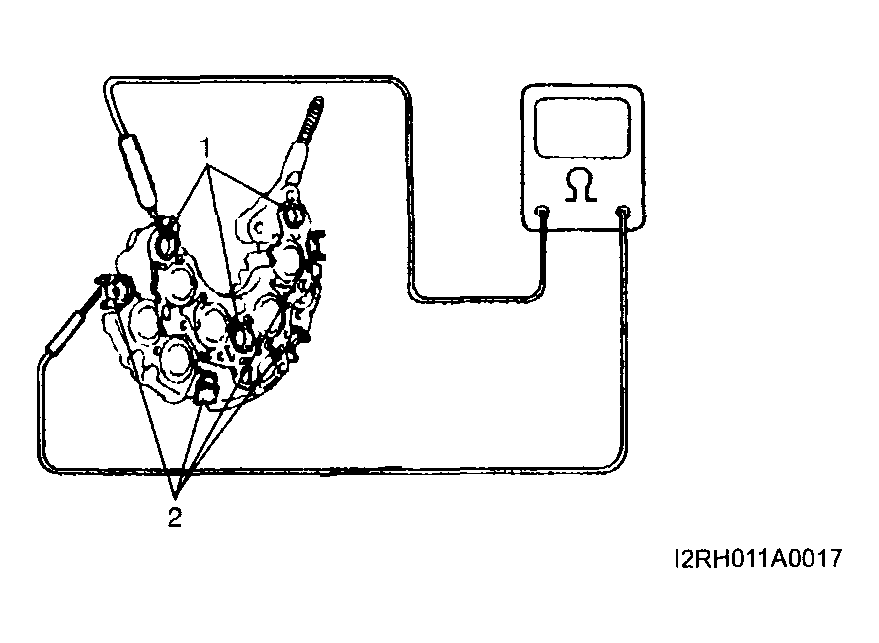

    Fig 2: Connecting One Tester Probe To Each Negative Terminal And Other To Each Rectifier Terminal
    G04014338Courtesy of SUZUKI OF AMERICA CORP.
  5. Reverse the polarity of the tester probes and repeat step 4).
  6. Check that one shows continuity and the other shows no continuity.

    If there is continuity, replace the rectifier.
