Repair Instructions: Installation

  1. Install fuel tank inlet valve to fuel tank. Be sure to fit protrusion (1) of inlet valve in notch (2) on tank inlet.

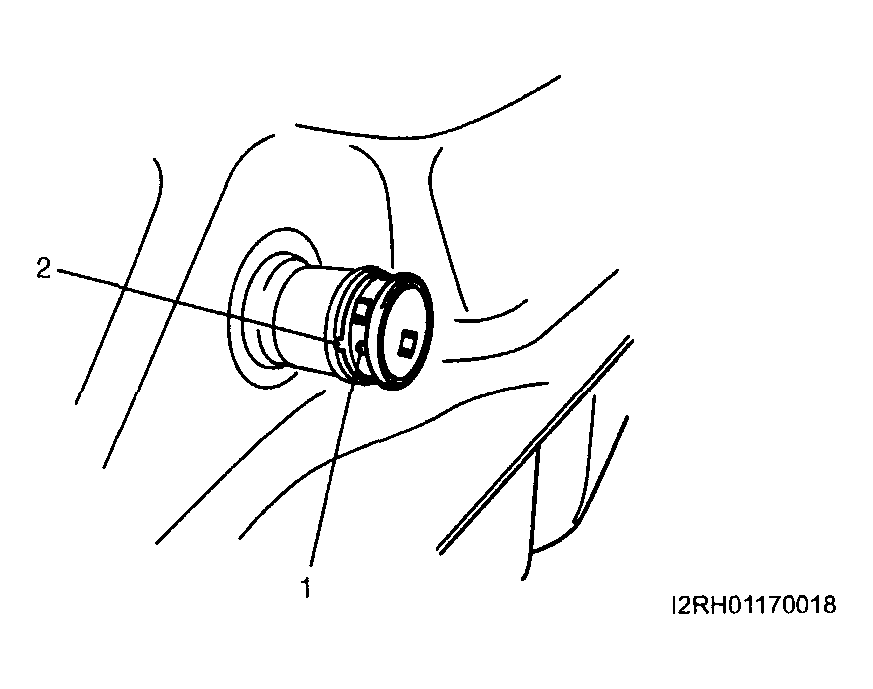

    Fig 1: Installing Fuel Tank Inlet Valve
    G04014245Courtesy of SUZUKI OF AMERICA CORP.
  2. Connect fuel tank filler hose to tank.
  3. Install fuel tank to vehicle. Refer to "FUEL TANK REMOVAL AND INSTALLATION :".
