Automatic Transaxle Assembly Components

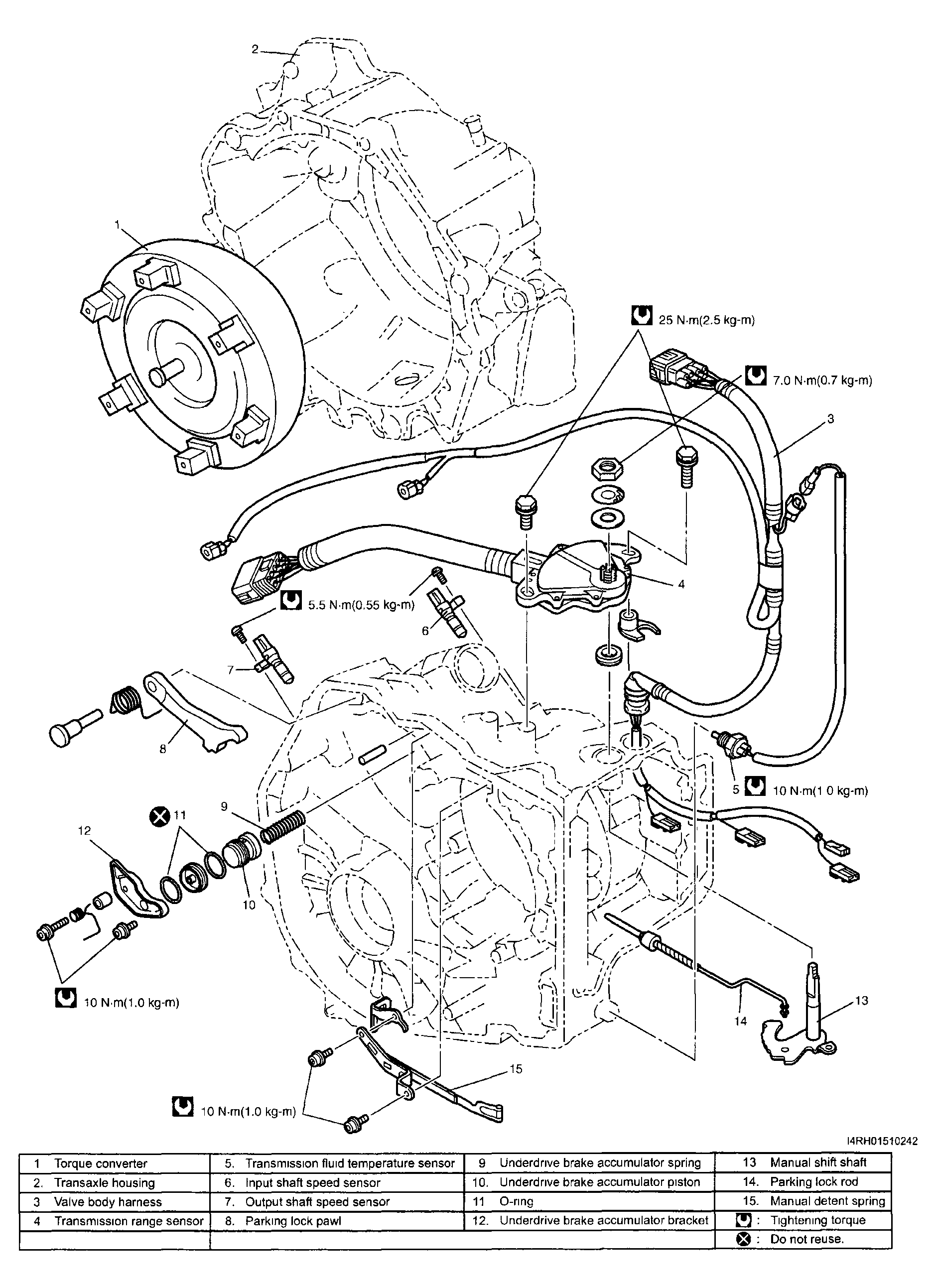

Fig 1: Exploded View Of Automatic Transaxle Assembly Components (1 Of 3)
G04015049Courtesy of SUZUKI OF AMERICA CORP.

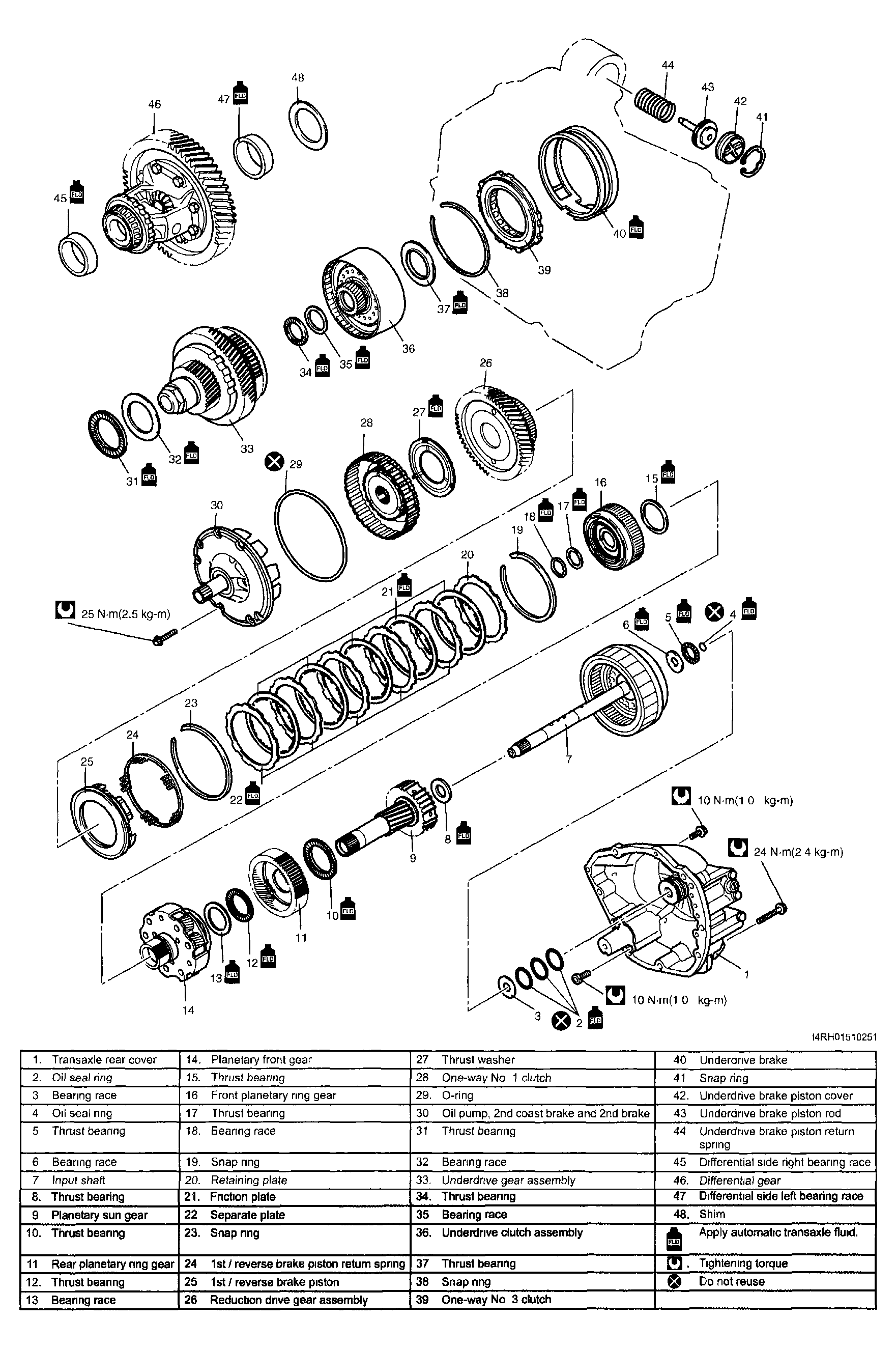

Fig 2: Exploded View Of Automatic Transaxle Assembly Components (2 Of 3)
G04015050Courtesy of SUZUKI OF AMERICA CORP.

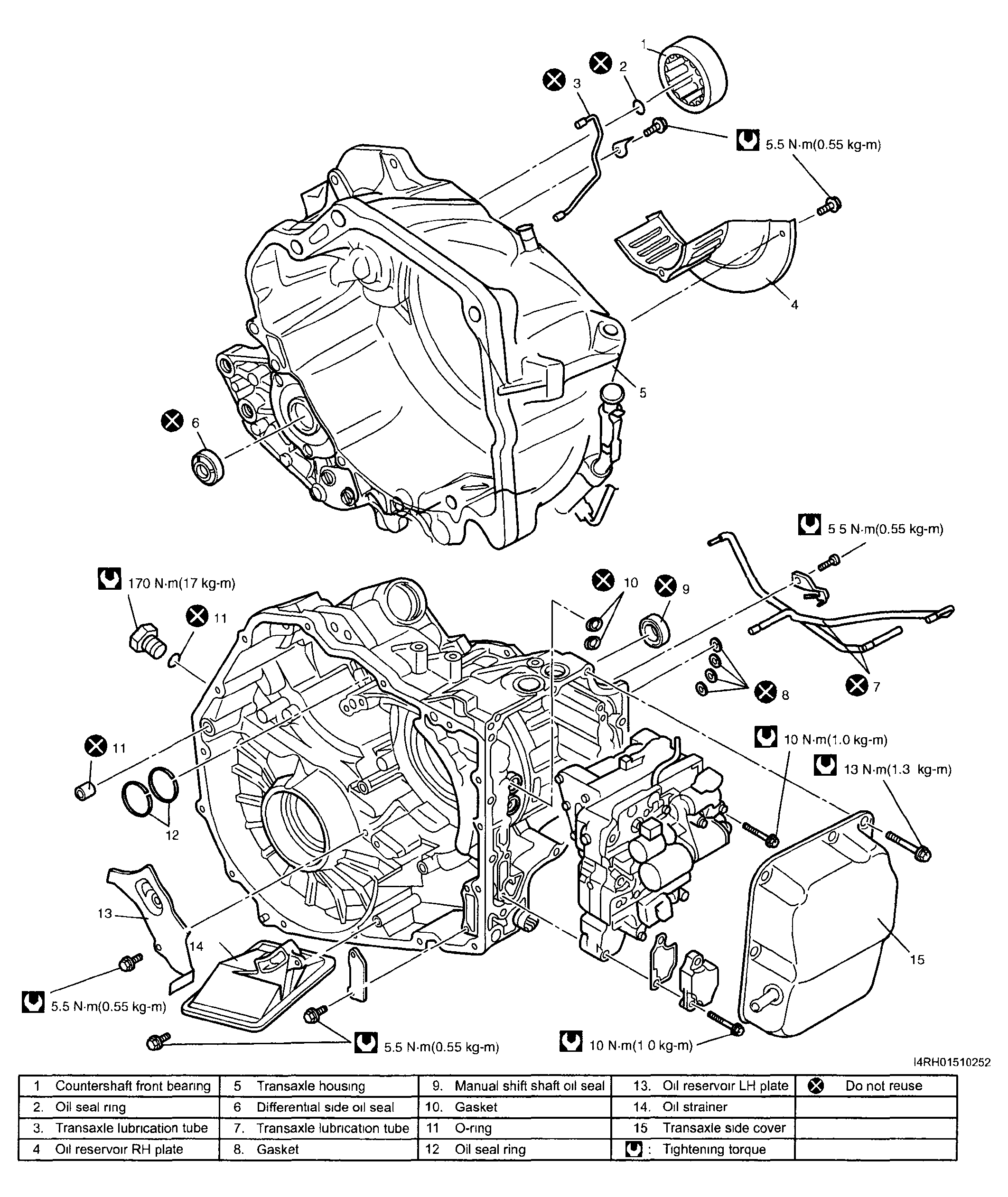

Fig 3: Exploded View Of Automatic Transaxle Assembly Components (3 Of 3)
G04015051Courtesy of SUZUKI OF AMERICA CORP.
