Engine Exhaust System Component Views

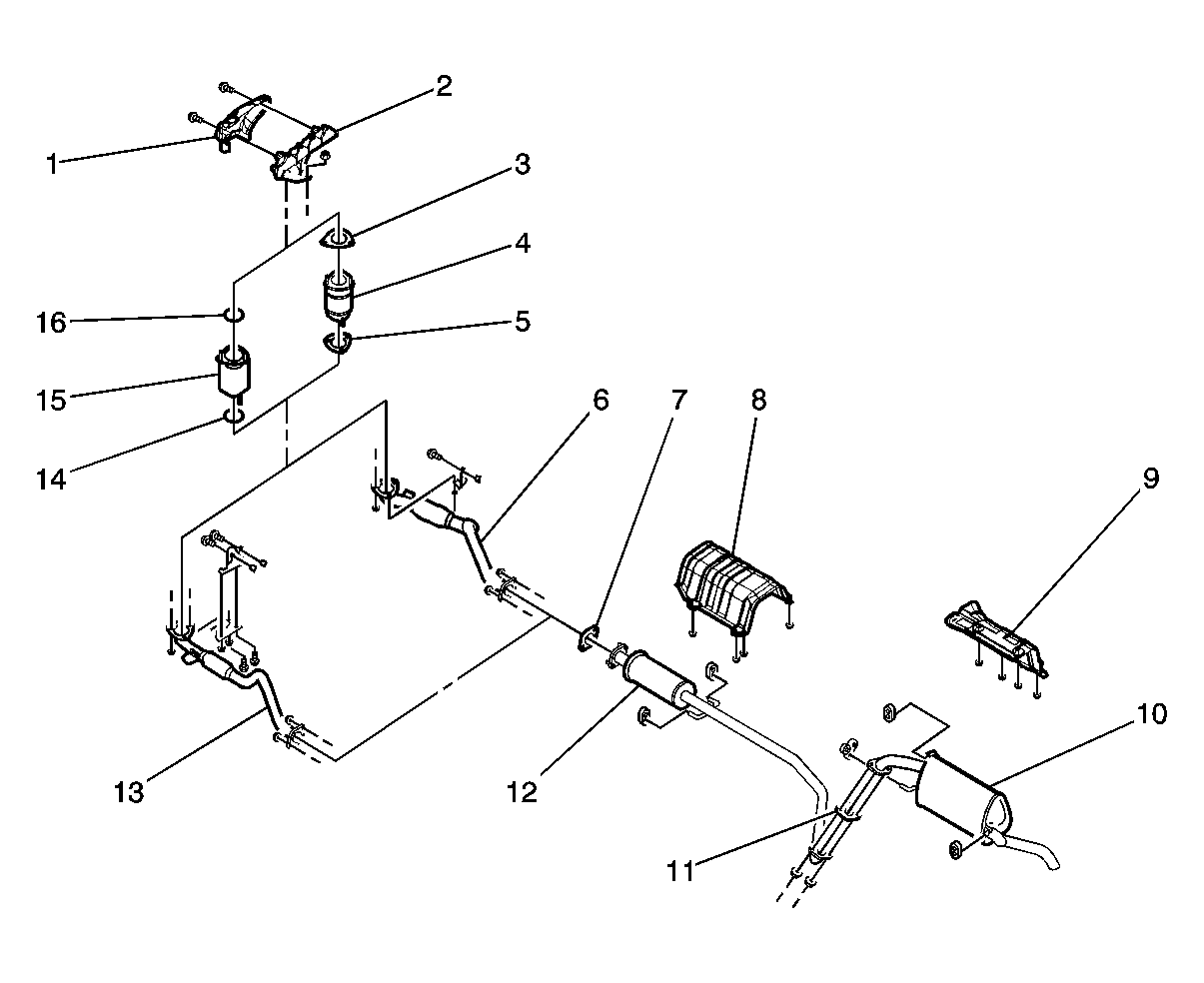

Fig 1: Engine Exhaust System Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Exhaust Manifold Shield
2	Exhaust Manifold
3	Exhaust Front Pipe Gasket (Upper)
4	Exhaust Pup Converter (1.4/1.5L SOHC and 1.4/1.6L DOHC)
5	Exhaust Front Pipe Gasket (Lower)
6	Muffler Gasket
7	Exhaust Front Pipe (1.4/1.5L SOHC and 1.4/1.6L DOHC)
8	Underbody Protective Shield (Front Muffler)
9	Underbody Protective Shield (Rear Muffler)
10	Exhaust Rear Muffler
11	Muffler Gasket
12	Exhaust Front Muffler
13	Exhaust Front Pipe (1.2L SOHC)
14	Pup Converter Gasket (Lower)
15	Exhaust Pipe Converter (1.2L SOHC)
16	Pup Converter Gasket (Upper)
