Ignition Coil Installation

Installation should follow the removal procedure in the reverse order.
Install the ignition coils.
Tighten

Tighten the ignition coil retaining bolts to 6 - 8 N.m (53 ~ 71 lb-in).

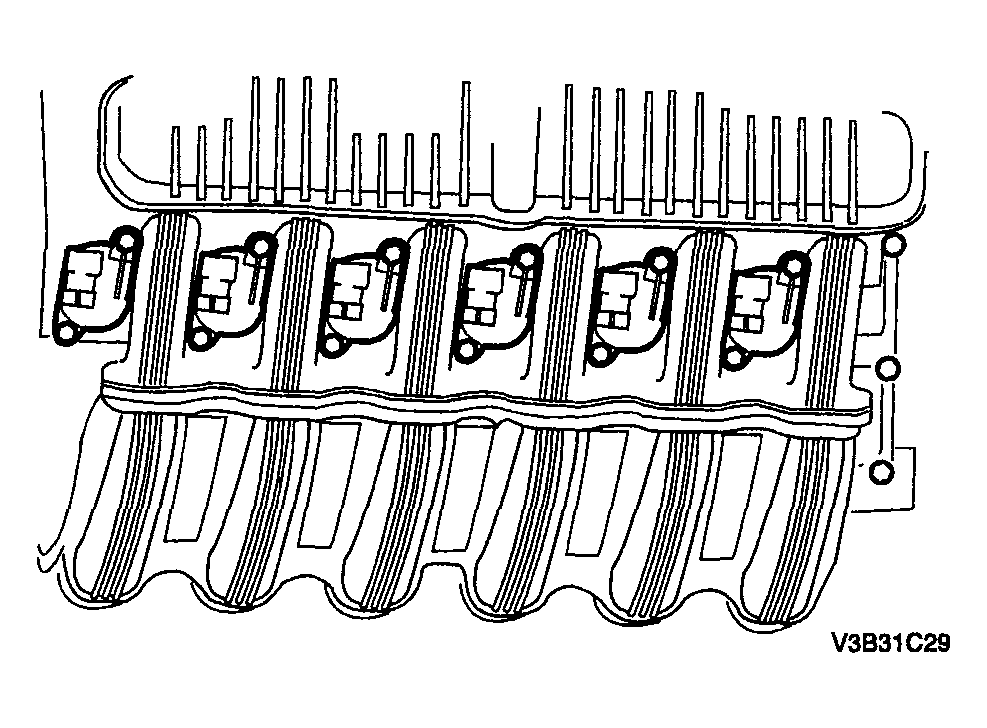

Fig 1: Installing Ignition Coils Retaining Bolts
Courtesy of SUZUKI OF AMERICA CORP.
