Knock Sensor Removal

  1. Disconnect the negative battery cable.
  2. Remove the VIS vacuum tank. Refer to "VIS VACUUM TANK "

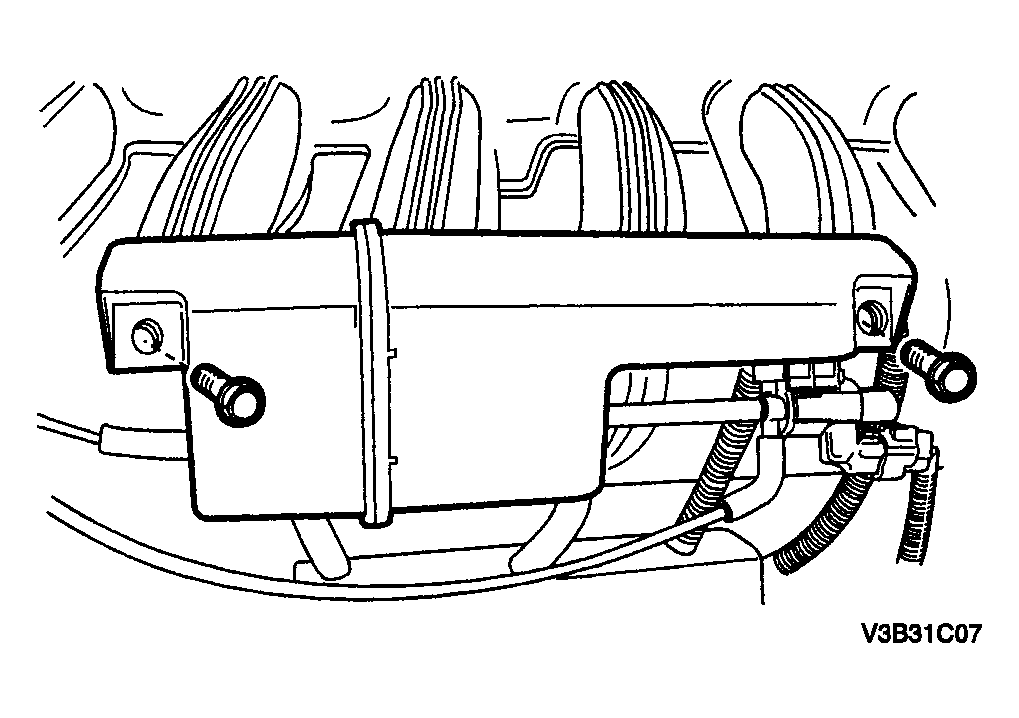

    Fig 1: Remove VIS Vacuum Tank
    G04094578Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the wiring harness from the wiring support bracket.

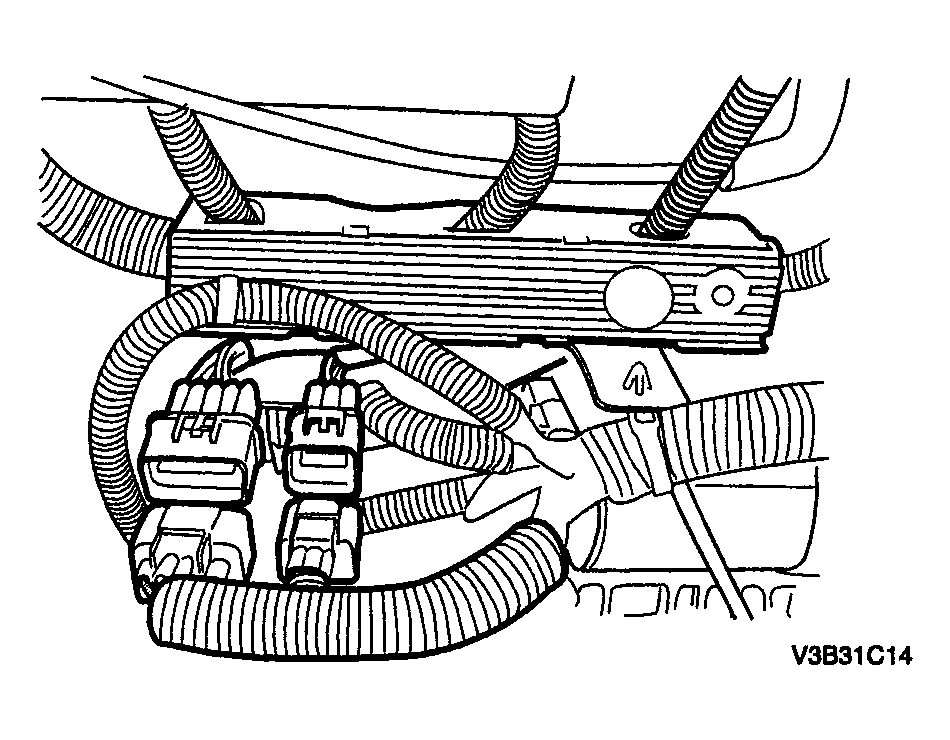

    Fig 2: Removing Wiring Harness From Wiring Support Bracket
    G04094579Courtesy of SUZUKI OF AMERICA CORP.
  4. Disconnect the knock sensor wiring harness connector.
  5. Remove the knock sensor.

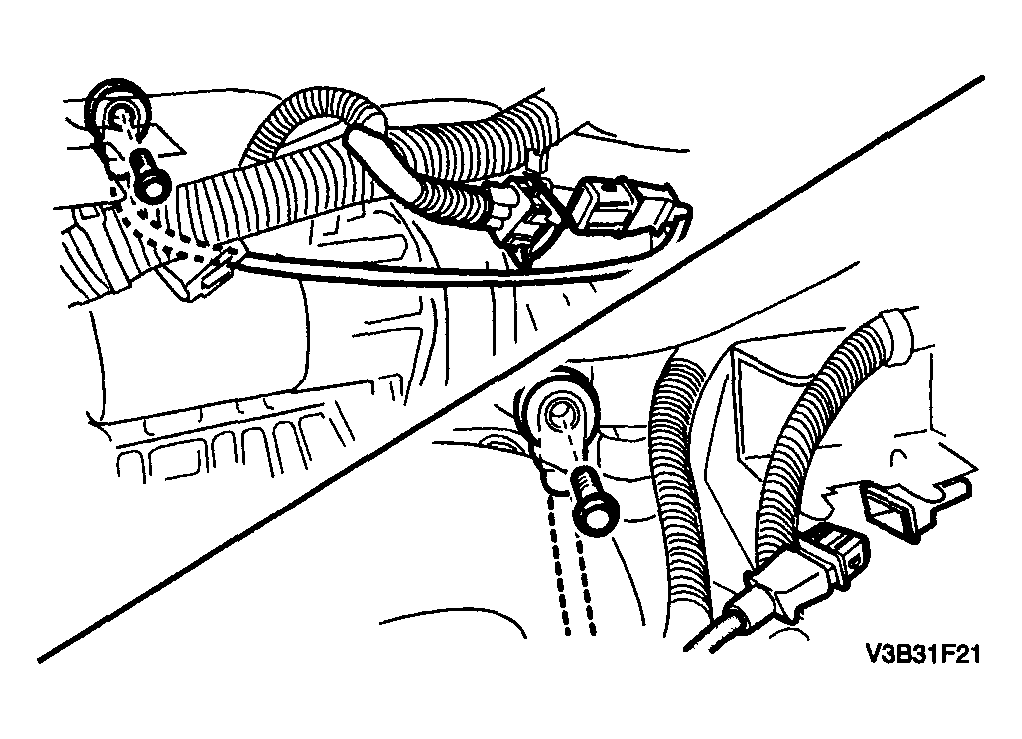

Fig 3: Removing Knock Sensor
G04094580Courtesy of SUZUKI OF AMERICA CORP.
