Shift Control Lever Assembly Installation

Install the bolts and the shift control assembly.
Tighten

Tighten the bolts to 8 N.m (71 lb-in).

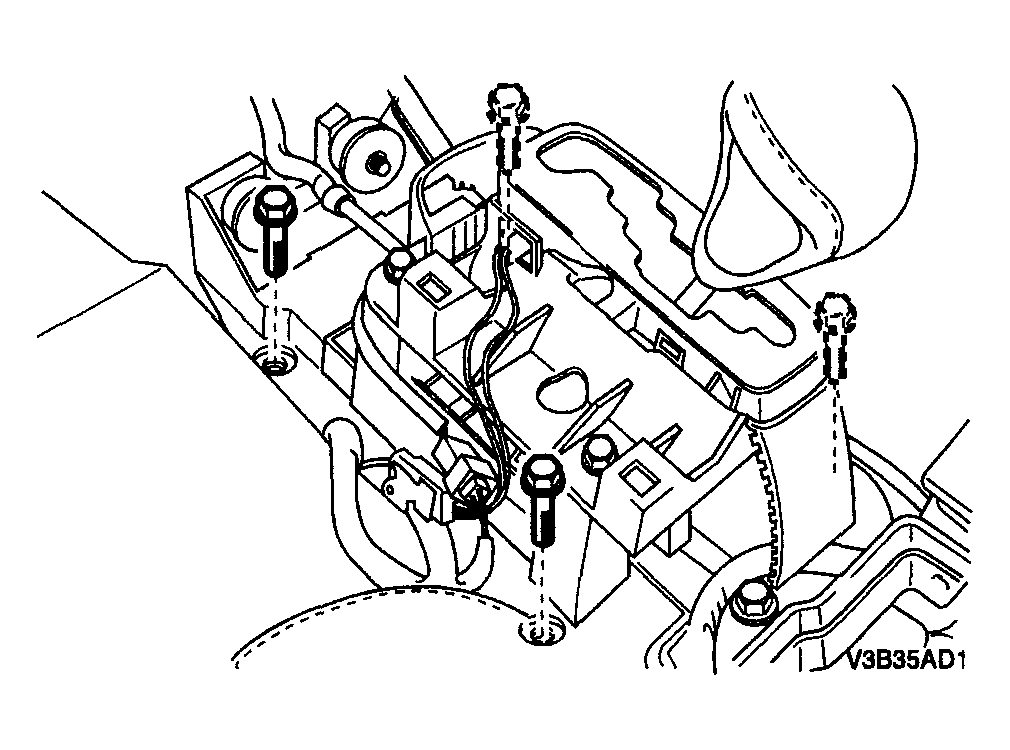

Fig 1: Installing Bolts And Shift Control Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Install the shift control cable onto the bracket and tighten the nut.
Install the shift control cable adjuster pinch nut.
Tighten

Tighten the shift control cable adjuster pinch nut to 8 N.m (71 lb-in).

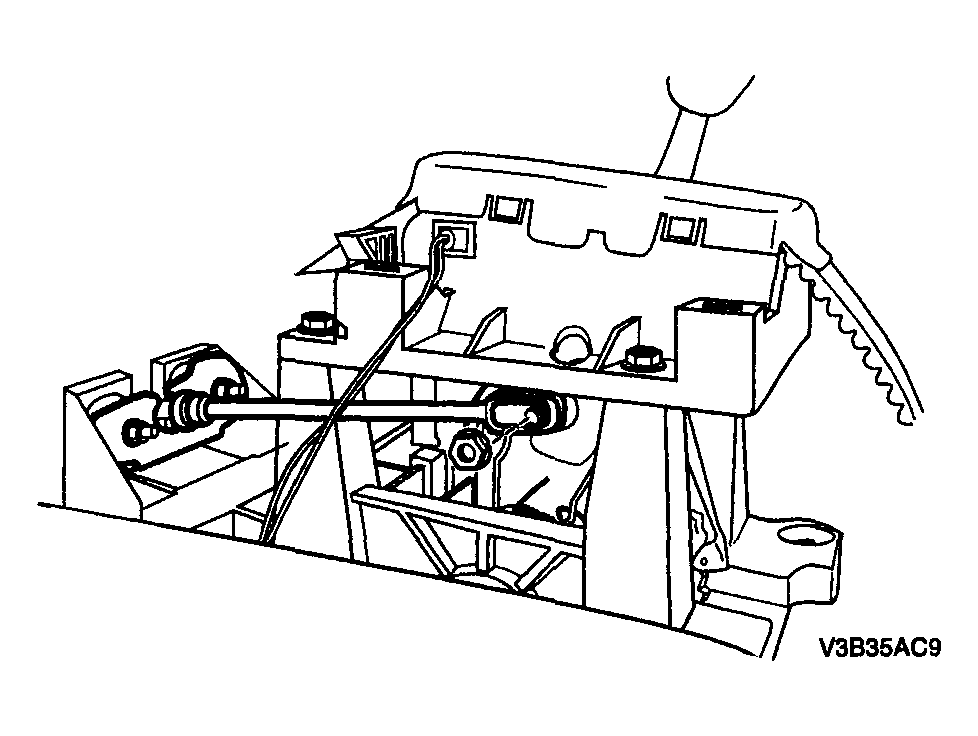

Fig 2: Installing Shift Control Cable Onto Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Connect the electrical switch connectors.
Install the floor console. Refer to "FLOOR CONSOLE INSTALLATION ".
Connect the negative battery cable.

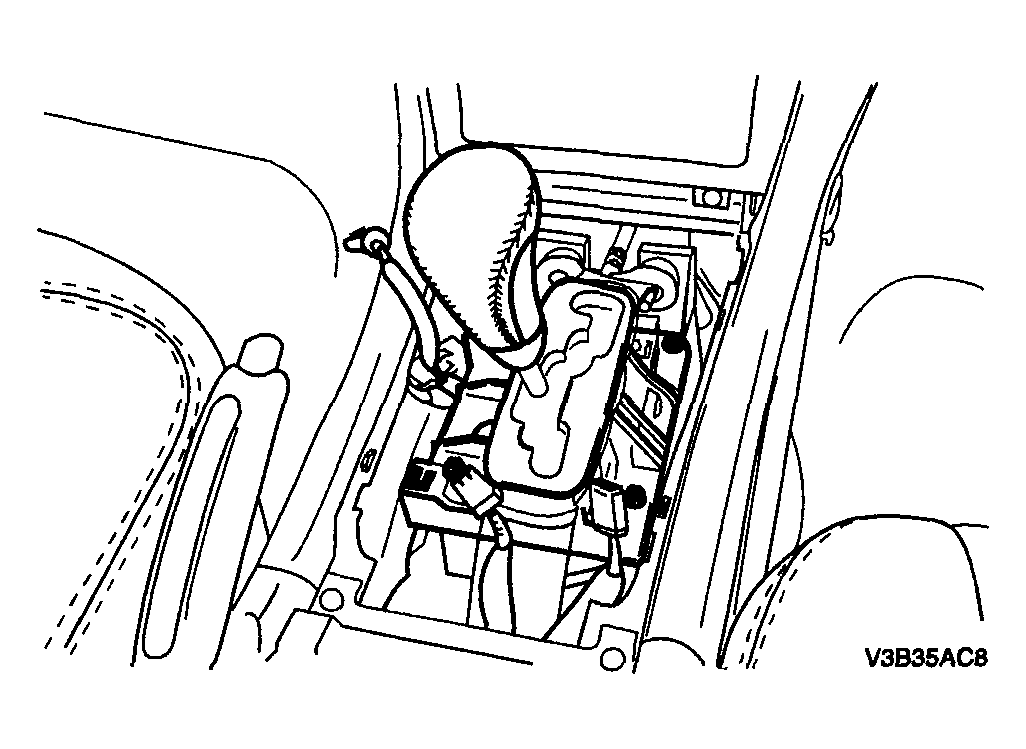

Fig 3: Connecting Electrical Switch Connectors
Courtesy of SUZUKI OF AMERICA CORP.
