DTC P0461: Fuel Level Sensor Performance
>>
Notes
DTC P0461: Fuel Level Sensor Performance: Notes

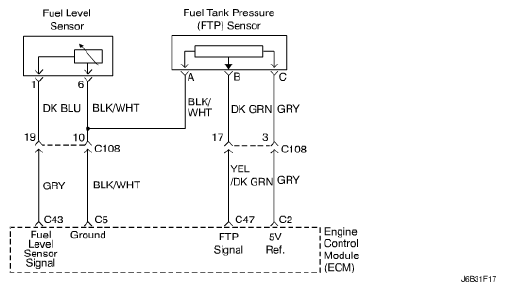

Fig 1: Fuel Level Sensor Performance - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
