Engine Performance - DTC P0532 - P1166
>>
DTC P0564: Cruise Control Multi-Function Switch Circuit
>>
Notes
DTC P0564: Cruise Control Multi-Function Switch Circuit: Notes

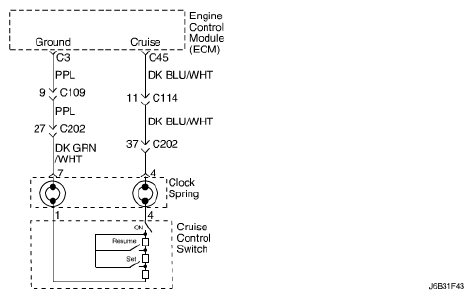

Fig 1: Cruise Control Multi-Function Switch - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
