Starter Installation

Install the starter-to-engine block mounting bolt and the transaxle-to-starter mounting bolt.
Tighten:
- Tighten the starter-to-engine block mounting bolt to 45 N.m (33 lb-ft).
- Tighten the transaxle-to-starter mounting bolt to 50 N.m (37 lb-ft).

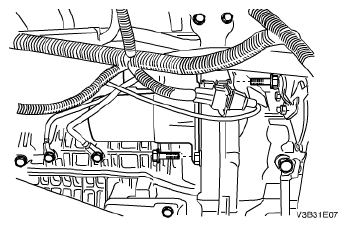

  Fig 1: Removing/Installing Starter-To-Engine Block And Transaxle-To-Starter Mounting Bolt
  Courtesy of SUZUKI OF AMERICA CORP.
Position the starter electrical wire on the solenoid terminals and the ground wire.
Install the starter solenoid nut.
Tighten:

Tighten the starter solenoid nut to 7 N.m (61 lb-in.).
Connect the starter solenoid connector.

Fig 2: Connecting Starter Electrical Connector And Installing Starter Solenoid Nut
Courtesy of SUZUKI OF AMERICA CORP.
Install the air inlet hose.
Install the air inlet hose bolts.
Tighten:

Tighten the air inlet hose bolts to 6 N.m (53 lb-in.).
Connect the negative battery cable.

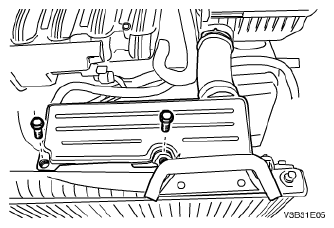

Fig 3: Removing/Installing Air Inlet Hose Bolts
Courtesy of SUZUKI OF AMERICA CORP.
