Shift Control Lever Assembly Installation

Install the bolts and the shift control assembly.
Tighten:

Tighten the bolts to 8 N.m (71 lb-in.).

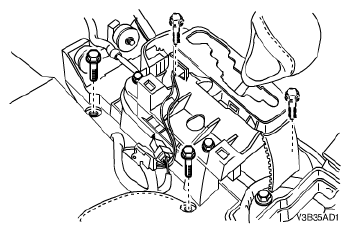

Fig 1: Identifying Shift Control Assembly & Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the shift control cable onto the bracket and tighten the nut.
Install the shift control cable adjuster pinch nut.
Tighten:

Tighten the shift control cable adjuster pinch nut to 8 N.m (71 lb-in.).

Fig 2: Identifying Shift Control Cable & Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Connect the electrical switch connectors.
Install the floor console. Refer to FLOOR CONSOLE INSTALLATION .
Connect the negative battery cable.

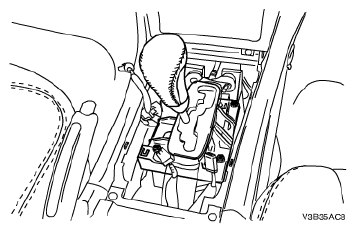

Fig 3: Identifying Electrical Switch Connectors

G04719700

Courtesy of SUZUKI OF AMERICA CORP.
