Transaxle Control Module (TCM) Installation

Install the TCM and nuts.
Tighten:

Tighten the TCM mounting nuts to 23 N.m (17 lb-ft).
Connect the wiring connectors.
Connect the negative battery cable.

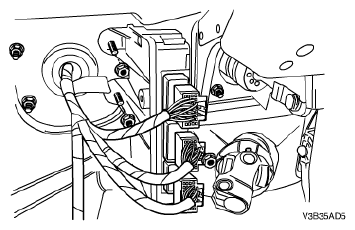

Fig 1: Identifying Transaxle Control Module & Nuts
Courtesy of SUZUKI OF AMERICA CORP.
