Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| A/B Control Module (G58) | Behind lower center of dash. |

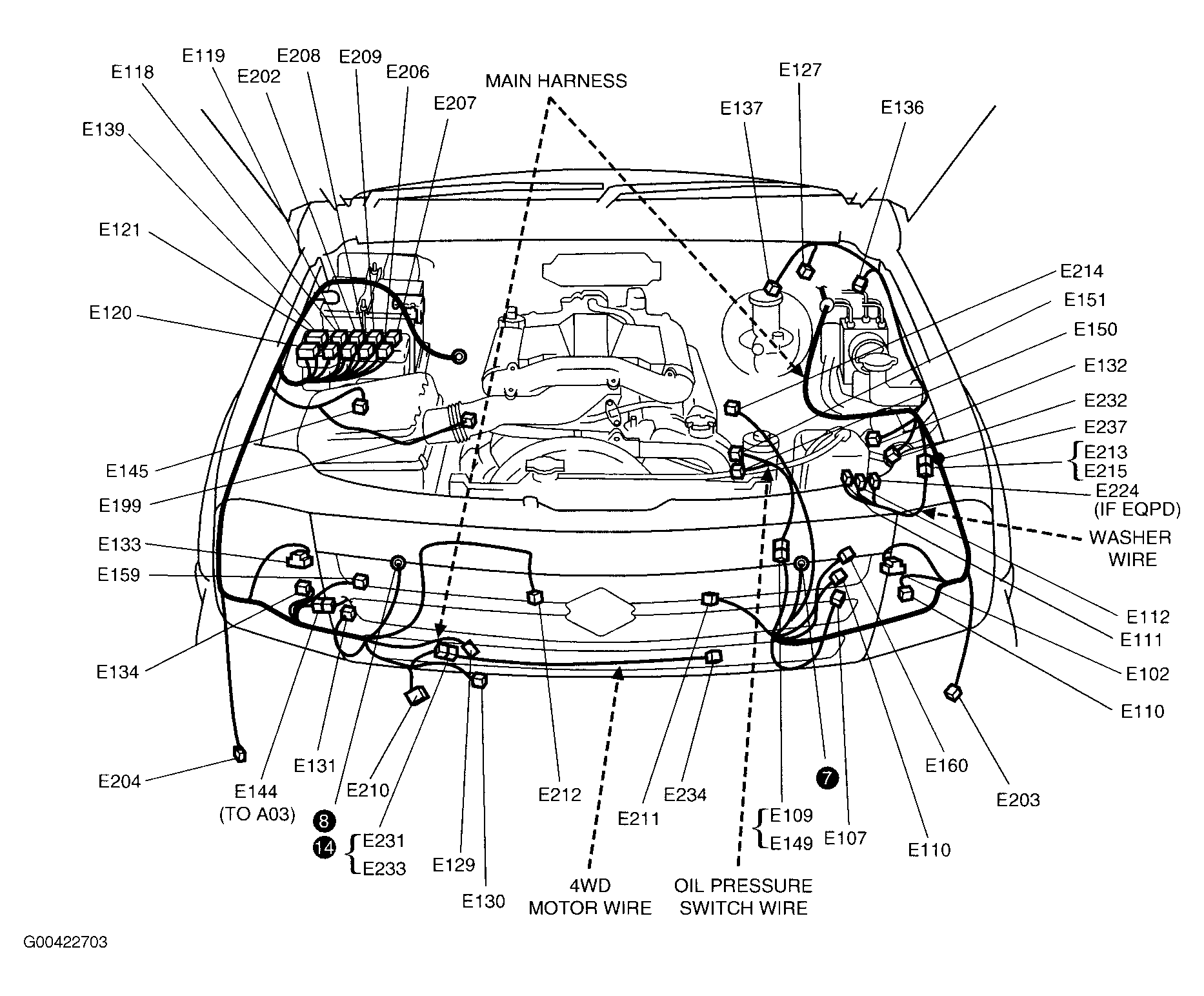

| ABS Control Module (E136) | At left rear corner of engine compartment. See Figure . |
| Actuator Assembly W/Control Module (E132) | Left front of engine compartment. See Figure . |
| Auto A/C Controller (G52) | Center of dash. |
| Auto Light Controller (G34) | On top right side of dash. |
| Body Control Module (BCM) (G53) | Behind center of dash. |

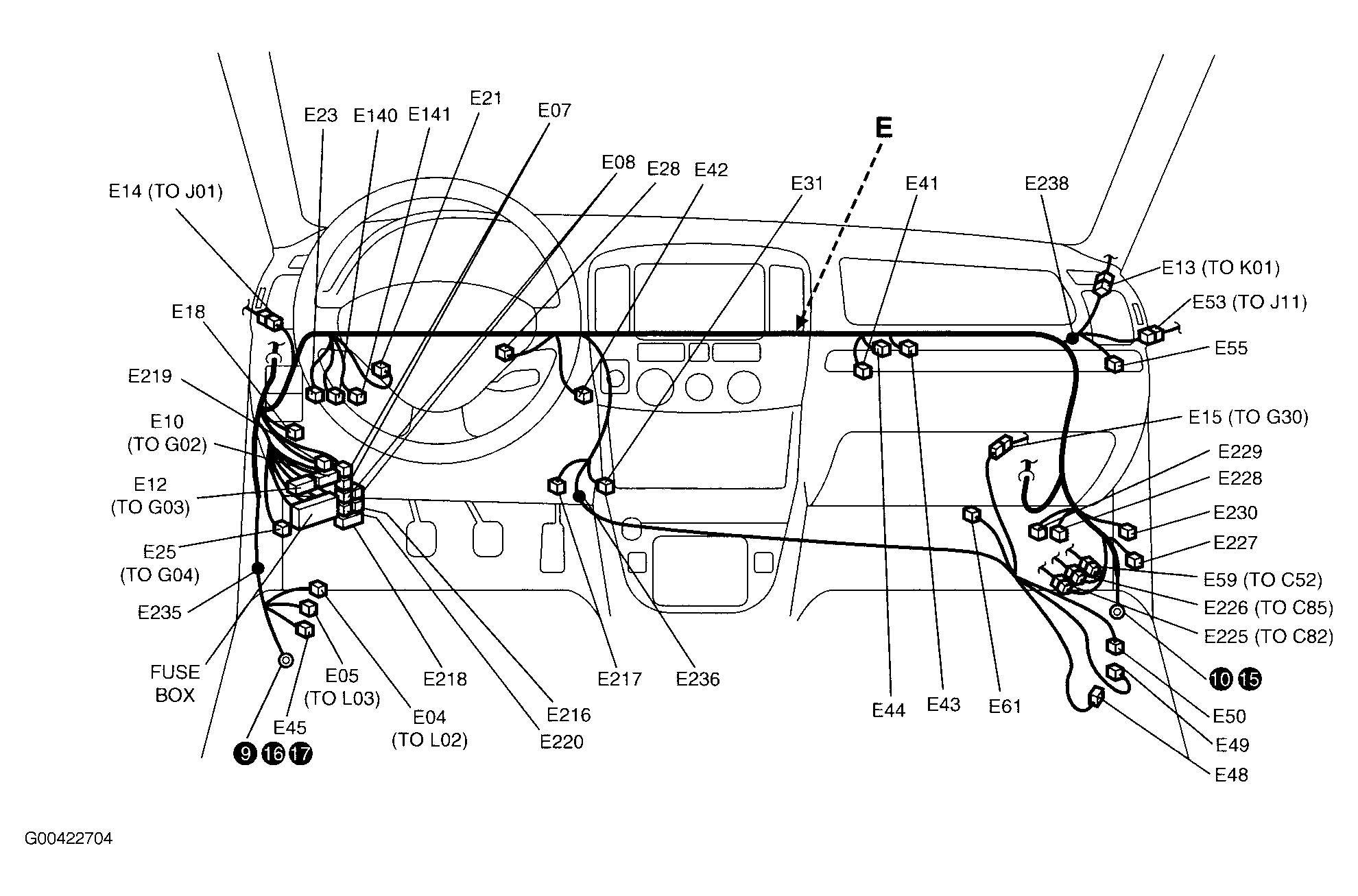

| ECM/PCM (E61) | Behind glove box. See Figure . |

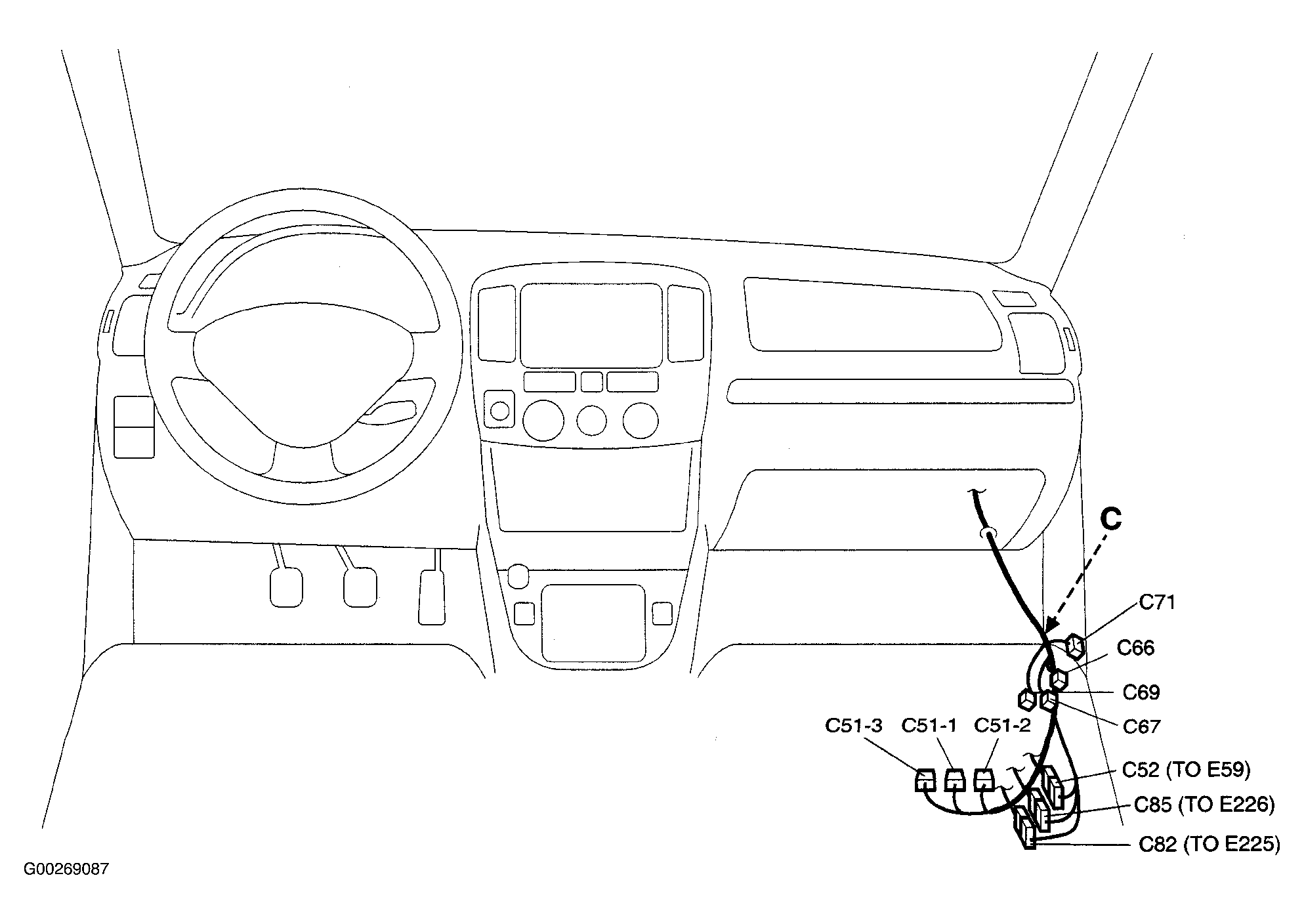

| ECM/TCM (C51) | Behind glove box. See Figure . |

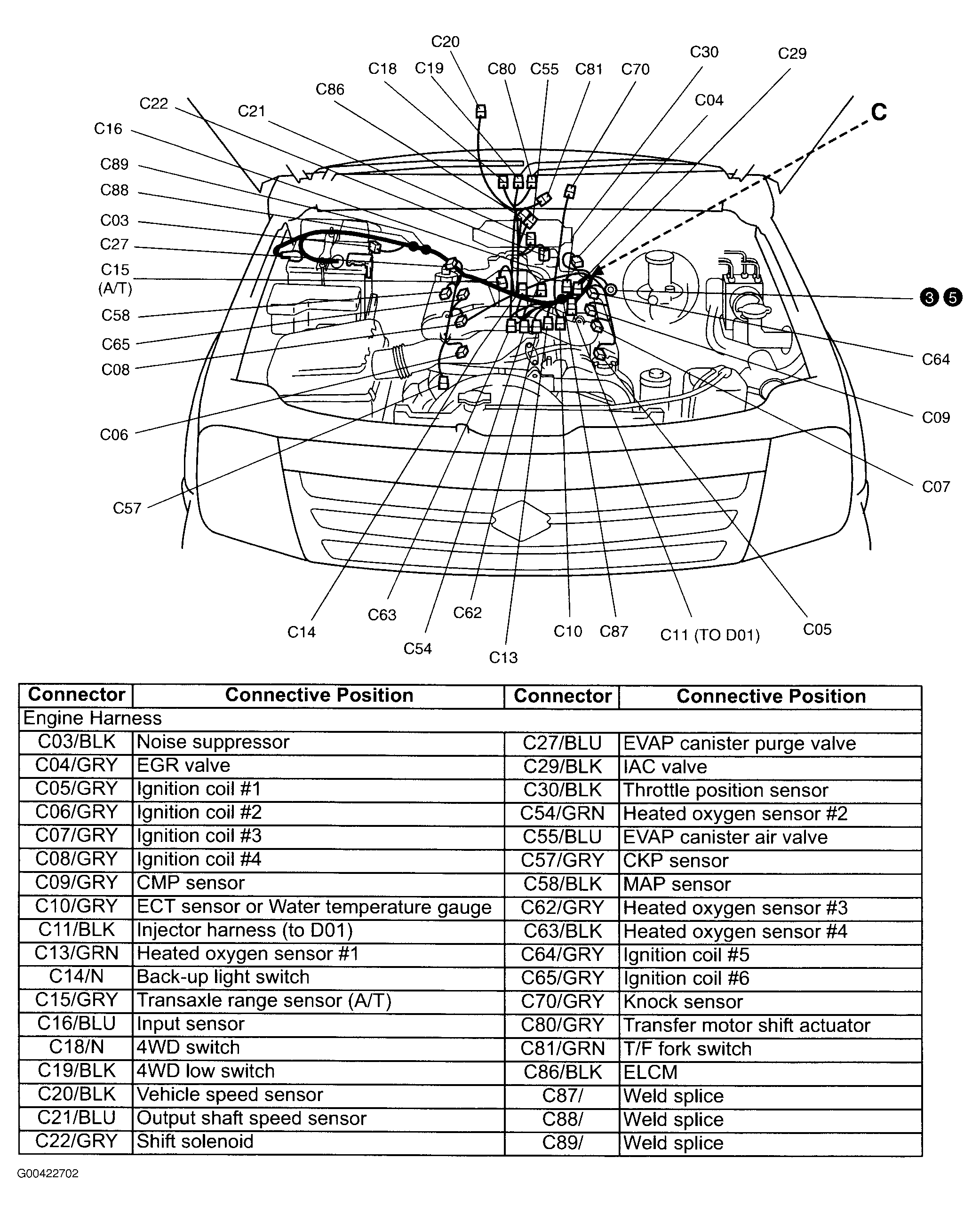

| ELCM | Center rear of engine. See Figure . |
| Illumination Controller | Behind left side of dash. |
| Keyless Controller (G45) | On steering column. |

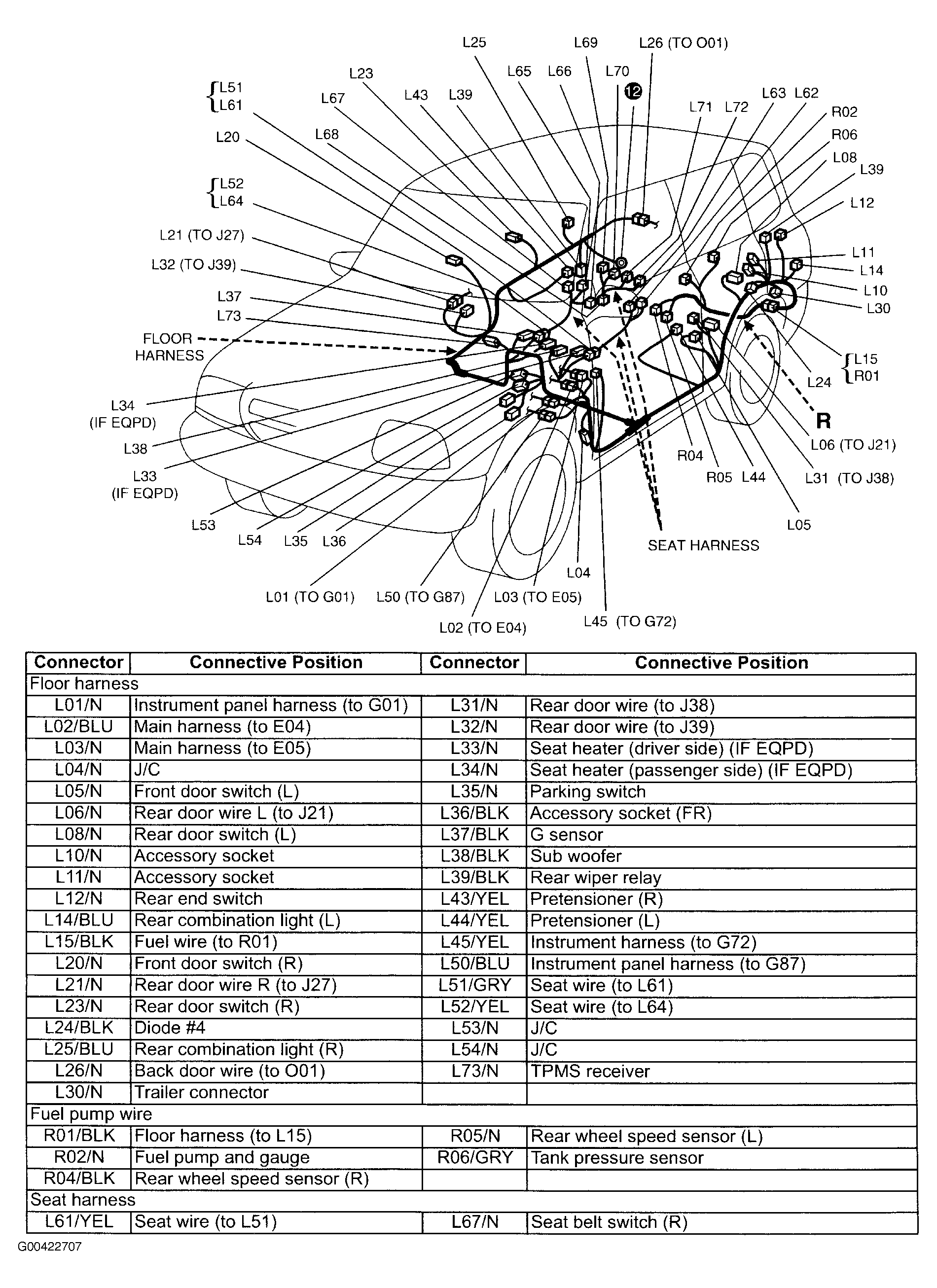

| OCM (L66) | In front passenger's seat. See Figure . |
| TCM (E228) | Right side of dash. See Figure . |
| TPMS Controller (G94) | Left side of dash. |
| 4WD Controller (E23) | Left side of dash. See Figure . |
