Fuel System Components
Fuel System Components

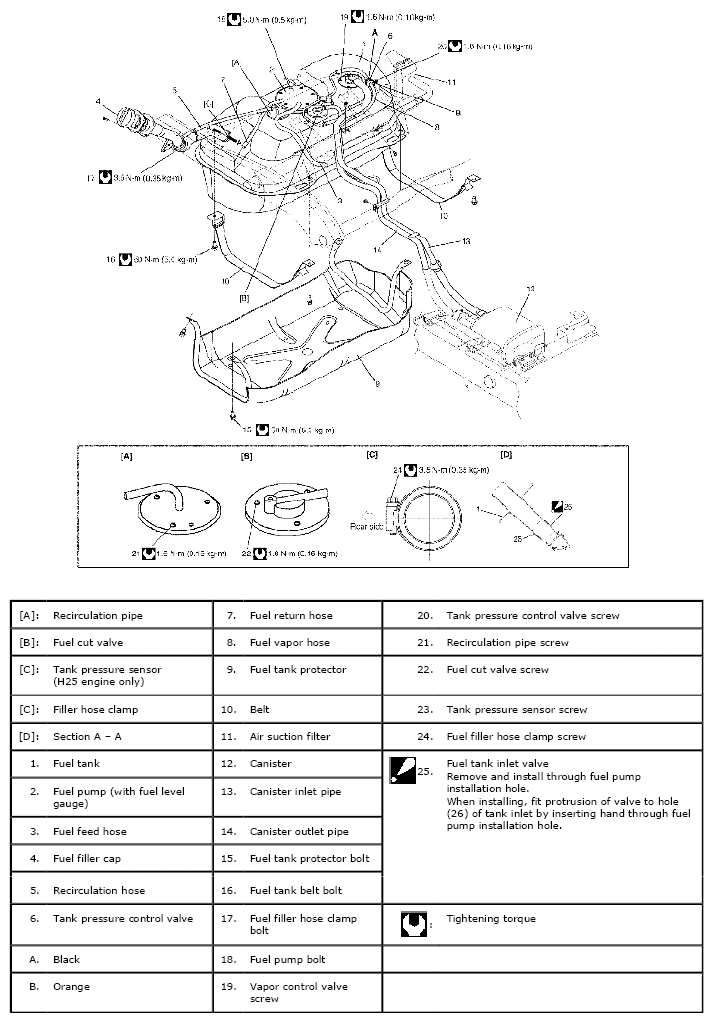

Fig 1: Fuel System Replacement Components With Torque Specifications (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

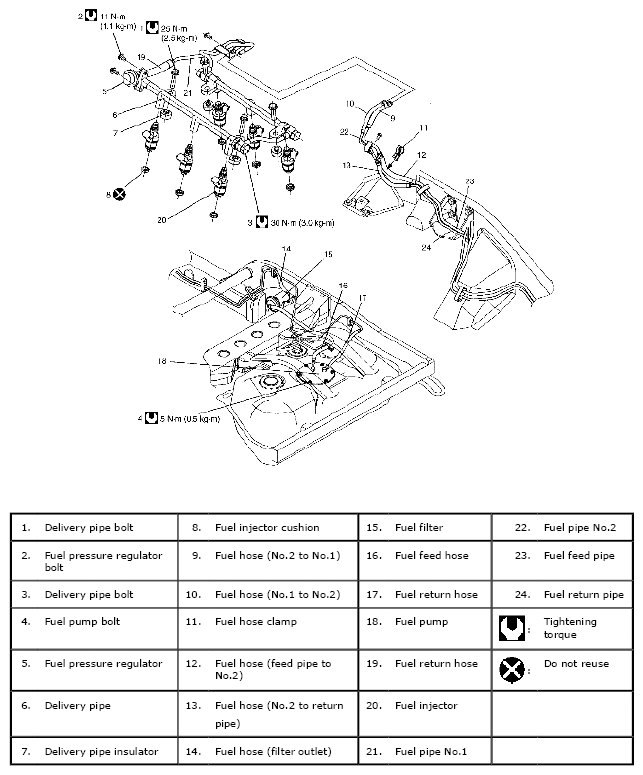

Fig 2: Fuel System Replacement Components With Torque Specifications (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
