Electronic Shift Control System Description: Notes

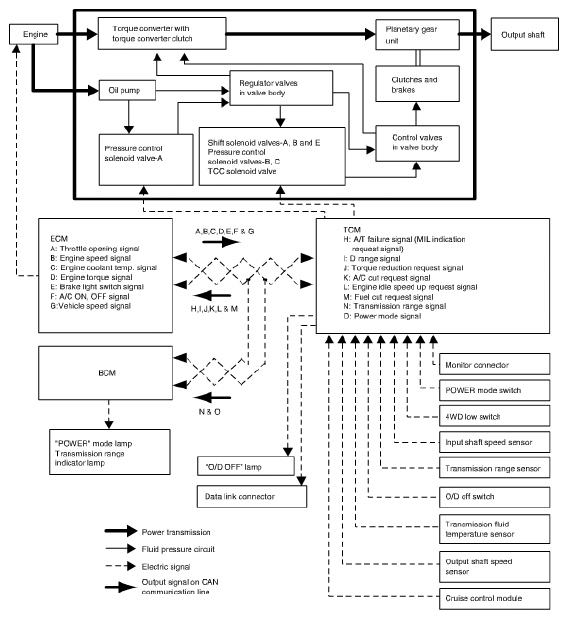

Fig 1: Electronic Shift Control System - Block Diagram

G04722525

Courtesy of SUZUKI OF AMERICA CORP.
