Learning Control Initialization

  1. Remove steering column hole cover (1).
  2. Using service wire, connect diagnosis switch terminal (3) and ground terminal (4) of blue monitor connector (2).

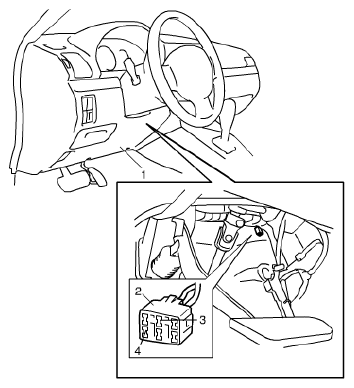

    Fig 1: Identifying Monitor Connector, Terminals & Steering Column Hole Cover
    G04722583Courtesy of SUZUKI OF AMERICA CORP.
  3. Turn ignition switch ON but engine stop.
  4. Shift select lever to "L" range.
  5. With brake pedal and accelerator pedal depressed fully, repeat ON and OFF operation of O/D OFF switch 5 times within 10 seconds.
  6. Confirm that O/D OFF lamp is turned OFF to complete memory initialization.
    NOTE: When initialization is achieved, "O/D OFF" lamp neither light nor flash unless diagnosis switch terminal is once disconnected from ground terminal of monitor connector. If initialization is failed, re-try initializing procedure.
