Automatic Transaxle Assembly Components

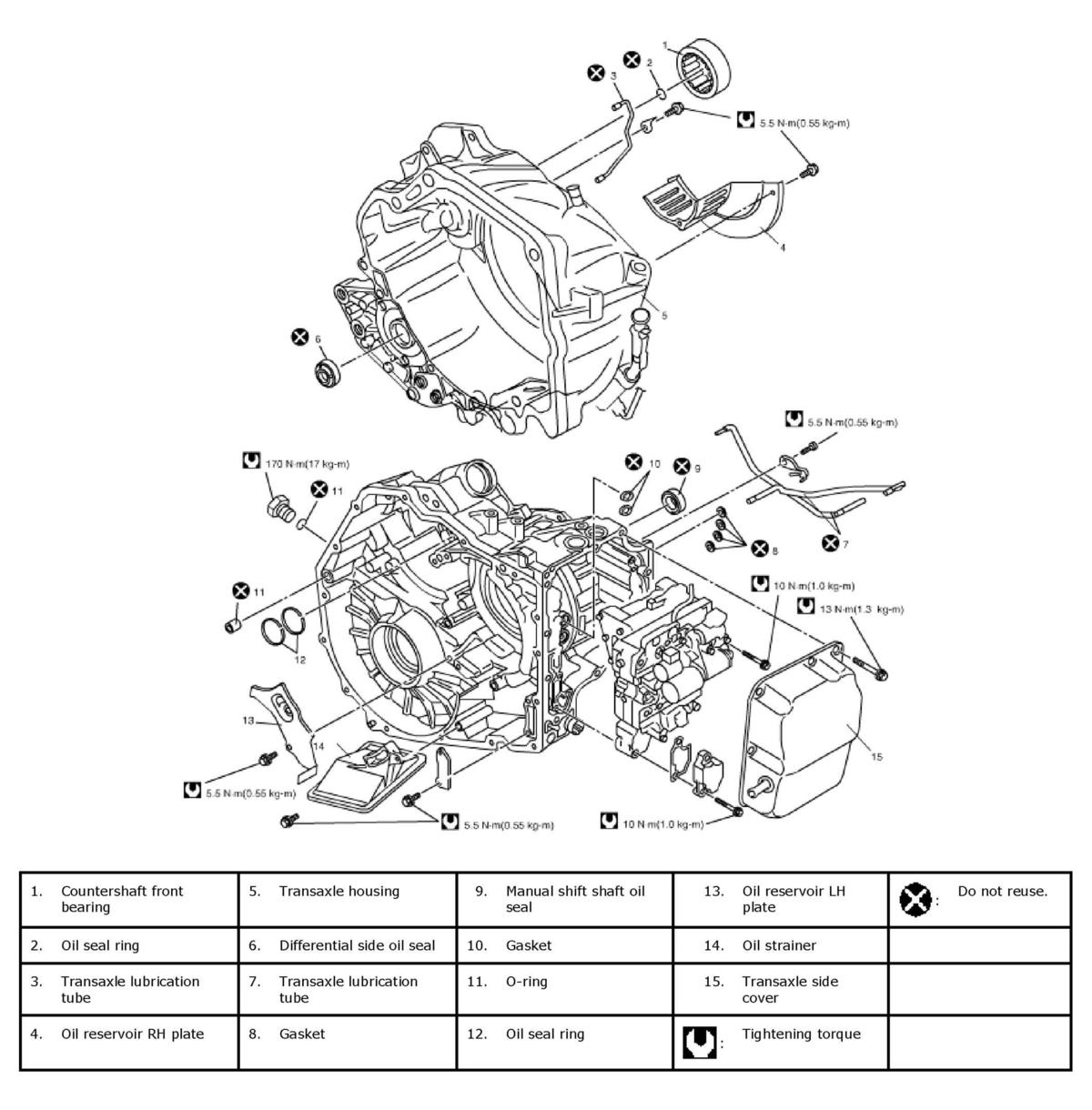

Fig 1: Identifying Automatic Transaxle Assembly Components (1 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

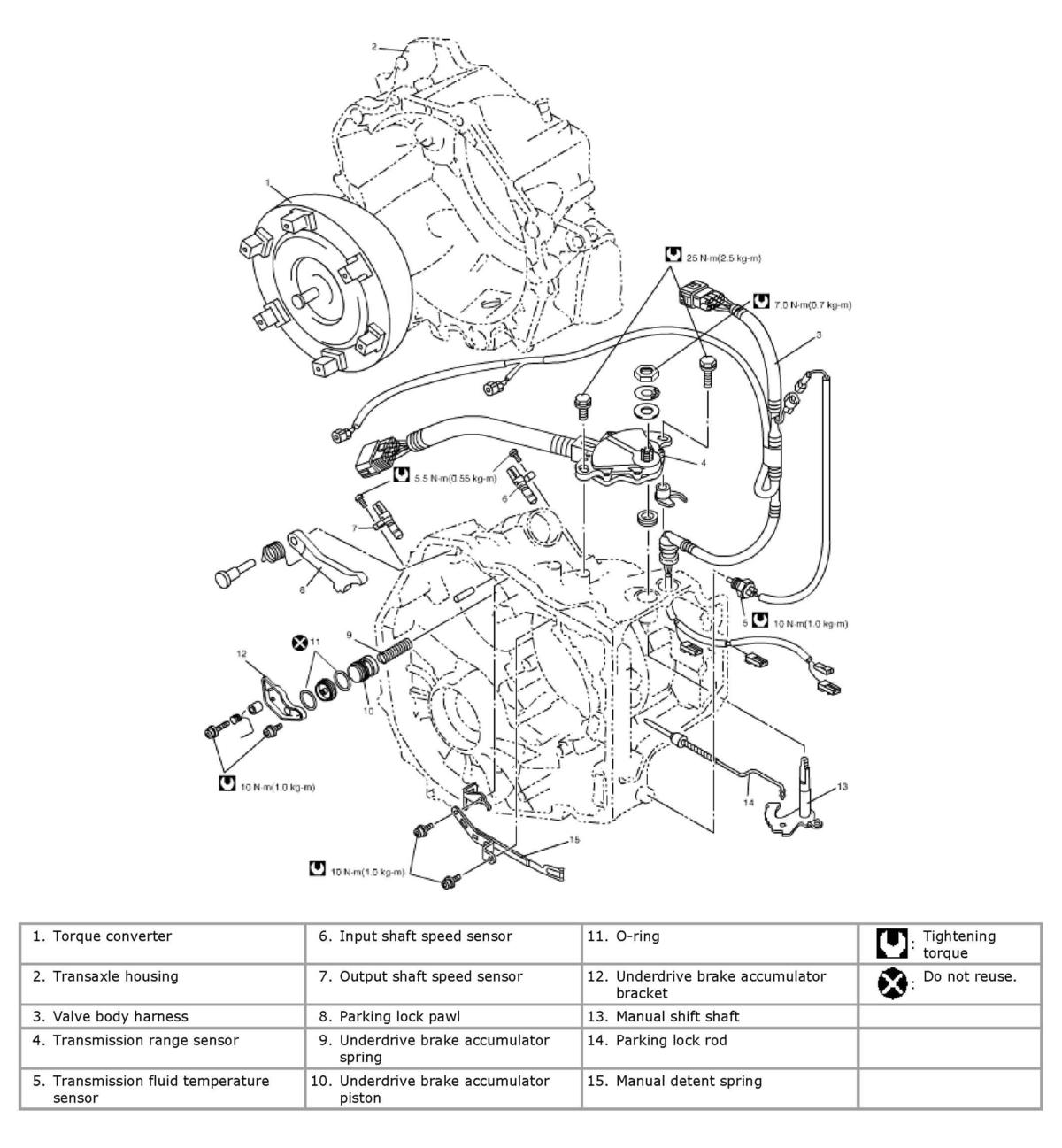

Fig 2: Identifying Automatic Transaxle Assembly Components (2 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.

Fig 3: Identifying Automatic Transaxle Assembly Components (3 Of 3)

Courtesy of SUZUKI OF AMERICA CORP.
