Valve Body Assembly Components

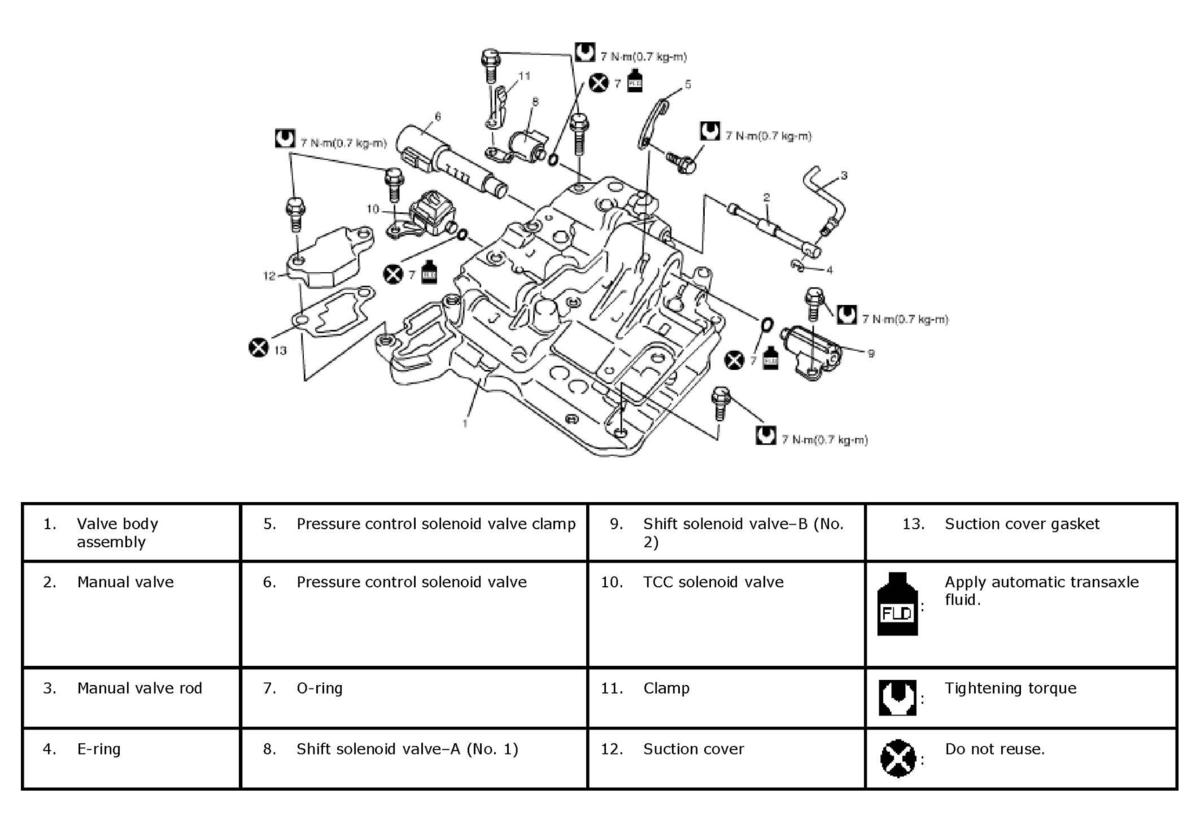

Fig 1: Identifying Valve Body Assembly Components With Tightening Torques
G04592054Courtesy of SUZUKI OF AMERICA CORP.
CAUTION: When replacing pressure control solenoid valve, it is strictly required to replace it together with valve body assembly as a set.
