Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

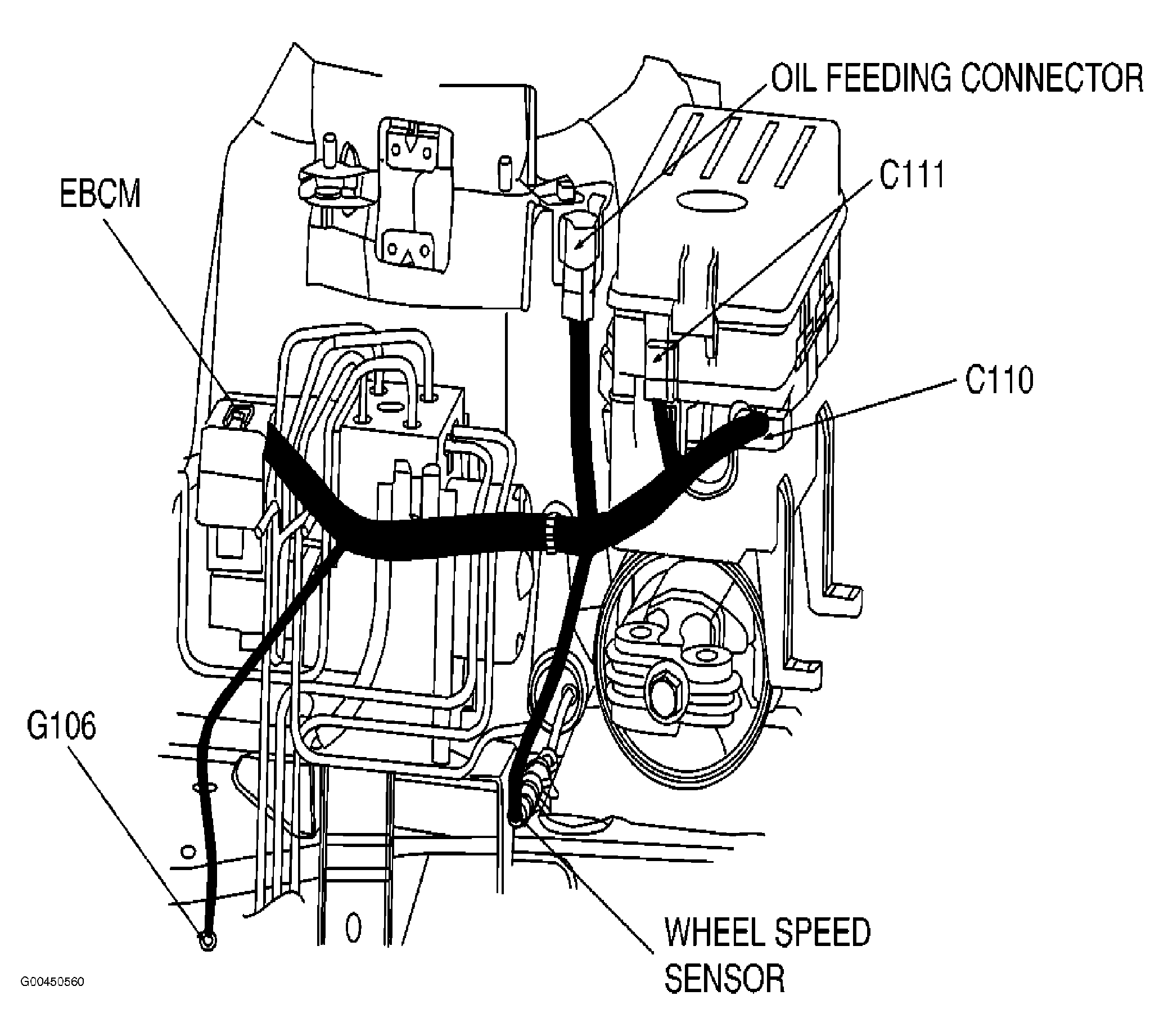

| EBCM | Left rear corner of engine compartment. See Figure. |

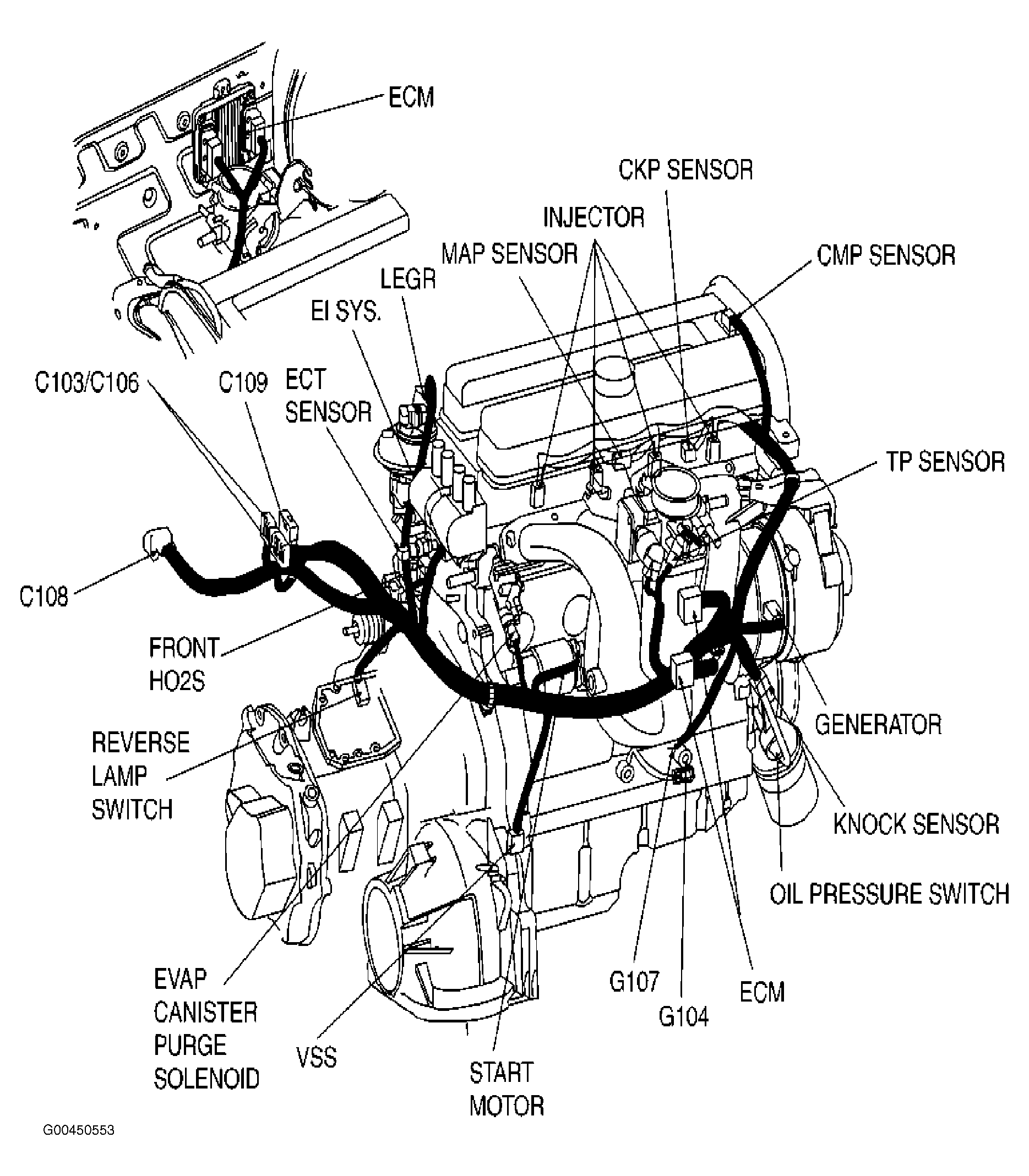

| ECM | Center rear of engine compartment. See Figure. |

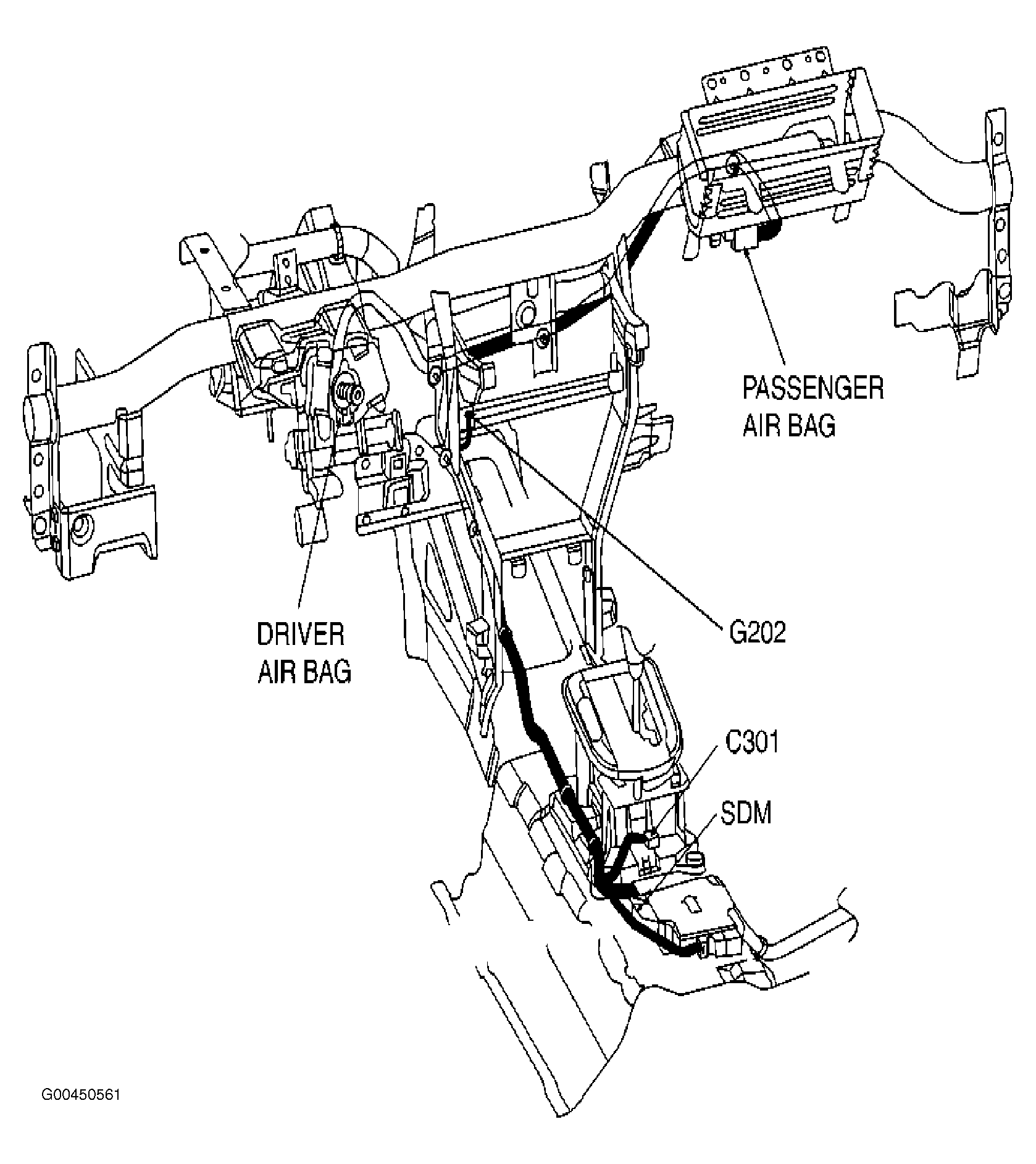

| SDM | Under rear of center console. See Figure. |

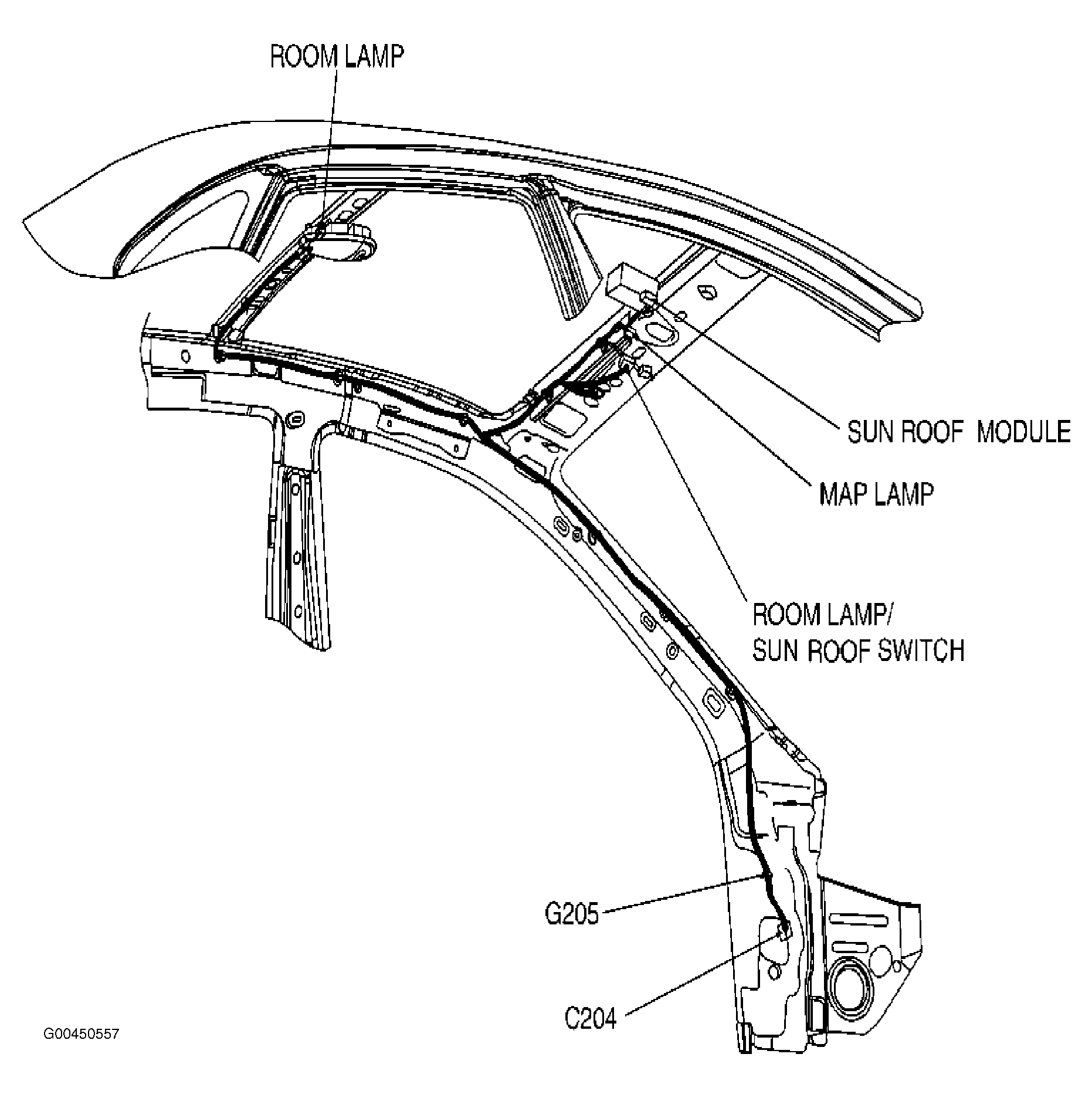

| Sun Roof Module | Center front of sun roof. See Figure. |

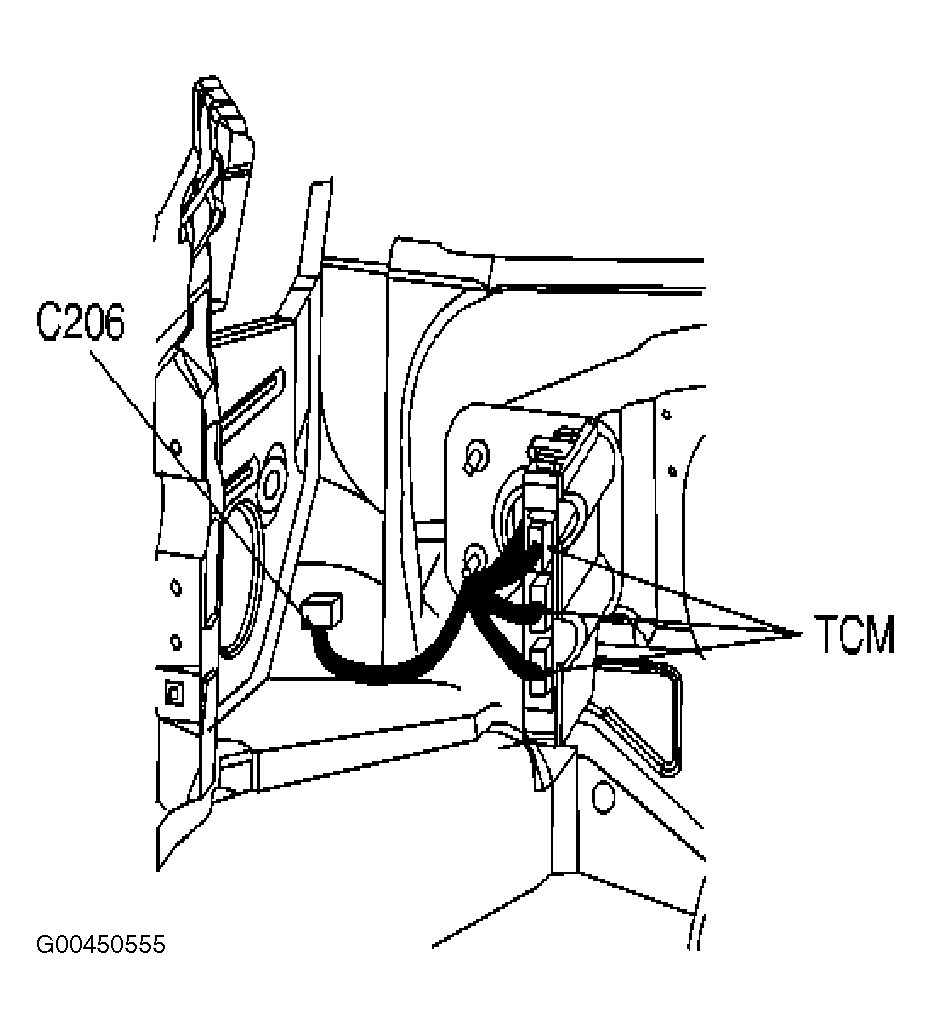

| TCM (Transmission Control Module) | Under left side of dash. See Figure. |

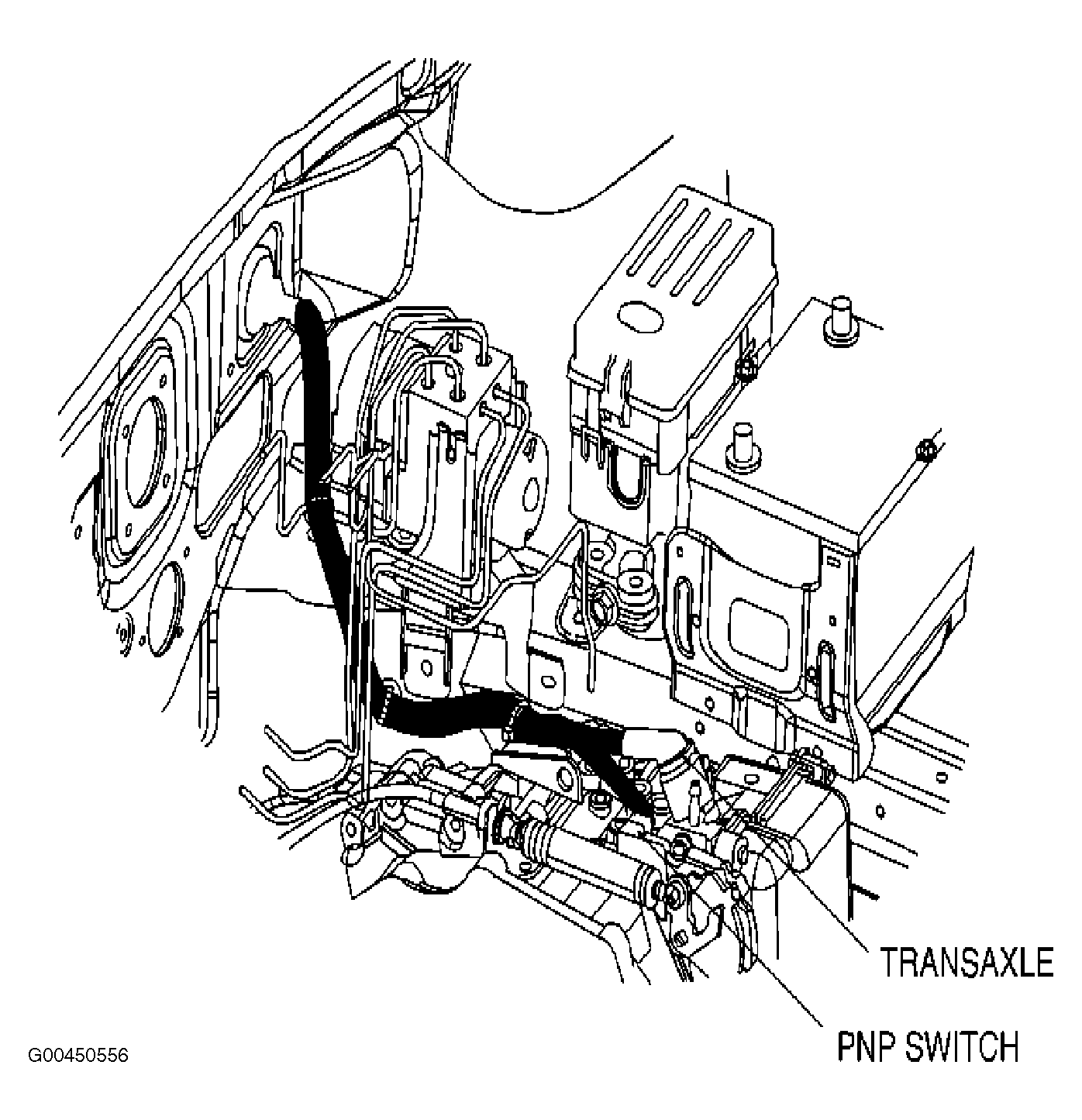

| Transaxle | Top of transaxle. See Figure. |
