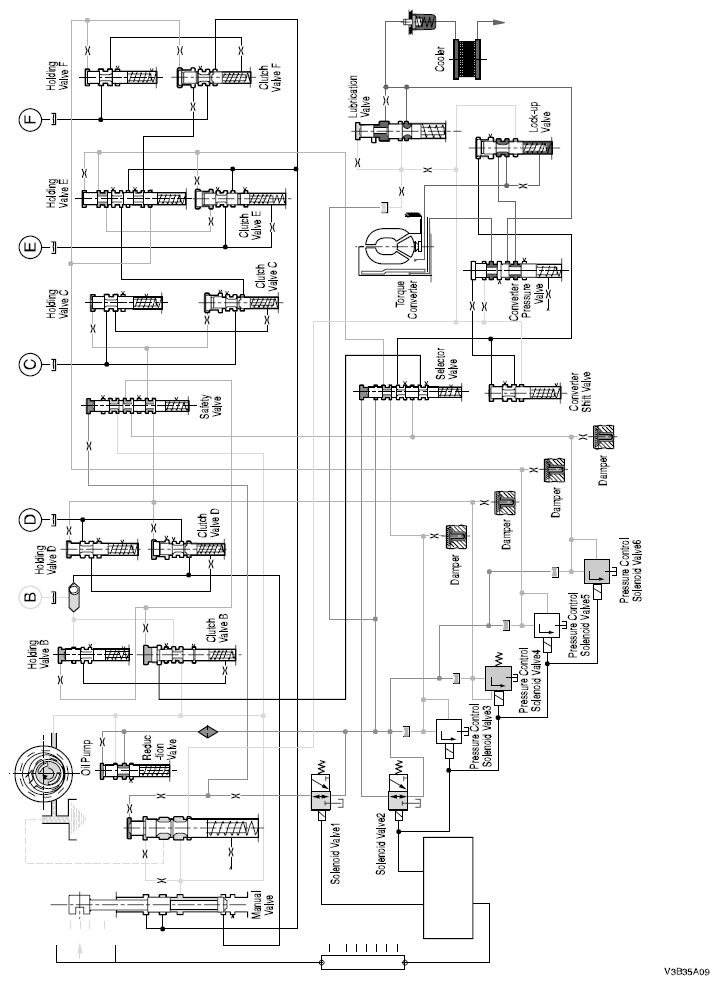

Power Flow Diagram: Park/Neutral: Notes
Courtesy of SUZUKI OF AMERICA CORP.
In Park or Neutral with the engine running there is no drive to the planetary gear set. Line pressure (from the oil pump) is supplied to the valve body. Only clutch B is supplied and the torque converter is released.
