Power Flow Diagram: Reverse: Notes

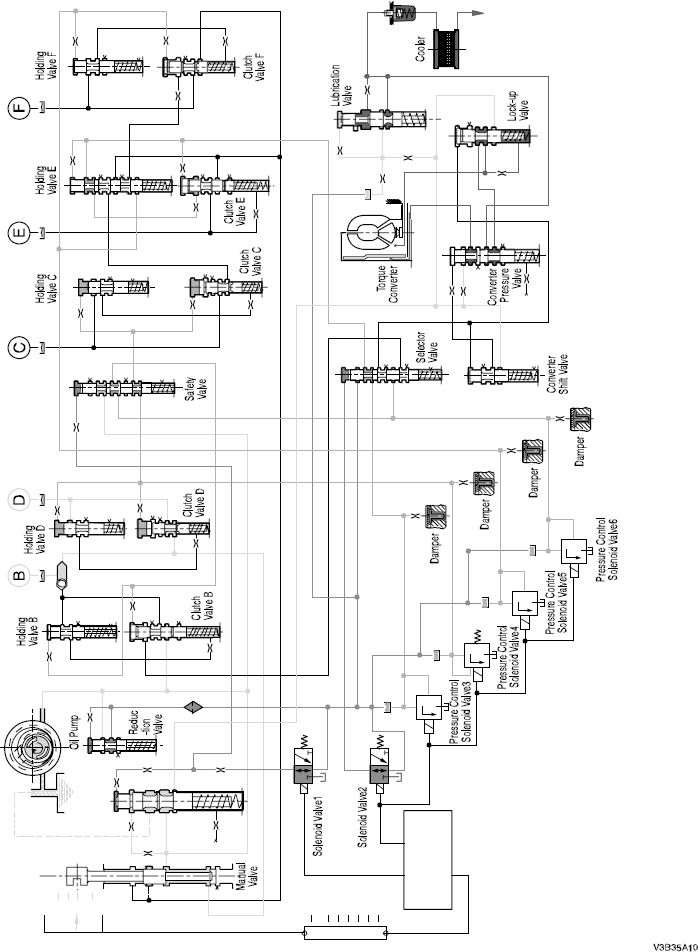

Fig 1: Power Flow Diagram (Reverse)

Courtesy of SUZUKI OF AMERICA CORP.

In Reverse, transaxle drive is via the input shaft and clutch B. The elements of this transaxle function are as follows:

• Clutch B is engaged and drives the reverse sun gear in a clockwise direction.
• The D band is engaged and holds the planetary gear carrier (front & rear) stationary causing the differential pinion to rotate clockwise.
• The differential rotates in a counterclockwise direction.
• The output shaft is driven in a counterclockwise or reverse direction.
