Transaxle Control Module (TCM) Removal and Installation: Installation

  1. Install the TCM into the bracket.
  2. Connect the wiring connectors.
  3. Connect the negative battery cable.

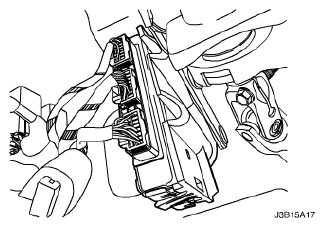

    Fig 1: Identifying Transaxle Control Module Wiring Connectors
    G04717254Courtesy of SUZUKI OF AMERICA CORP.
