Generator Inspection: Condenser

Check condenser capacity.

Condenser capacity

0.5 μF

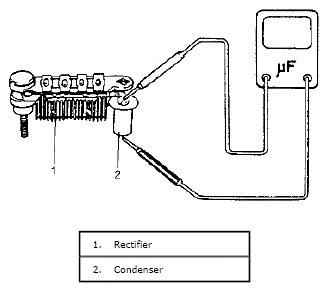

Fig 1: Checking Condenser Capacity

G04847124

Courtesy of SUZUKI OF AMERICA CORP.
