Generator Inspection: Stator

Using ohmmeter, check all leads for continuity. If there is no continuity, replace stator (1).

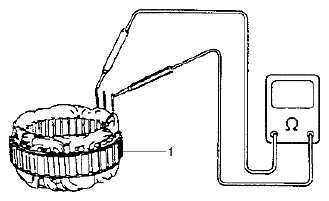

Fig 1: Checking Continuity Between Stator Coil Leads
Courtesy of SUZUKI OF AMERICA CORP.
Using ohmmeter, check that there is no continuity between coil leads (2) and stator core (1). If there is continuity, replace stator.

Fig 2: Checking Continuity Between Coil Leads And Stator Core
Courtesy of SUZUKI OF AMERICA CORP.
