Section 154 (Keyless Start System)
>>
General Description
>>
Can Communication Of Keyless Start System
>>
Keyless Start Control Module Transmission Data
Keyless Start Control Module Transmission Data
WARNING:
This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

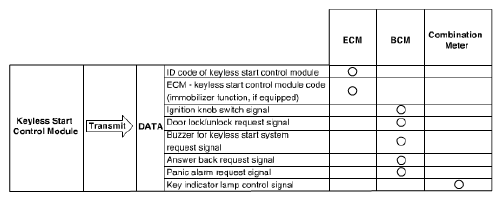

Fig 1: Keyless Start Control Module Transmission Data
Courtesy of SUZUKI OF AMERICA CORP.
