Electronic Shift Control System Components Location

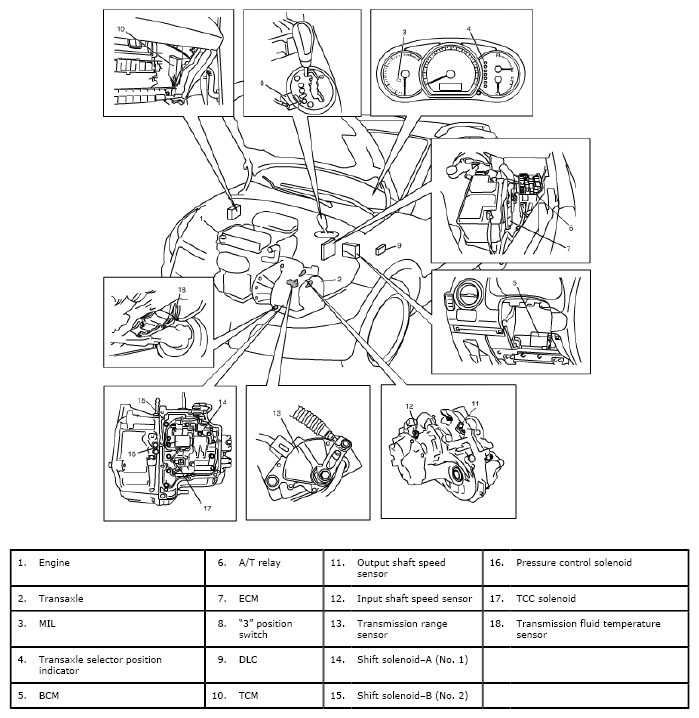

Fig 1: Identifying Electronic Shift Control System Components

G04847720

Courtesy of SUZUKI OF AMERICA CORP.
