Valve Body Assembly Components

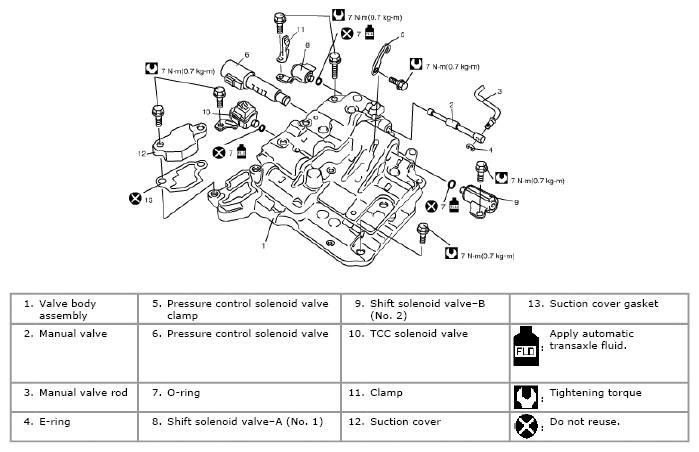

Fig 1: Exploded View Of Valve Body Assembly Components (With Torque Specifications)
G04847948Courtesy of SUZUKI OF AMERICA CORP.
CAUTION: When replacing pressure control solenoid valve, it is strictly required to replace it together with valve body assembly as a set.
