Transfer Assembly Components
Transfer Assembly Components

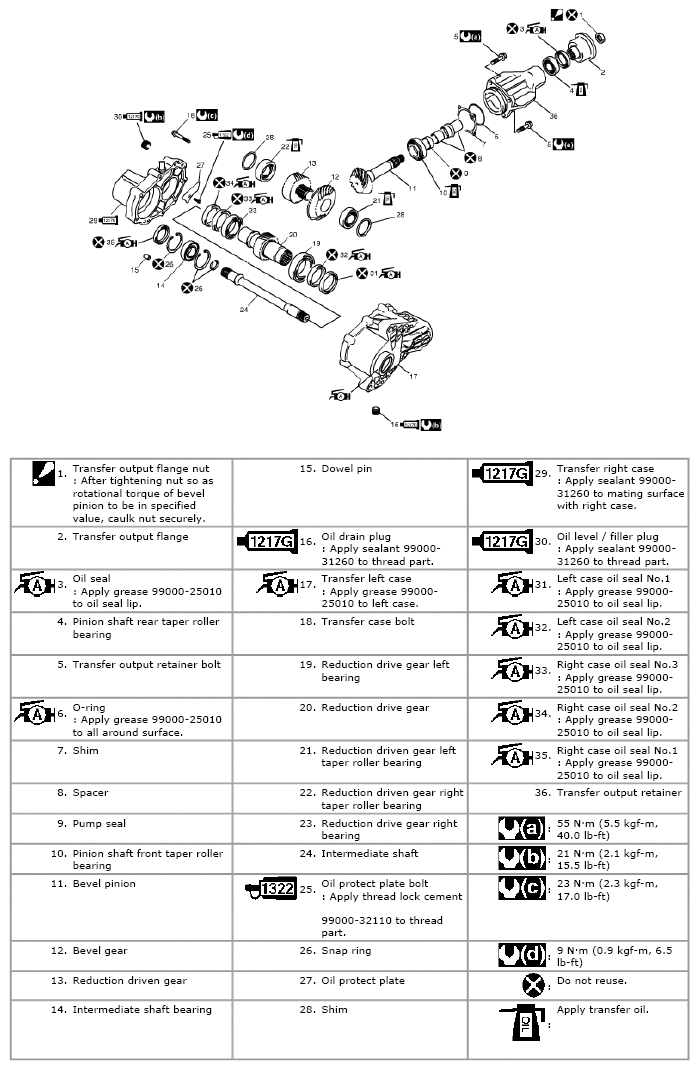

Fig 1: Exploded View Of Transfer Assembly Components
Courtesy of SUZUKI OF AMERICA CORP.
