Automatic Transmission Control Indicator Replacement

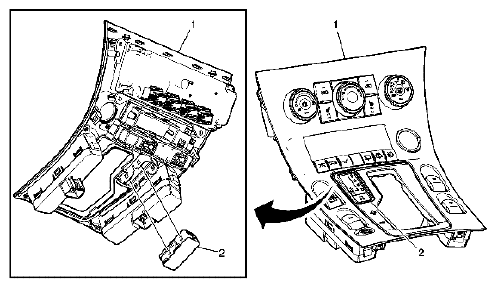

Fig 1: Identifying Automatic Transmission Control Indicator & Instrument Panel

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME REFERENCE

Callout	Component Name
Preliminary Procedures  Remove the shift control lever knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT . Remove the shift control lever boot. Refer to TRANSMISSION CONTROL BOOT REPLACEMENT .
1	Instrument Panel Lower Brace Bezel. Refer to INSTRUMENT PANEL LOWER BRACE BEZEL REPLACEMENT .
2	Transmission Control Indicator. Tip:  Release 4 retaining tabs to remove the transmission control indicator from the instrument panel lower brace bezel
