Engine Electrical Component Views

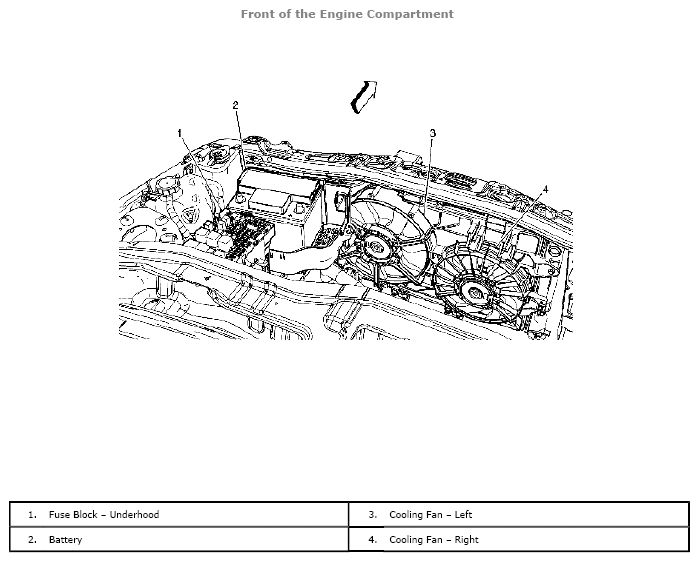

Fig 1: Engine Electrical Component Location (Front Of Engine Compartment)

Courtesy of SUZUKI OF AMERICA CORP.

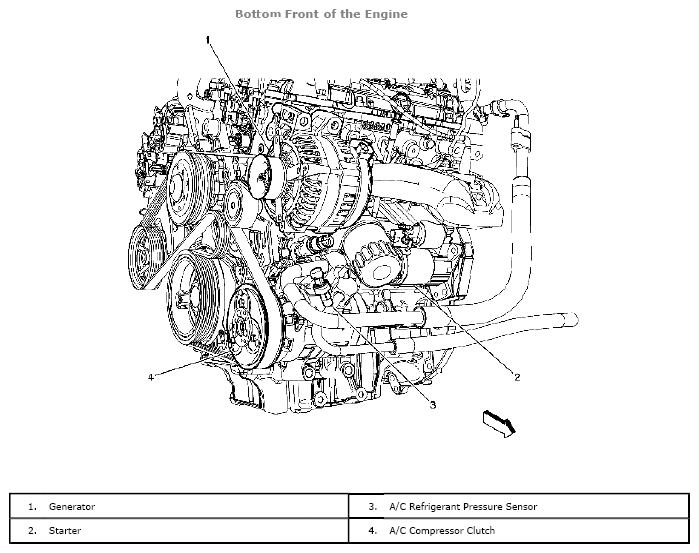

Fig 2: Engine Electrical Component Location (Bottom Front Of Engine)

Courtesy of SUZUKI OF AMERICA CORP.

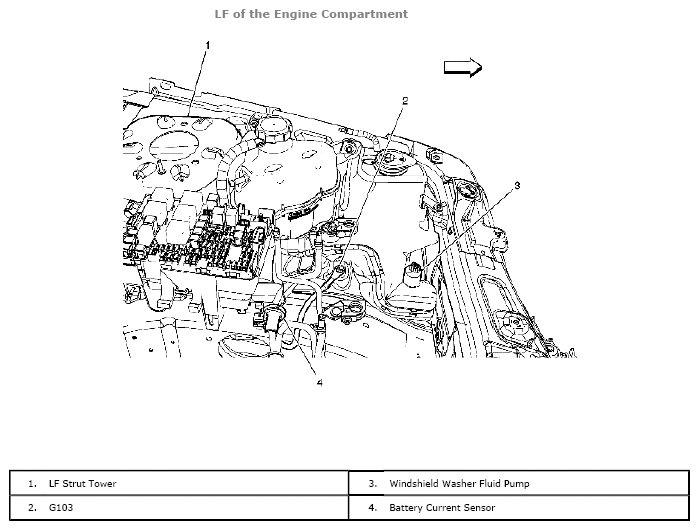

Fig 3: Engine Electrical Component Location (LF Of Engine Compartment)

Courtesy of SUZUKI OF AMERICA CORP.
