Engine Electrical Component Views

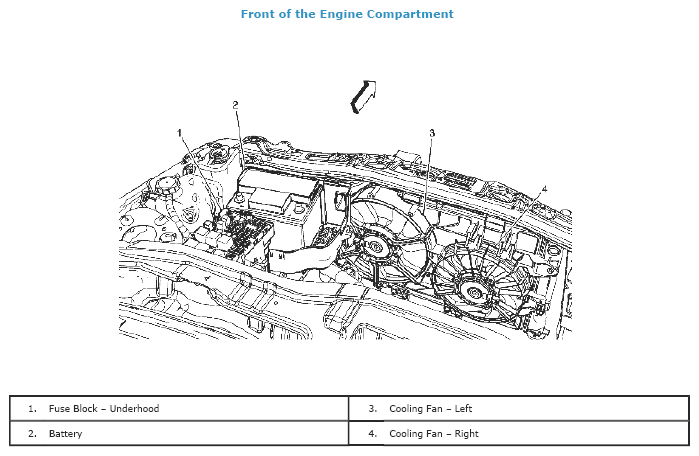

Fig 1: Identifying Engine Electrical Components - Front Of Engine Compartment
G04844196Courtesy of SUZUKI OF AMERICA CORP.

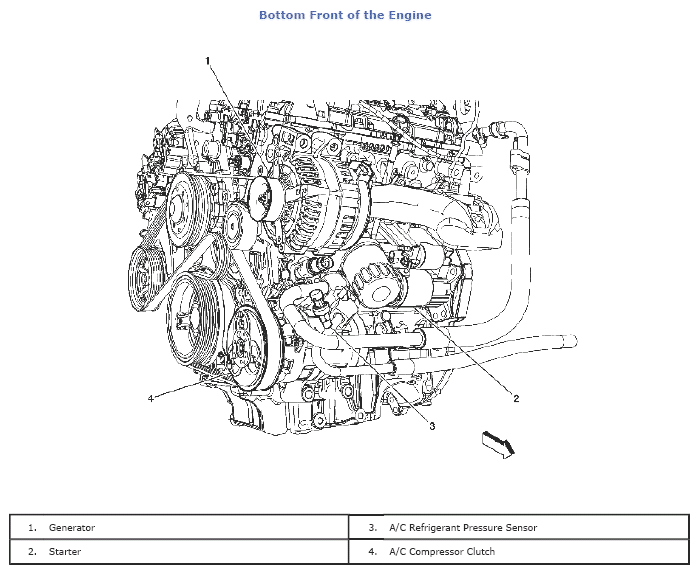

Fig 2: Identifying Engine Electrical Components - Bottom Front Of Engine
G04844197Courtesy of SUZUKI OF AMERICA CORP.

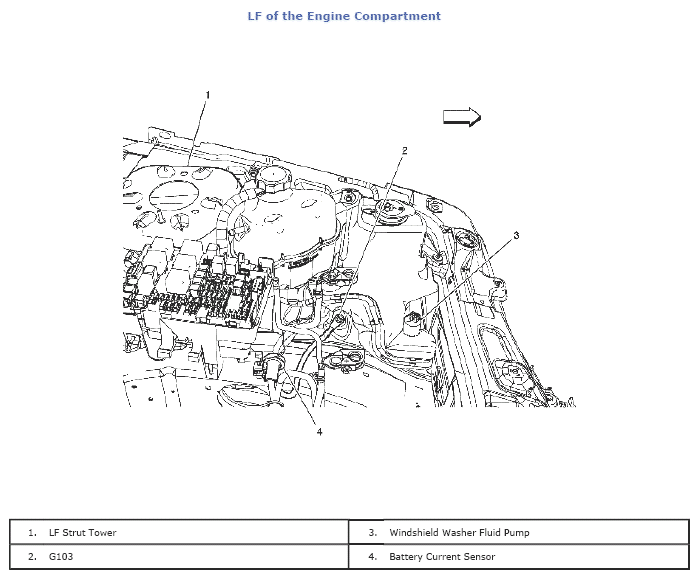

Fig 3: Identifying Engine Electrical Components - LF Of Engine Compartment
G04844198Courtesy of SUZUKI OF AMERICA CORP.
