Home >> Suzuki >> 2007 >> XL7 Base, FWD >> Repair and Diagnosis >> Transmission >> Automatic Transmission >> Component Location >> Shift Lock Control Component Views

Shift Lock Control Component Views

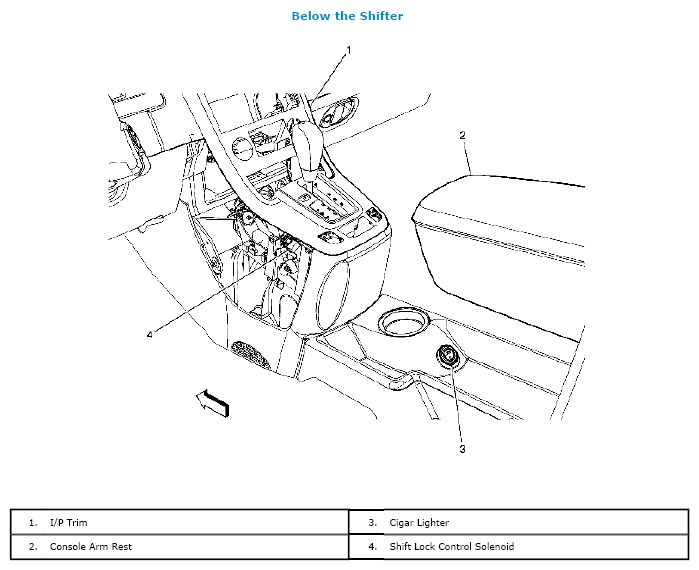

Fig 1: Identifying Shift Lock Control Component - Below Shifter
G04845829Courtesy of SUZUKI OF AMERICA CORP.
