Transmission Control Boot Replacement

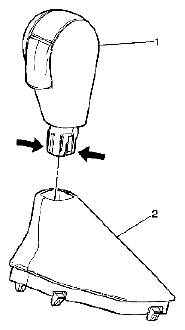

Fig 1: Identifying Shift Control Lever Boot & Shift Control Knob

Courtesy of SUZUKI OF AMERICA CORP.

CALLOUT AND COMPONENT NAME REFERENCE

Callout	Component Name
1	Shift Control Knob. Tip:  Remove the shift control lever knob. Refer to TRANSMISSION CONTROL LEVER KNOB REPLACEMENT .
2	Shift Control Lever Boot Tip:  Depress the retainer tabs on both sides of the shift control knob in order to release the shift control boot.
