Shift Lock Control Component Views (Notchback)

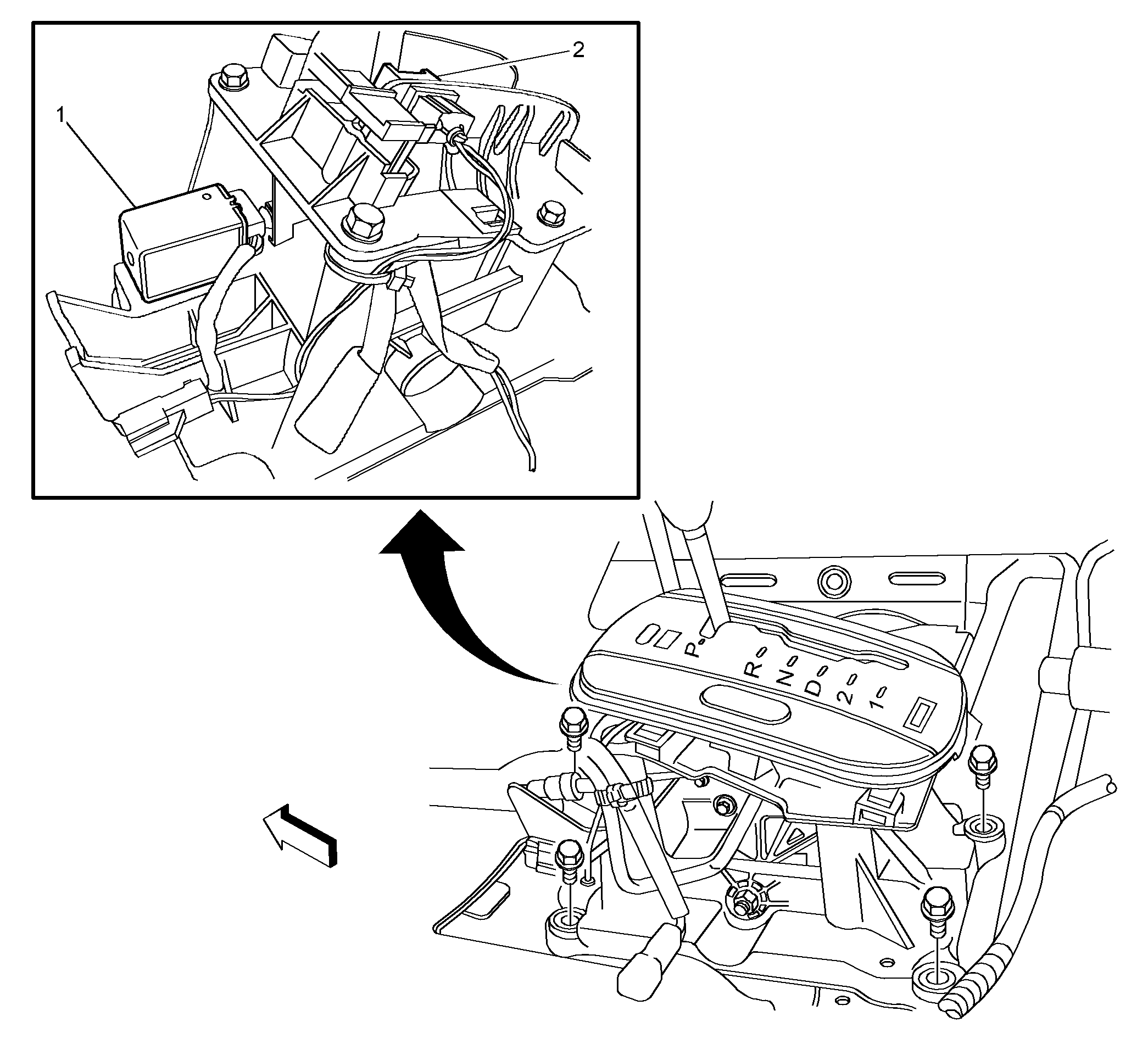

Fig 1: Shift Lock Control Component Views (Notchback)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Automatic Transmission Shift Lock Control Solenoid
2	Park Position Switch
