Installation Procedure

Fig 1: Identifying Battery, Battery Box, Battery Hold Down And Washer

Courtesy of SUZUKI OF AMERICA CORP.

Position the battery (1) in the battery box (2).
Install the washer (3) and battery hold down (4).
CAUTION: Refer to FASTENER NOTICE .
Install the hold down bolt (5).
Tightening torque

Tighten the hold down bolt to 15 N.m (11 lb ft).

Fig 2: Identifying Positive And Negative Battery Cables
Courtesy of SUZUKI OF AMERICA CORP.
Install the positive and negative battery cables. Refer to BATTERY NEGATIVE CABLE DISCONNECTION AND CONNECTION .

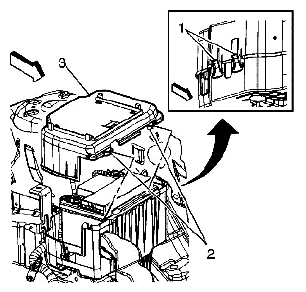

Fig 3: Installing Battery Lid
Courtesy of SUZUKI OF AMERICA CORP.
Position the battery lid (3) so that the alignment tabs (2) are in position.
Lock the locking tabs (1) on the side of the battery box.

Fig 4: Identifying PCM And Battery Box Cover
Courtesy of SUZUKI OF AMERICA CORP.
Install the PCM (2) on the battery box cover (1).
