Installation Procedure

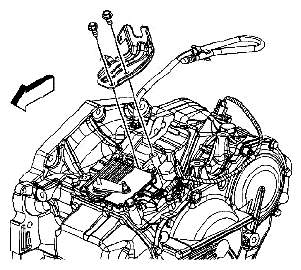

Fig 1: Identifying Shift Control Cable Bracket Bolts And Shift Control Cable Bracket

Courtesy of SUZUKI OF AMERICA CORP.

Install the transaxle shift control bracket.
CAUTION: Refer to FASTENER NOTICE .
Install the transaxle shift control bracket.
Tightening torque

Tighten the bolts to 25 N.m (18 lb ft).

Fig 2: Identifying Shift Control Cable, Transaxle Range Switch Lever And Shift Control Cable Retainer Clip Tabs
Courtesy of SUZUKI OF AMERICA CORP.
Install the shift control cable (2) to the shift control cable bracket (3). Ensure the shift control cable retaining tabs fully engage the shift control cable bracket.
Connect the shift control cable (1) to the transaxle range switch lever (4).
Install the battery tray. refer to BATTERY TRAY REPLACEMENT .
