Transmission Control Module Installation

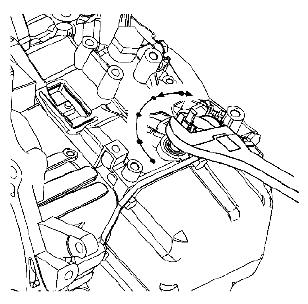

Fig 1: Turning Manual Shaft

Courtesy of SUZUKI OF AMERICA CORP.

Using an adjustable wrench on the manual shaft detent lever (710), turn the shaft clockwise until it stops.
Turn the shaft counter-clockwise one position to the neutral location. To verify turning the shaft in the correct direction, on the manual shaft detent lever (710) the reverse position is larger and more resistance can be felt.

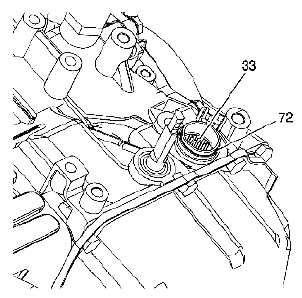

Fig 2: Identifying Wiring Harness Assembly And TCM Seal
Courtesy of SUZUKI OF AMERICA CORP.
Inspect the condition of the connector pins on the wiring harness assembly (33) for foreign material, bent pins, or broken pins.
Ensure the TCM seal (72) is installed.

Fig 3: Turning Slot In TCM For Aligning Marks
Courtesy of SUZUKI OF AMERICA CORP.
Turn the slot in the TCM to align the two marks. Do not turn more than 60 degrees.

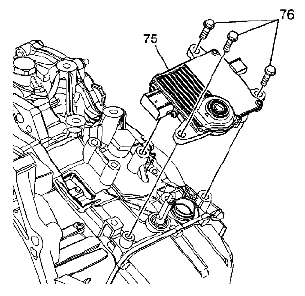

Fig 4: Identifying TCM Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the TCM (75) over the manual shaft detent lever (710) and into the wire connector.
CAUTION: Refer to FASTENER NOTICE .
Install the three bolts (76).
Tightening torque

Tighten the TCM bolts to 25 N.m (18 lb ft).

Reference: INPUT AND OUTPUT SPEED SENSOR INSTALLATION
