Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

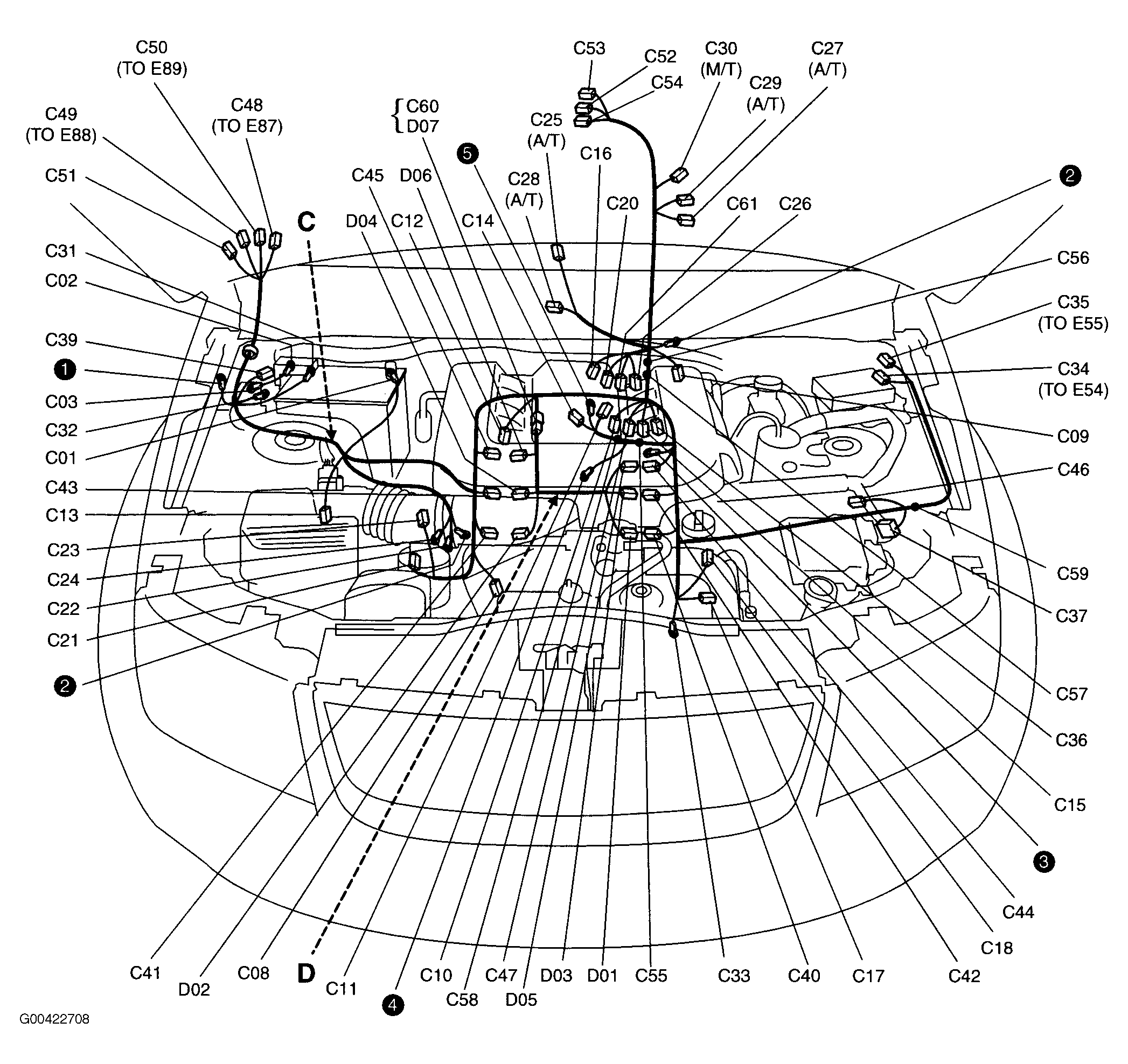

| Battery Fuse Box (C02) | On battery. See Figure. |

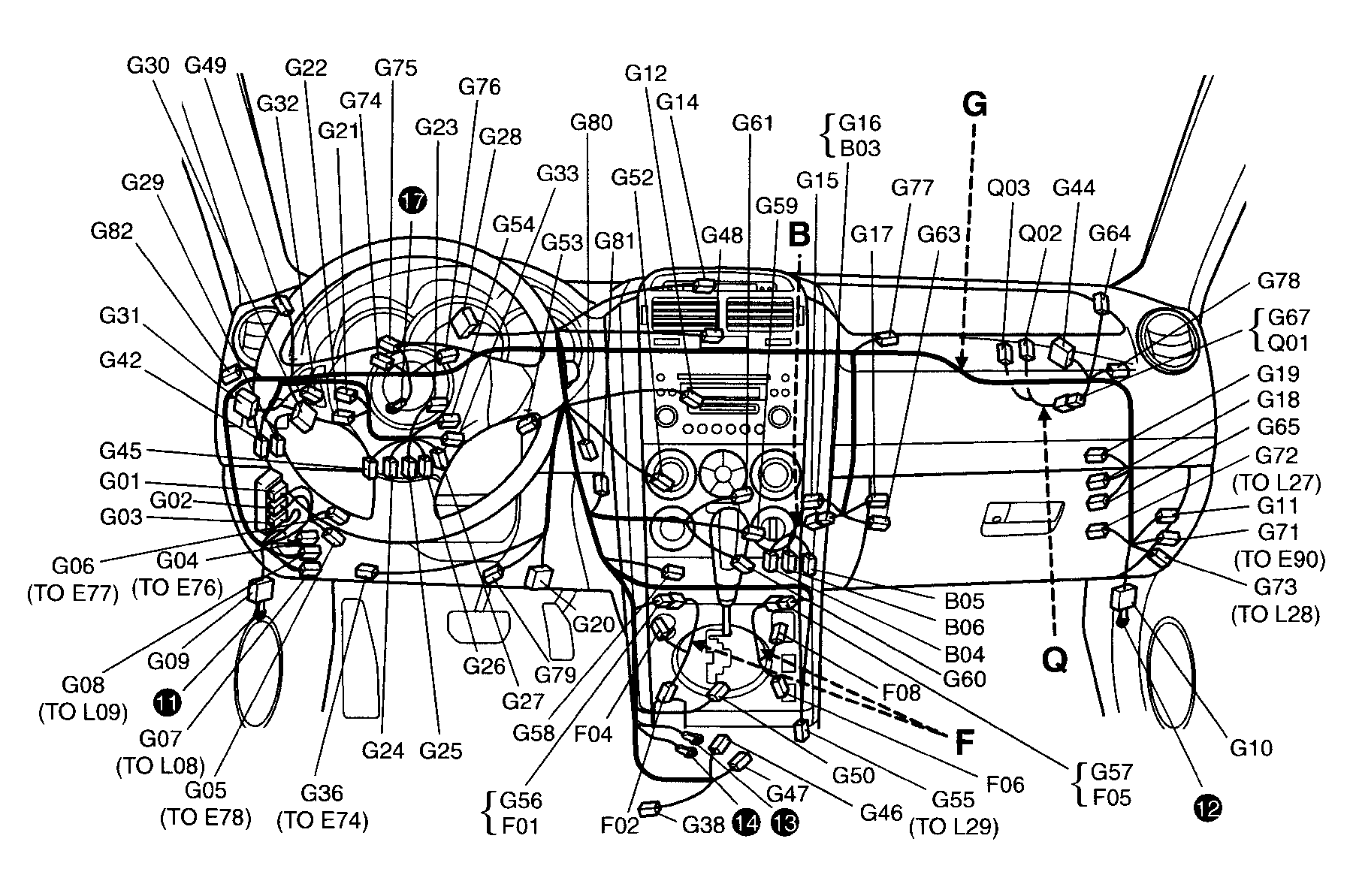

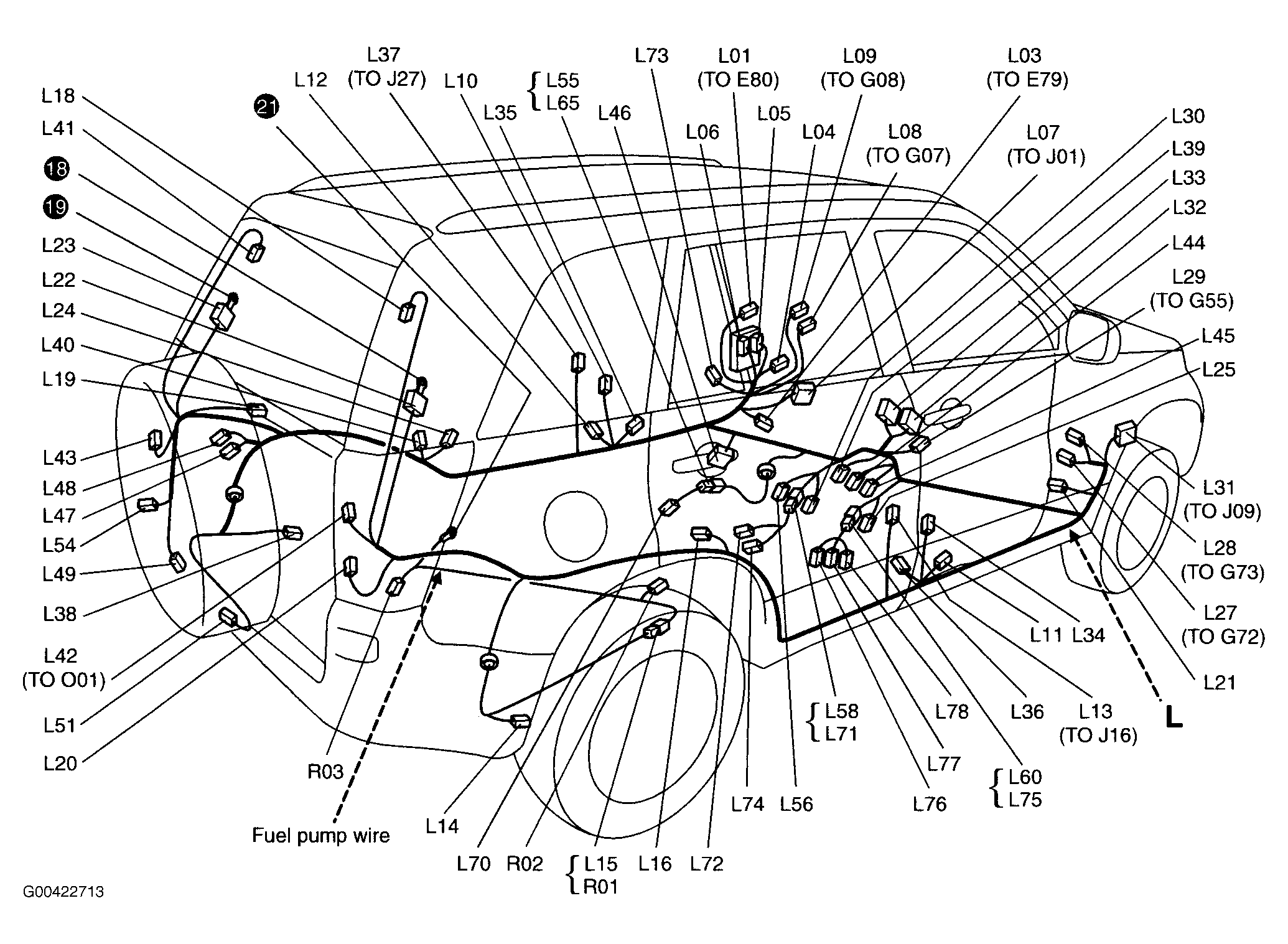

| Diode No. 2 (G19) | Behind right side of dash. See Figure. |
| Diode No. 3 (L21) | Behind right kick panel. See Figure. |

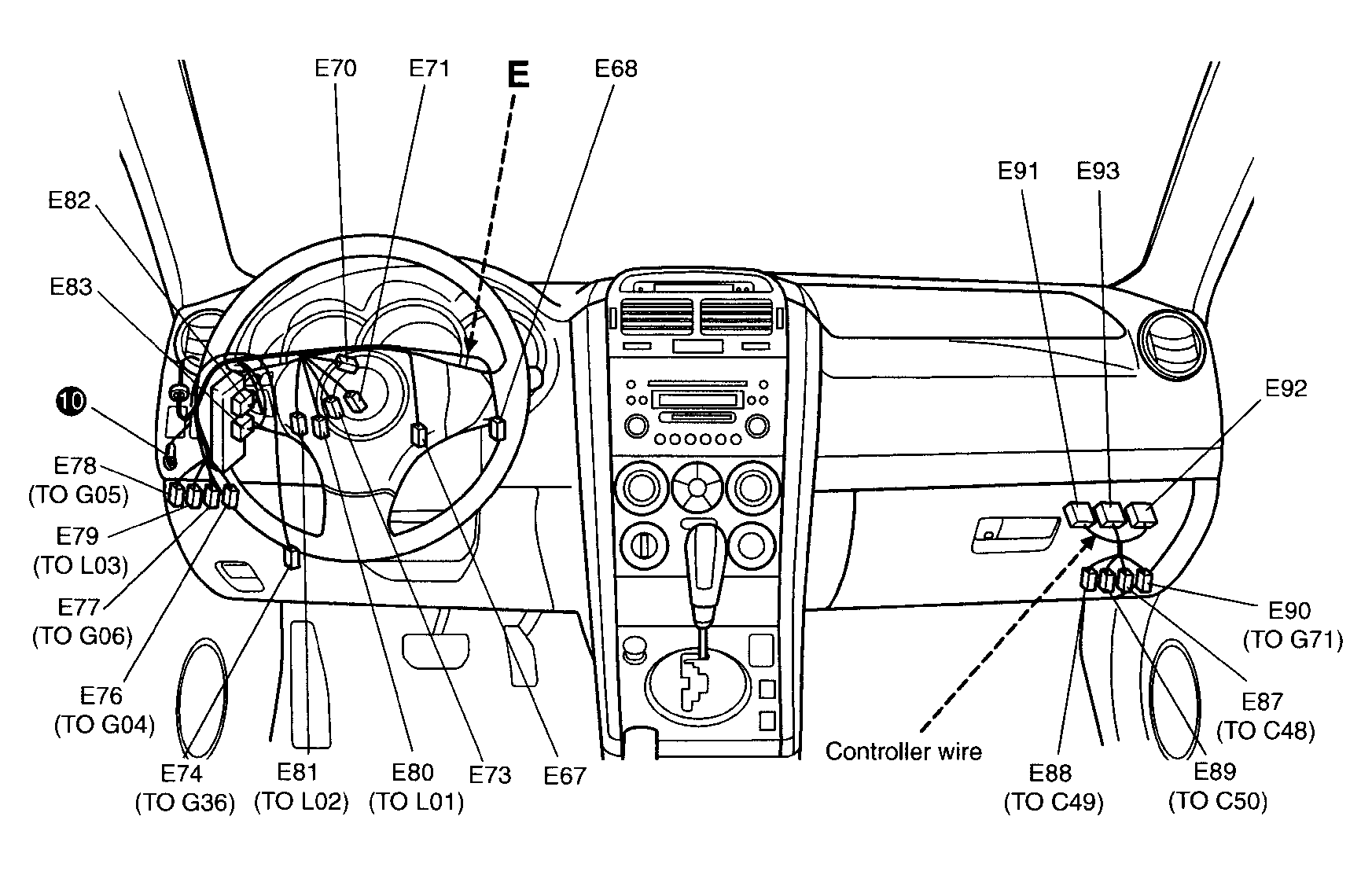

| Diode #1 (E70) | Behind instrument cluster. See Figure. |
| Fuse Box No. 1 (C03) | Right rear of engine compartment. See Figure. |

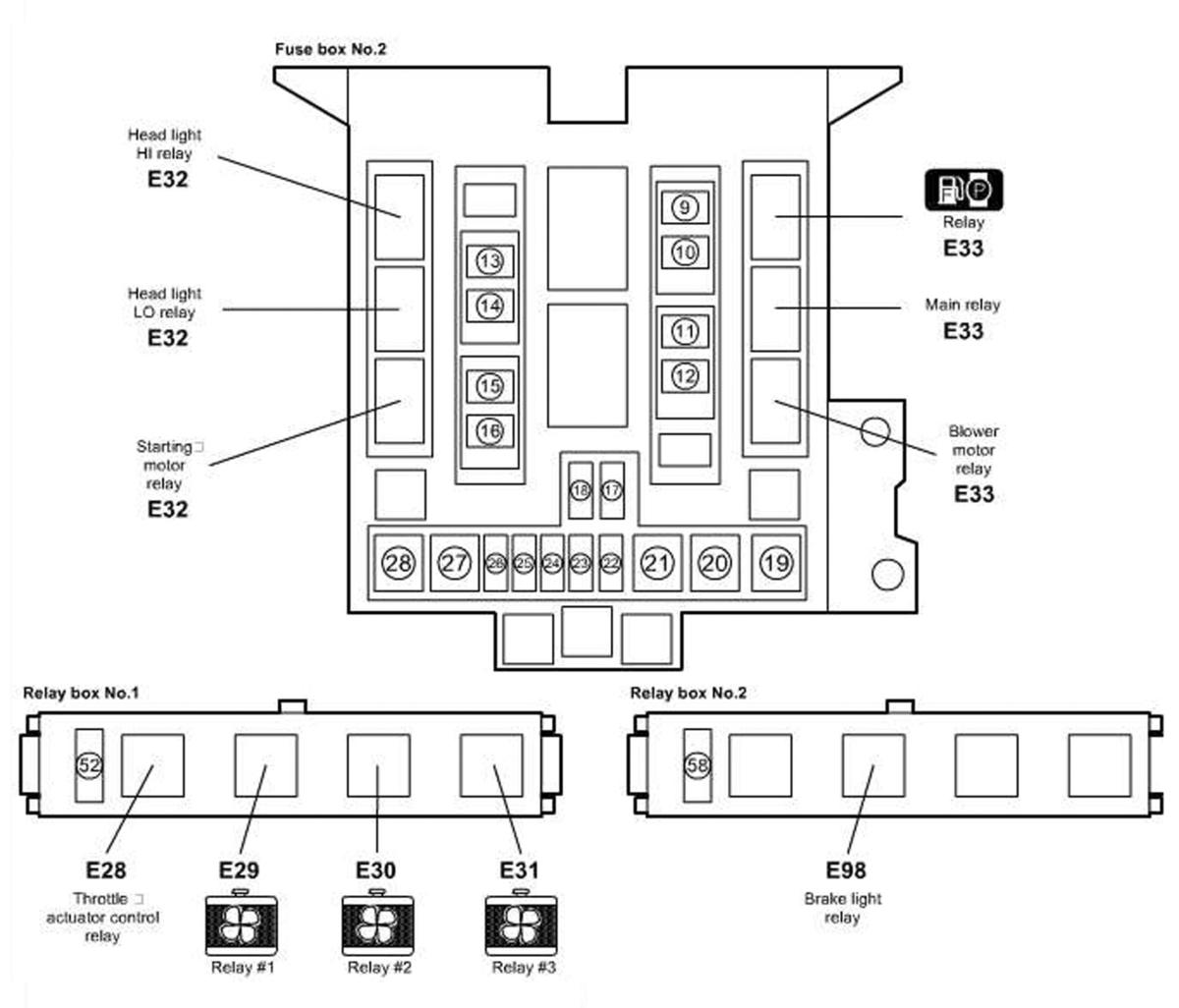

| Fuse Box No. 2 | Left rear of engine compartment. See Figure. |
| Junction Block (J/B) (E83) | Behind left side of dash. See Figure. |
| Relay Box | Left side of engine compartment. |
