Mode 6 - SUZUKI: Equator

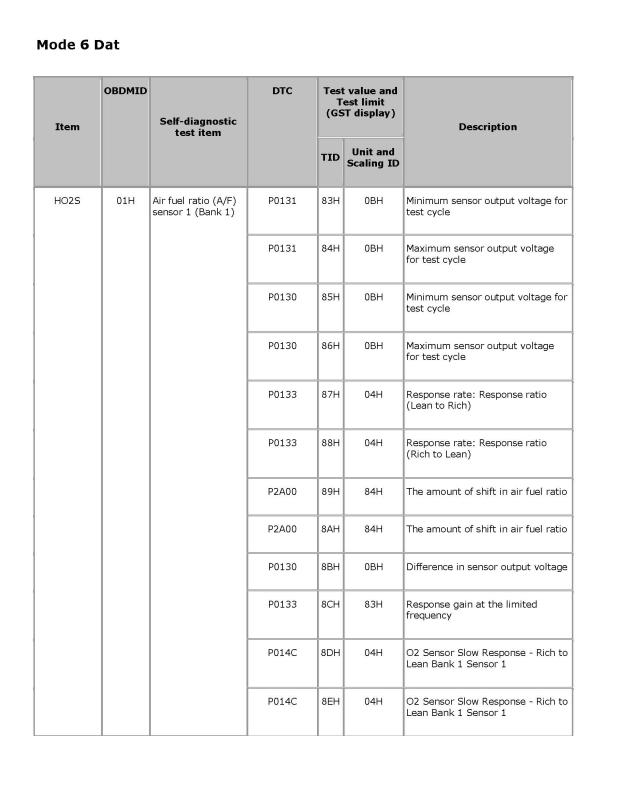

Fig 1: Mode $06 Data For Equator (1 Of 10)

G00525792

Courtesy of SUZUKI OF AMERICA CORP.

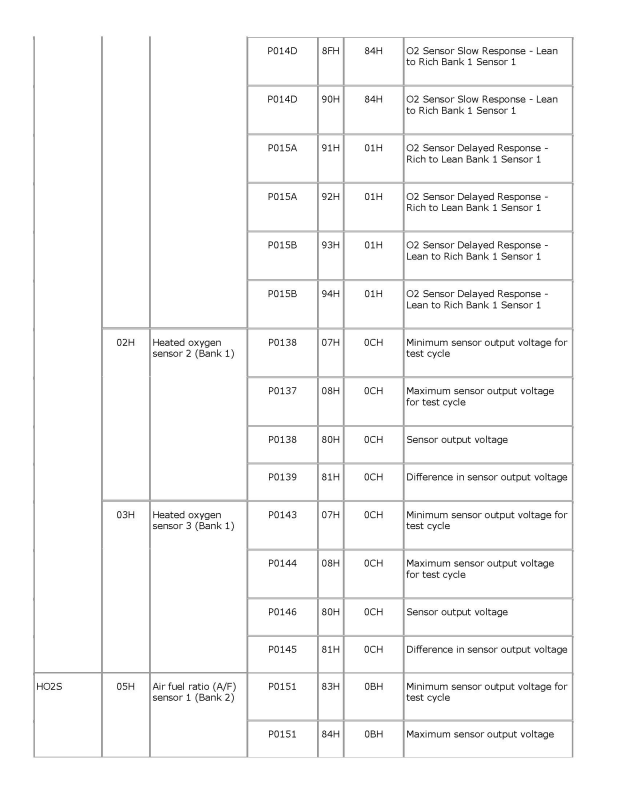

Fig 2: Mode $06 Data For Equator (2 Of 10)

G00525793

Courtesy of SUZUKI OF AMERICA CORP.

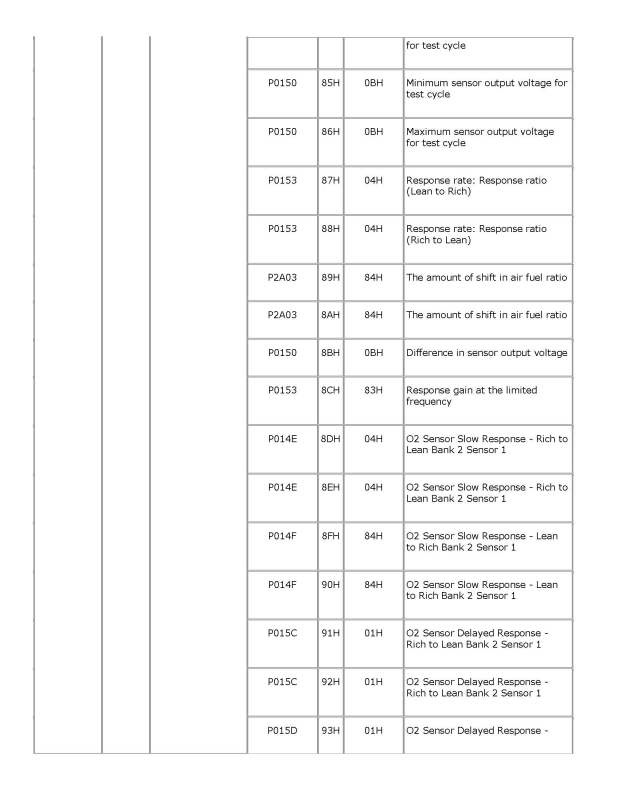

Fig 3: Mode $06 Data For Equator (3 Of 10)

G00525794

Courtesy of SUZUKI OF AMERICA CORP.

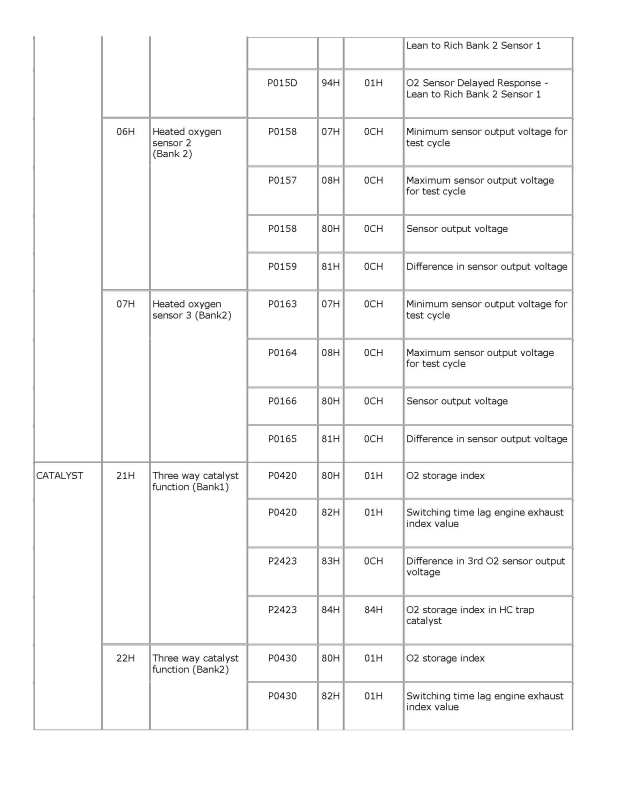

Fig 4: Mode $06 Data For Equator (4 Of 10)

G00525795

Courtesy of SUZUKI OF AMERICA CORP.

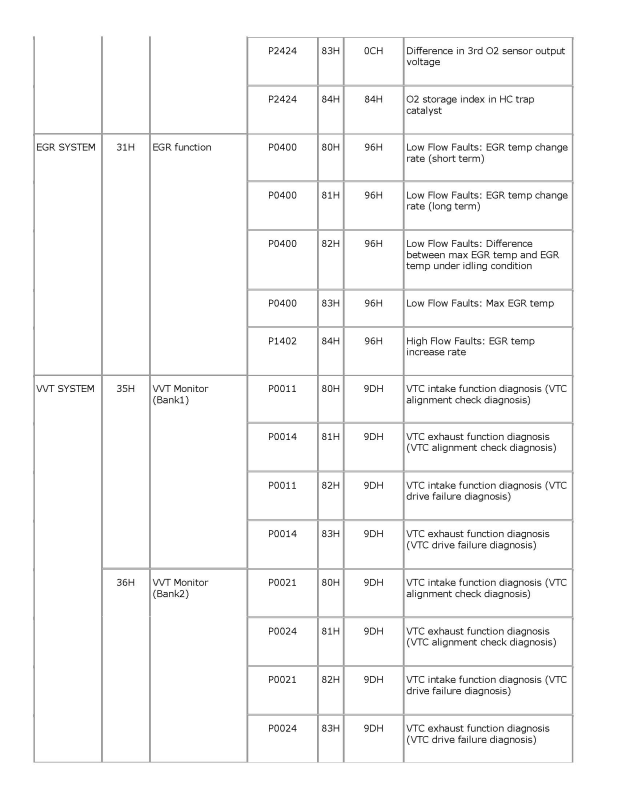

Fig 5: Mode $06 Data For Equator (5 Of 10)

G00525796

Courtesy of SUZUKI OF AMERICA CORP.

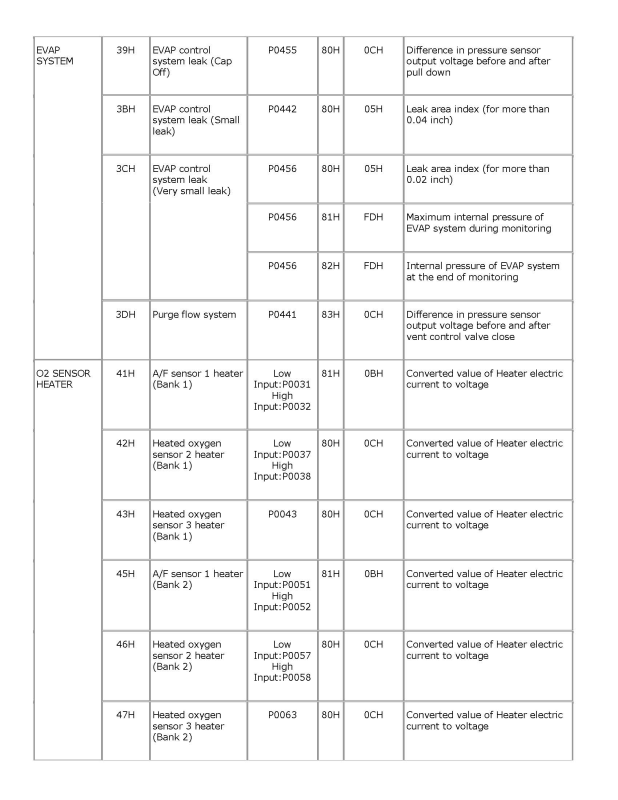

Fig 6: Mode $06 Data For Equator (6 Of 10)

G00525797

Courtesy of SUZUKI OF AMERICA CORP.

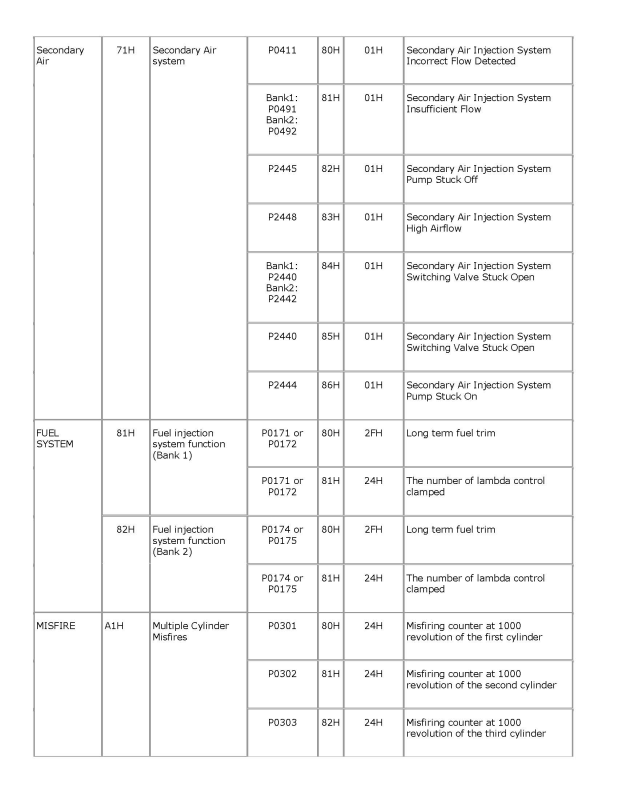

Fig 7: Mode $06 Data For Equator (7 Of 10)

G00525798

Courtesy of SUZUKI OF AMERICA CORP.

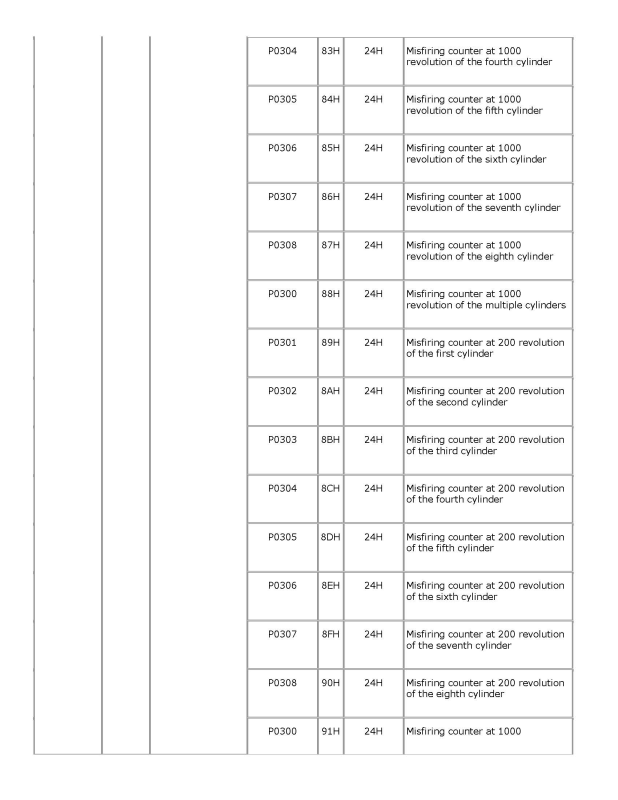

Fig 8: Mode $06 Data For Equator (8 Of 10)

G00525799

Courtesy of SUZUKI OF AMERICA CORP.

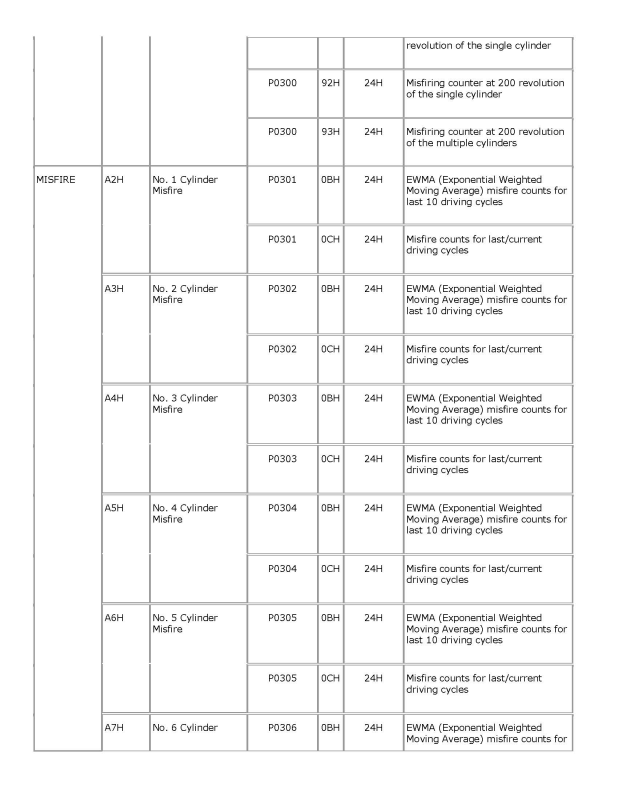

Fig 9: Mode $06 Data For Equator (9 Of 10)

G00525800

Courtesy of SUZUKI OF AMERICA CORP.

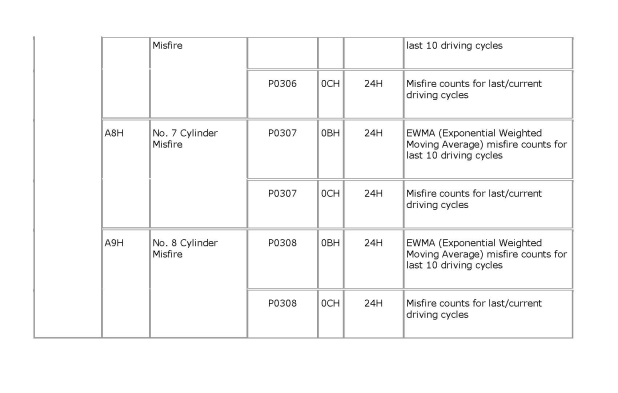

Fig 10: Mode $06 Data For Equator (10 Of 10)

G00525801

Courtesy of SUZUKI OF AMERICA CORP.
