General Description
>>
Cross-Sectional View
Cross-Sectional View

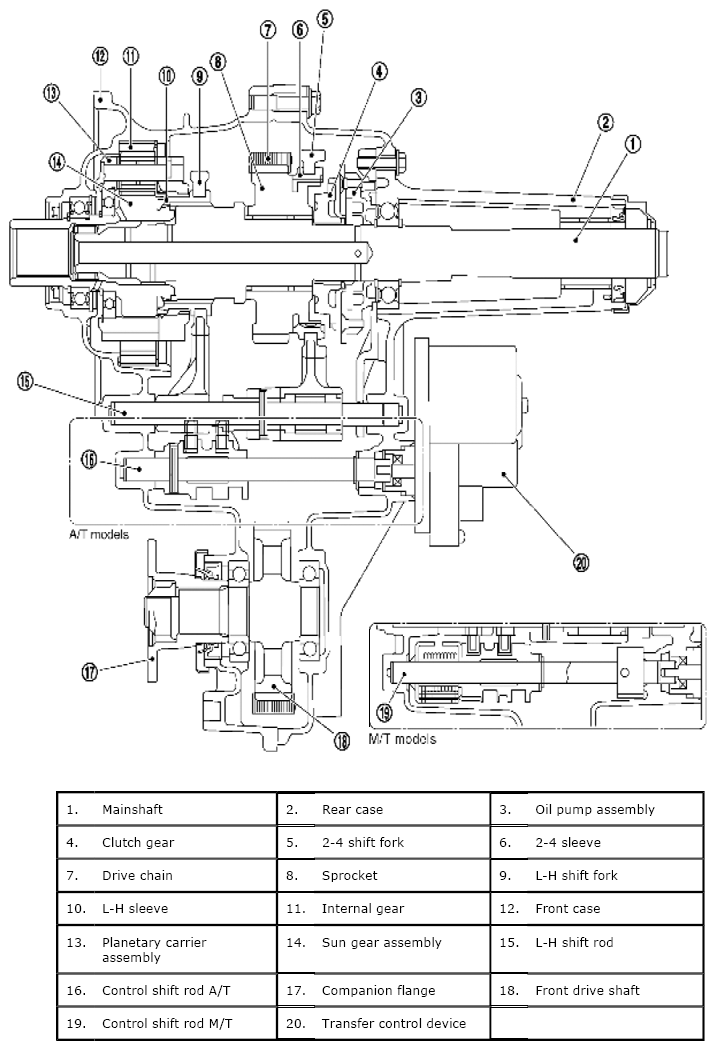

Fig 1: Cross-Sectional View Of 4WD System
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
