Home >> Suzuki >> 2011 >> Grand Vitara Base >> Repair and Diagnosis >> Electrical >> Body Electrical >> Wiring Systems >> Reassembling Note for Wiring Harness >> Around Engine

Around Engine

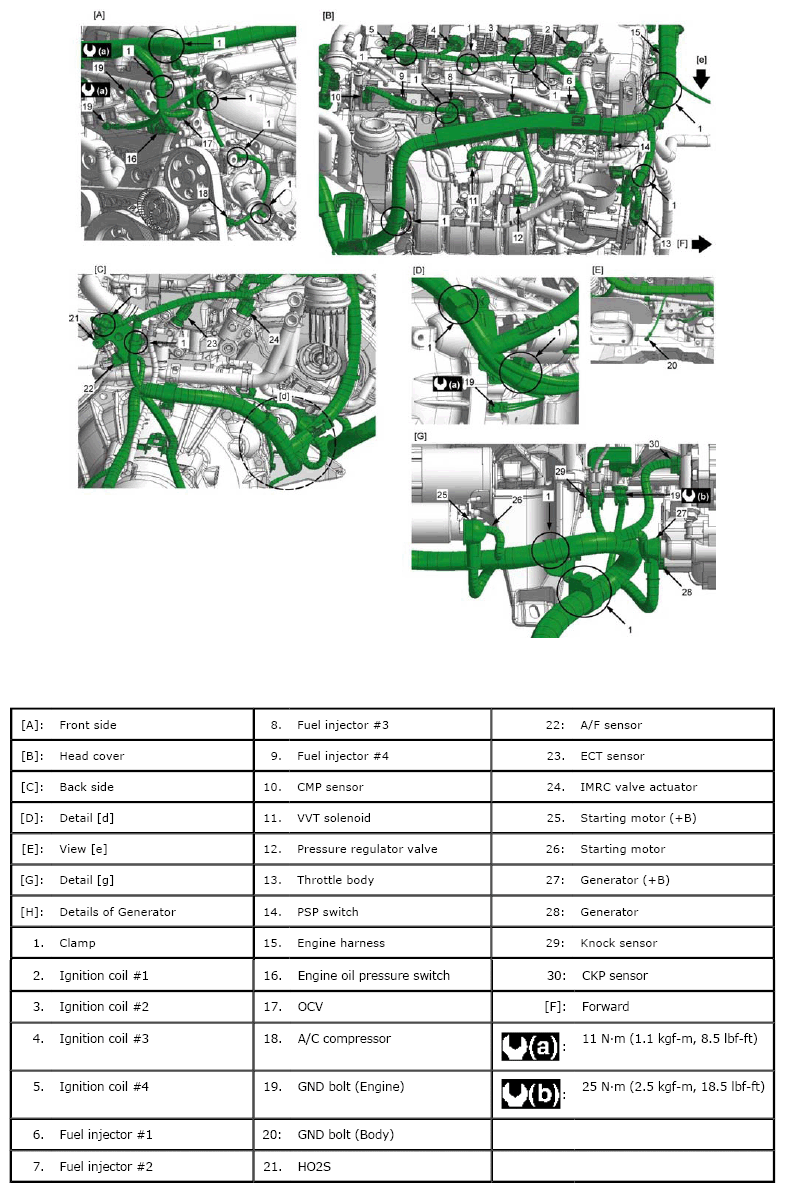

Fig 1: Engine Harness Connector - J24B With Torque Specifications

G06499743

Courtesy of SUZUKI OF AMERICA CORP.
