Generator Components
Generator Components

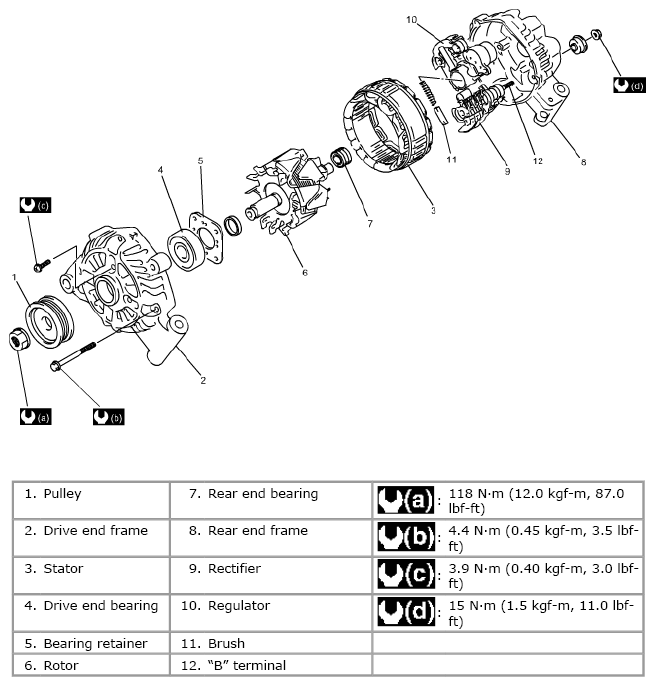

Fig 1: Generator Replacement Components With Torque Specifications (J24B)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
