Generator Inspection: Stator

Using ohmmeter (1), check continuity between all pairs of leads (2). If there is no continuity between any lead pairs, replace stator.

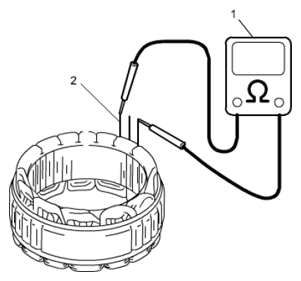

Fig 1: Checking Continuity Between Pairs Of Leads
Courtesy of SUZUKI OF AMERICA CORP.
Using ohmmeter (1), check that there is no continuity between any of coil leads (2) and stator core (3). If there is continuity, replace stator.

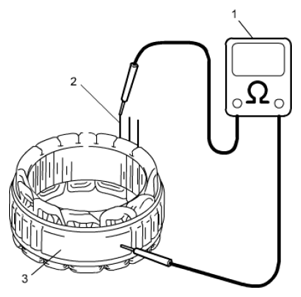

Fig 2: Checking Continuity Between Coil Leads And Stator Core
Courtesy of SUZUKI OF AMERICA CORP.
