Fuel System Components
Fuel System Components

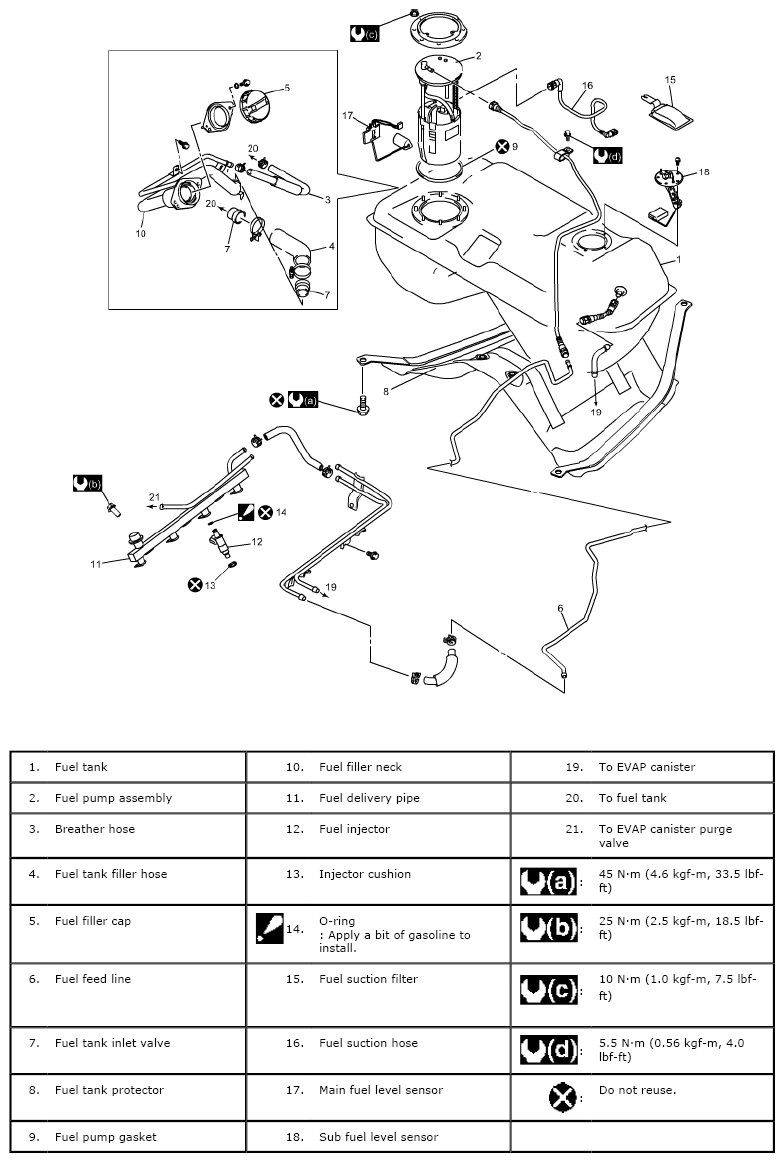

Fig 1: Fuel System Replacement Components With Torque Specifications
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
